V94-G

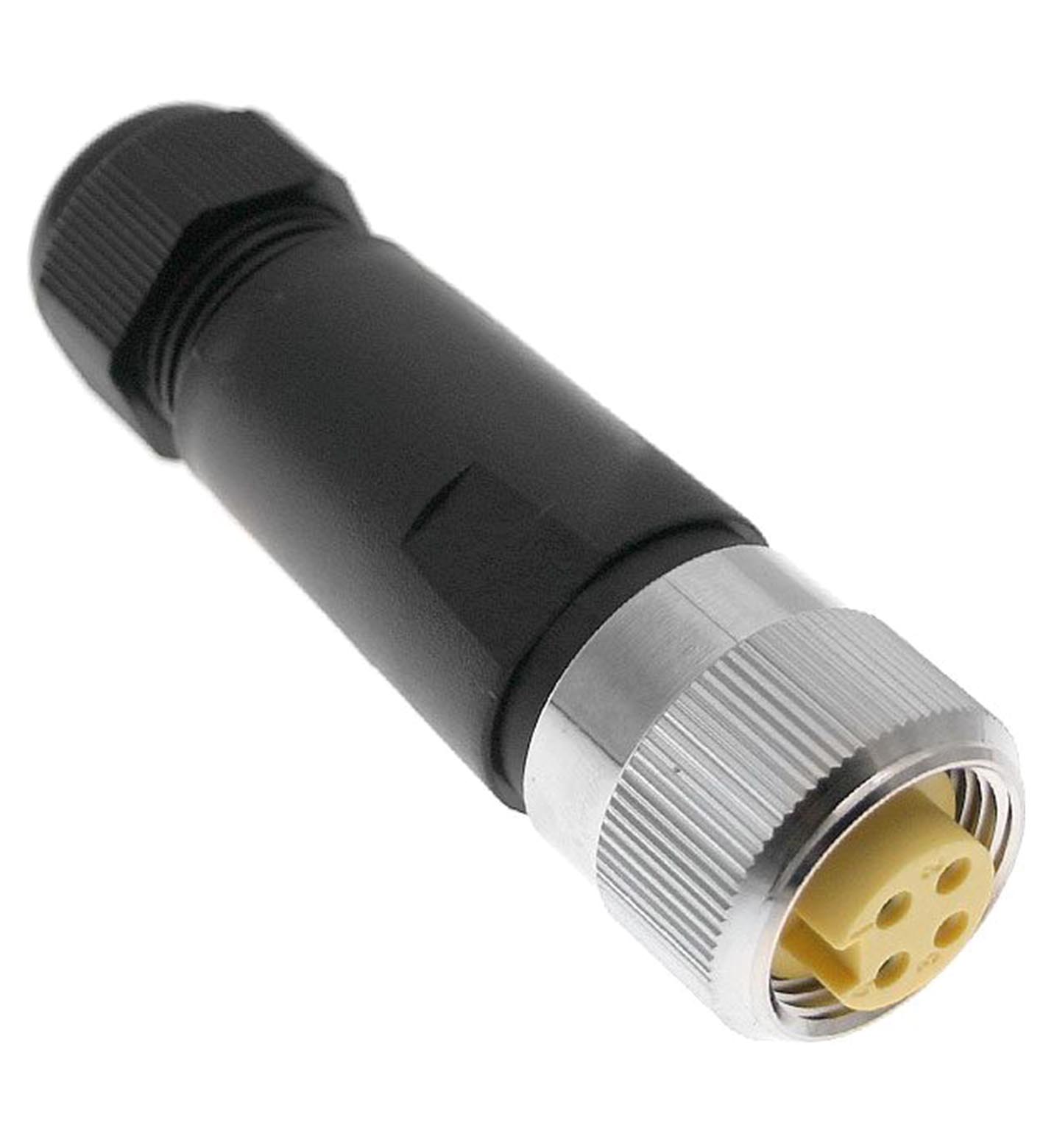

Female connector, field-attachable. Female connector, 7/8" - 16 UN2B, 4-pin, field attachable. Number of pins: 4. Connection 1: socket. Construction type 1: straight. Threading 1: 7/8 inch. Operating...

Female connector, field-attachable. Female connector, 7/8" - 16 UN2B, 4-pin, field attachable. Number of pins: 4. Connection 1: socket. Construction type 1: straight. Threading 1: 7/8 inch. Operating voltage: max. 600 V. Operating current: max. 15 A. Volume resistance: < 5 mΩ. UL approval: cULus Listed, General Purpose. Ambient temperature: -40 ... 90 °C (-40 ... 194 °F). Degree of protection: IP67. Connection: 1 x 7/8 inch - 16 UN2B ; Socket, straight , screw terminal for 14 - 22 AWG. Material: . Contactsgold plated Cu alloyBodyPolyamide (PA)Slotted nutblack anodized aluminumSleeve connectoryellow PVC: . Contacts: gold plated Cu alloy. Body: Polyamide (PA). Slotted nut: black anodized aluminum. Sleeve connector: yellow PVC. Cable: . Sheath diameter5 ... 13 mm: . Sheath diameter: 5 ... 13 mm. Mass: 69.75 g

Brand	Pepperl Fuchs
Lifecycle status	active
