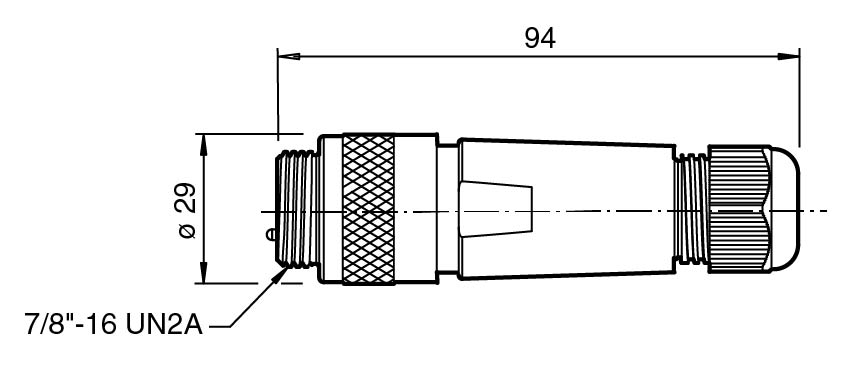

V94-G-SE

Field-attachable male connector. Male connector, 7/8" - 16 UN2A, 4-pin, field attachable. Number of pins: 4. Connection 1: plug. Construction type 1: straight. Threading 1: 7/8 inch. Operating voltage...

Field-attachable male connector. Male connector, 7/8" - 16 UN2A, 4-pin, field attachable. Number of pins: 4. Connection 1: plug. Construction type 1: straight. Threading 1: 7/8 inch. Operating voltage: max. 600 V. Operating current: max. 15 A. UL approval: cULus Listed, General Purpose. Ambient temperature: -40 ... 90 °C (-40 ... 194 °F). Degree of protection: IP67. Connection: 1 x 7/8 inch-16 UN - 2A ; plug, straight screw terminal for 14 - 22 AWG. Material: . Contactsgold plated Cu alloyBodyPolyamide (PA)Slotted nutnickel-plated brassSleeve connectoryellow PVC: . Contacts: gold plated Cu alloy. Body: Polyamide (PA). Slotted nut: nickel-plated brass. Sleeve connector: yellow PVC. Cable: . Sheath diameter5 ... 13 mm: . Sheath diameter: 5 ... 13 mm. Mass: 72 g. Note: plug thread Length: 3.5 mm Voltage rating is 600V or the rating of cable, whichever is less

Brand	Pepperl Fuchs
Lifecycle status	active
