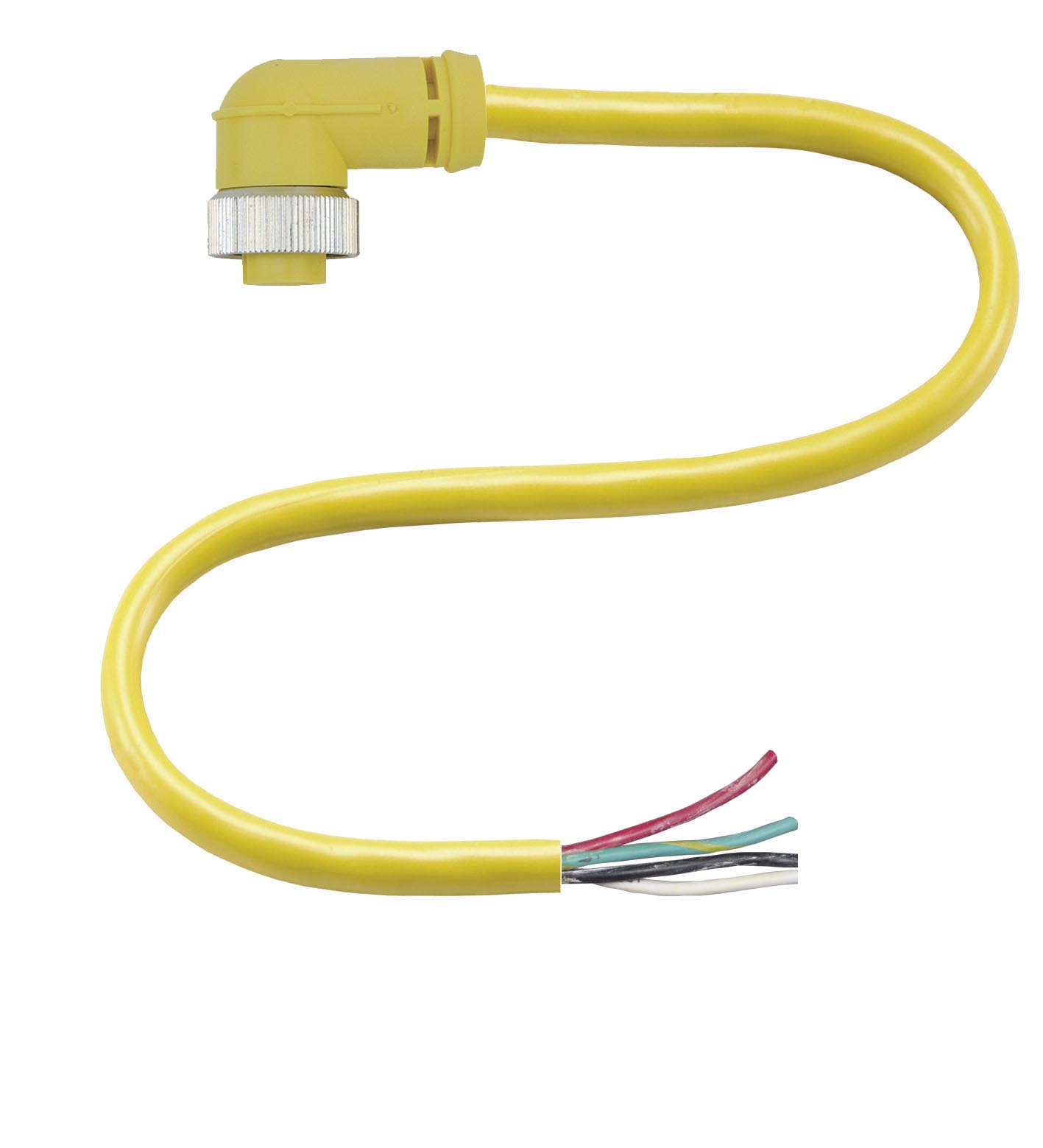

V94-W-YE4M-STOOW

Female connector. Female cordset, 7/8", 4-pin, STOOW cable. Number of pins: 4. Connection 1: socket. Construction type 1: angled. Threading 1: 7/8 inch. Connection 2: cable end. Operating voltage: max...

Female connector. Female cordset, 7/8", 4-pin, STOOW cable. Number of pins: 4. Connection 1: socket. Construction type 1: angled. Threading 1: 7/8 inch. Connection 2: cable end. Operating voltage: max. 600 V. Test voltage: 1500 V. Operating current: 10 A. Volume resistance: < 5 mΩ. UL approval: cULus Listed, General Purpose. Ambient temperature: -40 ... 105 °C (-40 ... 221 °F). Degree of protection: IP67. Material: . ContactsCu alloy gold platedBodyPVC, yellowCablePVCSlotted nutnickel-plated brassCore insulationPVC: . Contacts: Cu alloy gold plated. Body: PVC, yellow. Cable: PVC. Slotted nut: nickel-plated brass. Core insulation: PVC. Cable: fine-strand, flexible. Sheath diameter∅ 10.7 mmBending radius10 x cable diameterColoryellowCores4 x 1.5 mm2 (16 AWG)LengthL4 m: . Sheath diameter: ∅ 10.7 mm. Bending radius: 10 x cable diameter. Color: yellow. Cores: 4 x 1.5 mm2 (16 AWG). Length: 4 m. Mass: 684.5 g. Note: STOOW UL Standard

Brand	Pepperl Fuchs
Lifecycle status	active
