V95-G-YE2M-PVC-22

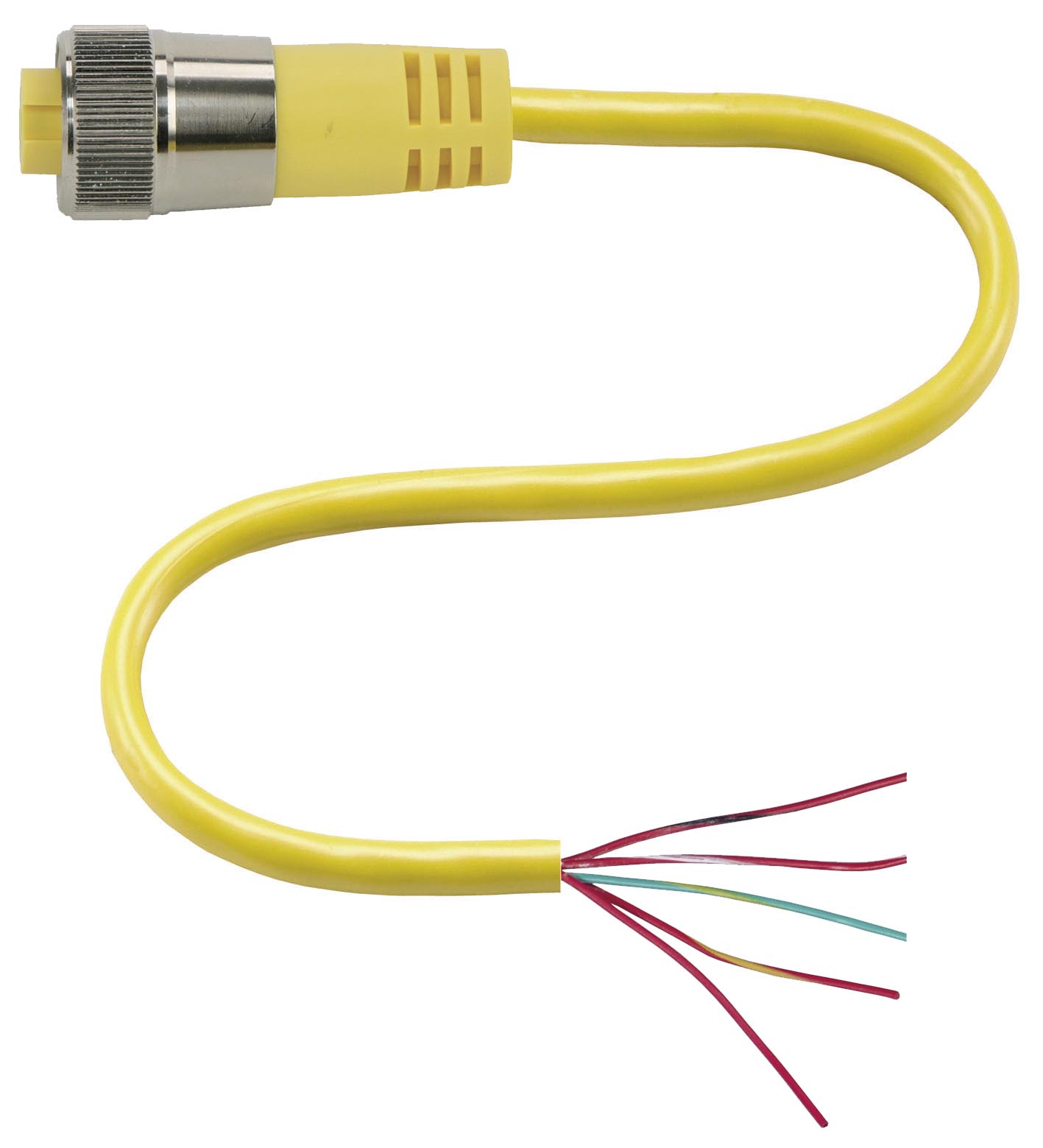

Connection cable. Female cordset, 7/8" - 16 UNF, 5-pin, PVC cable. Number of pins: 5. Connection 1: socket. Construction type 1: straight. Threading 1: 7/8 inch. Connection 2: cable end. Operating vol...

Connection cable. Female cordset, 7/8" - 16 UNF, 5-pin, PVC cable. Number of pins: 5. Connection 1: socket. Construction type 1: straight. Threading 1: 7/8 inch. Connection 2: cable end. Operating voltage: max. 300 V. Operating current: max. 4 A. Ambient temperature: -25 ... 105 °C (-13 ... 221 °F). Pollution degree: 3. Degree of protection: IP68. Material: . Contactsgold plated copper alloyBodyPVCCablePVCSlotted nutnickel-plated brass: . Contacts: gold plated copper alloy. Body: PVC. Cable: PVC. Slotted nut: nickel-plated brass. Cable: fine-strand, flexible. Sheath diameter∅ 5.7 mmColoryellowCores5 x 0.34 mm2LengthL2 m: . Sheath diameter: ∅ 5.7 mm. Color: yellow. Cores: 5 x 0.34 mm2. Length: 2 m. Mass: 153 g

Brand	Pepperl Fuchs
Lifecycle status	active
