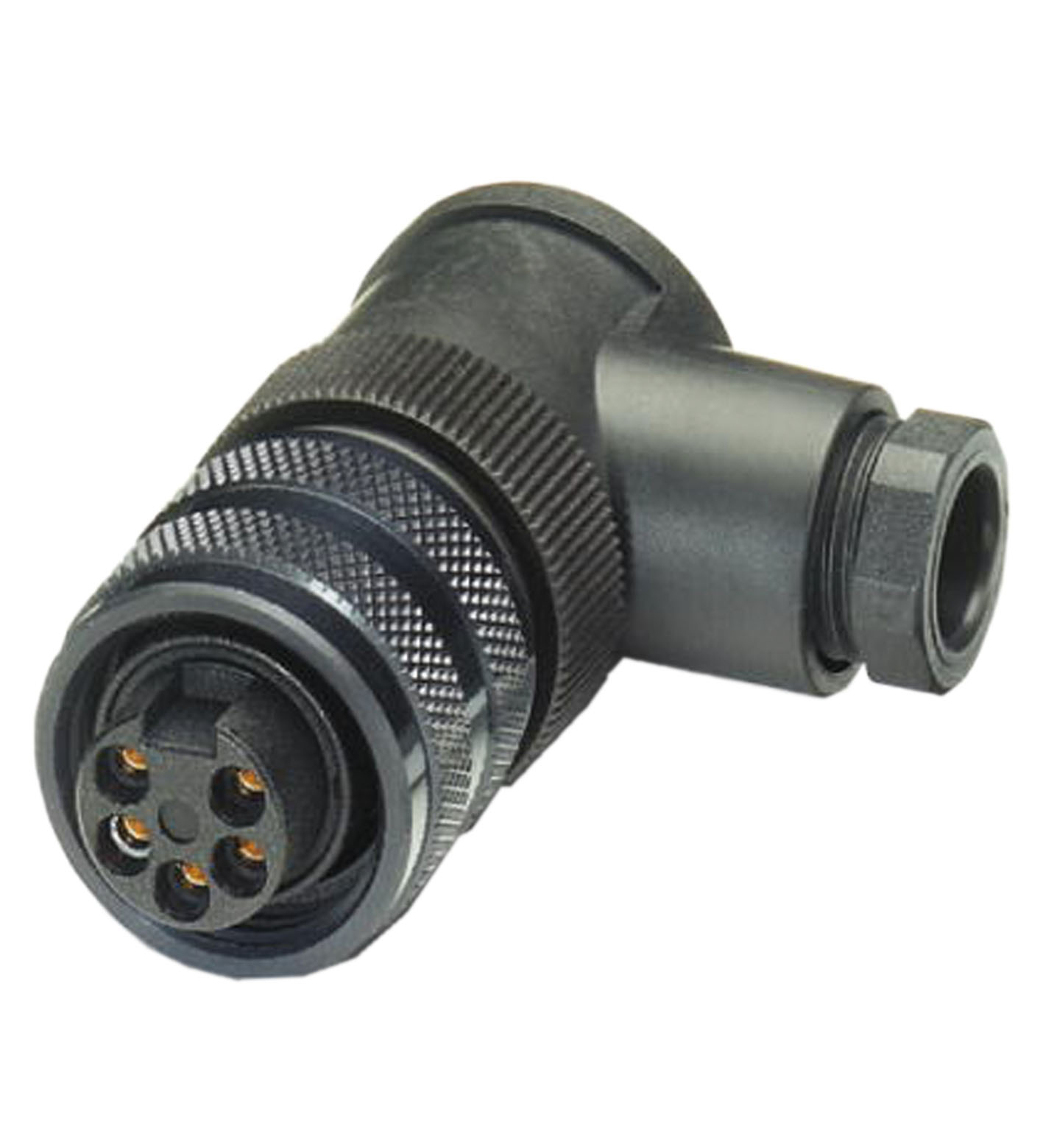

V95-W

Female cordset, field attachable. Female cordset, field attachable. Number of pins: 5. Connection 1: socket. Construction type 1: angled. Threading 1: 7/8 inch. UL File Number: E363587. Operating volt...

Female cordset, field attachable. Female cordset, field attachable. Number of pins: 5. Connection 1: socket. Construction type 1: angled. Threading 1: 7/8 inch. UL File Number: E363587. Operating voltage: max. 250 V. Operating current: max. 9 A. Volume resistance: < 5 mΩ. Standard conformity: . Degree of protectionEN 60529:2000: . Degree of protection: EN 60529:2000. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP67. Connection: 1 x 7/8"-16 UN socket, straightscrew terminals for max. 1.5 mm2. Material: . ContactsCuZn, nickel-platedContact surfaceAuBodyPBTSlotted nutaluminum, black anodized: . Contacts: CuZn, nickel-plated. Contact surface: Au. Body: PBT. Slotted nut: aluminum, black anodized. Cable: . Sheath diameter6 ... 8 mm: . Sheath diameter: 6 ... 8 mm. Mass: 50 g

Brand	Pepperl Fuchs
Lifecycle status	active
