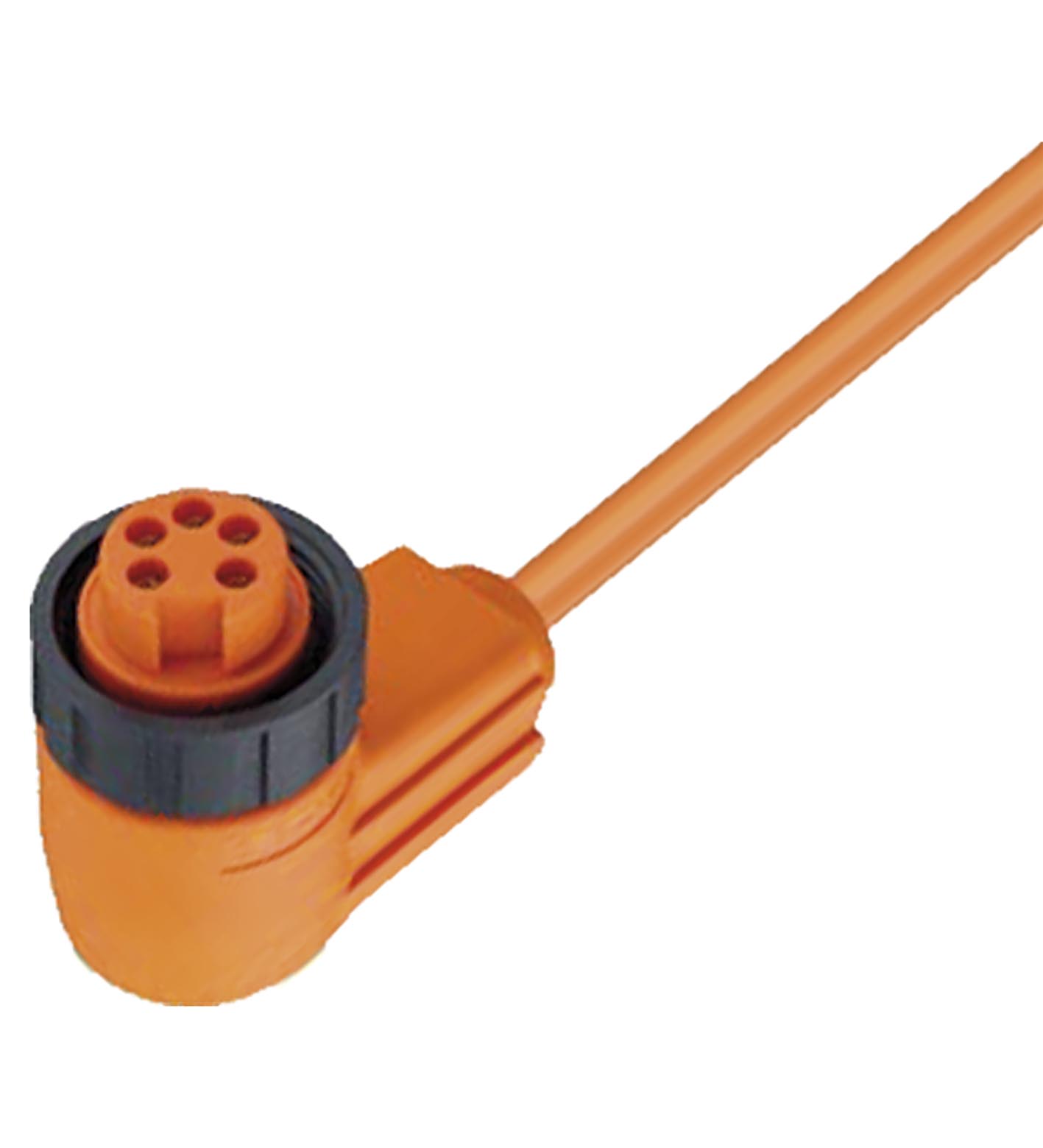

V95-W-5M-PVC

Female connector. Female cordset, 7/8", 5-pin, PVC cable. Number of pins: 5. Connection 1: socket. Construction type 1: angled. Threading 1: 7/8 inch. Connection 2: cable end. Operating voltage: max....

Female connector. Female cordset, 7/8", 5-pin, PVC cable. Number of pins: 5. Connection 1: socket. Construction type 1: angled. Threading 1: 7/8 inch. Connection 2: cable end. Operating voltage: max. 250 V AC/DC. Operating current: max. 9 A. Volume resistance: < 5 mΩ. Ambient temperature: 5 ... 90 °C (41 ... 194 °F) movable installation-40 ... 90 °C (-40 ... 194 °F) fixed installation. Pollution degree: 3. Degree of protection: IP68 (2 hrs at 10 bar). Material: . ContactsCuZn, silver-platedContact surfaceAuBodyTPU, orangeCablePVCSlotted nutPA: . Contacts: CuZn, silver-plated. Contact surface: Au. Body: TPU, orange. Cable: PVC. Slotted nut: PA. Cable: . Sheath diameter∅ 6.8 mmBending radius> 5 x cable diameter, fixed installation > 10 x cable diameter, movable installationColororangeCores5 x 0.5 mm2Conductor construction16 x 0.2 mm ∅LengthL5 m: . Sheath diameter: ∅ 6.8 mm. Bending radius: > 5 x cable diameter, fixed installation > 10 x cable diameter, movable installation. Color: orange. Cores: 5 x 0.5 mm2. Conductor construction: 16 x 0.2 mm ∅. Length: 5 m. Mass: 371.7 g

Brand	Pepperl Fuchs
Lifecycle status	active
