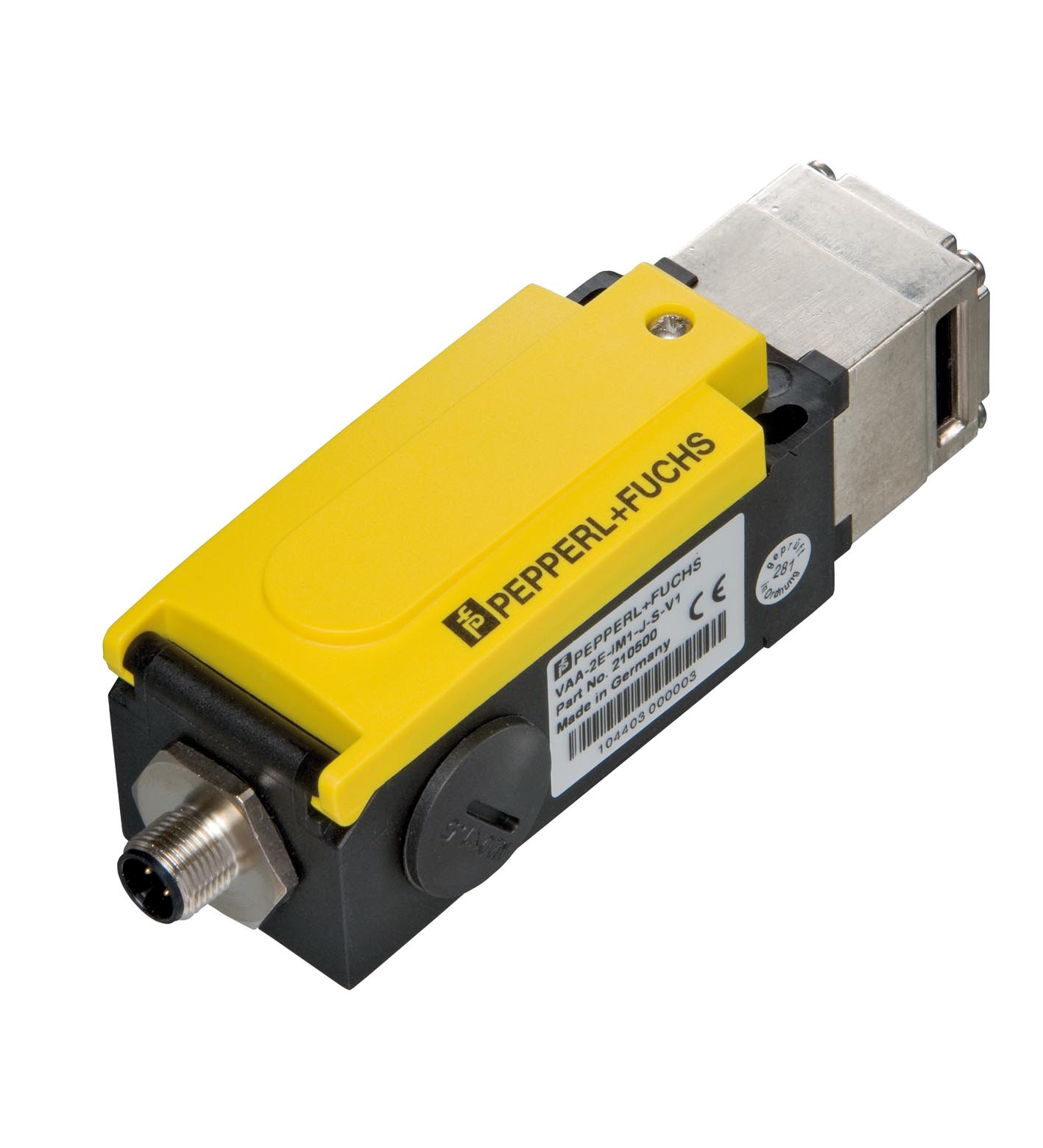

VAA-2E-IM1-J-S-V1

AS-Interface safety switch. AS-Interface safety switch. Node type: Safety node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.0. Profile: S-7.B. IO code7ID codeBID1 codeFID2 c...

AS-Interface safety switch. AS-Interface safety switch. Node type: Safety node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.0. Profile: S-7.B. IO code7ID codeBID1 codeFID2 codeE: . IO code: 7. ID code: B. ID1 code: F. ID2 code: E. UL File Number: E179102. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 45 mA. Rated insulation voltage: 50 V. Number/Type: 2 safety-related inputs:normally-closed contact 1 normally-closed contact 2. Supply: from AS-Interface. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013+A1:2019 IEC 60947-5-3:1999: . Directive 2014/30/EU: EN 62026-2:2013+A1:2019 IEC 60947-5-3:1999. Degree of protection: EN 60529:2000. AS-Interface: EN 62026-2:2013+A1:2019. Functional safety: DIN EN 954-1, EN ISO 13849-1 (up to PLd). Ambient temperature: -20 ... 55 °C (-4 ... 131 °F). approach speed: max. 20 m/min. Operating force: 25 N. Extraction force: 25 N. retention force: 10 N. insertion depth: . approach direction lateraldetected min. distance: 24.5 mm permissible caster: 5 mmapproach direction from abovedetected min. distance: 24.5 mm permissible caster: 5 mm: . approach direction lateral: detected min. distance: 24.5 mm permissible caster: 5 mm. approach direction from above: detected min. distance: 24.5 mm permissible caster: 5 mm. Degree of protection: IP67. Connection: connector M12 x 1. Material: . HousingFiberglass-reinforced thermoplasticactuating headmetalcamstainless steel: . Housing: Fiberglass-reinforced thermoplastic. actuating head: metal. cam: stainless steel. Mass: approx. 0.16 kg. Dimensions: . Height42 mmWidth40 mmLength123 mm: . Height: 42 mm. Width: 40 mm. Length: 123 mm. Life span: 2 x 106 switching cycles

Brand	Pepperl Fuchs
Lifecycle status	active
