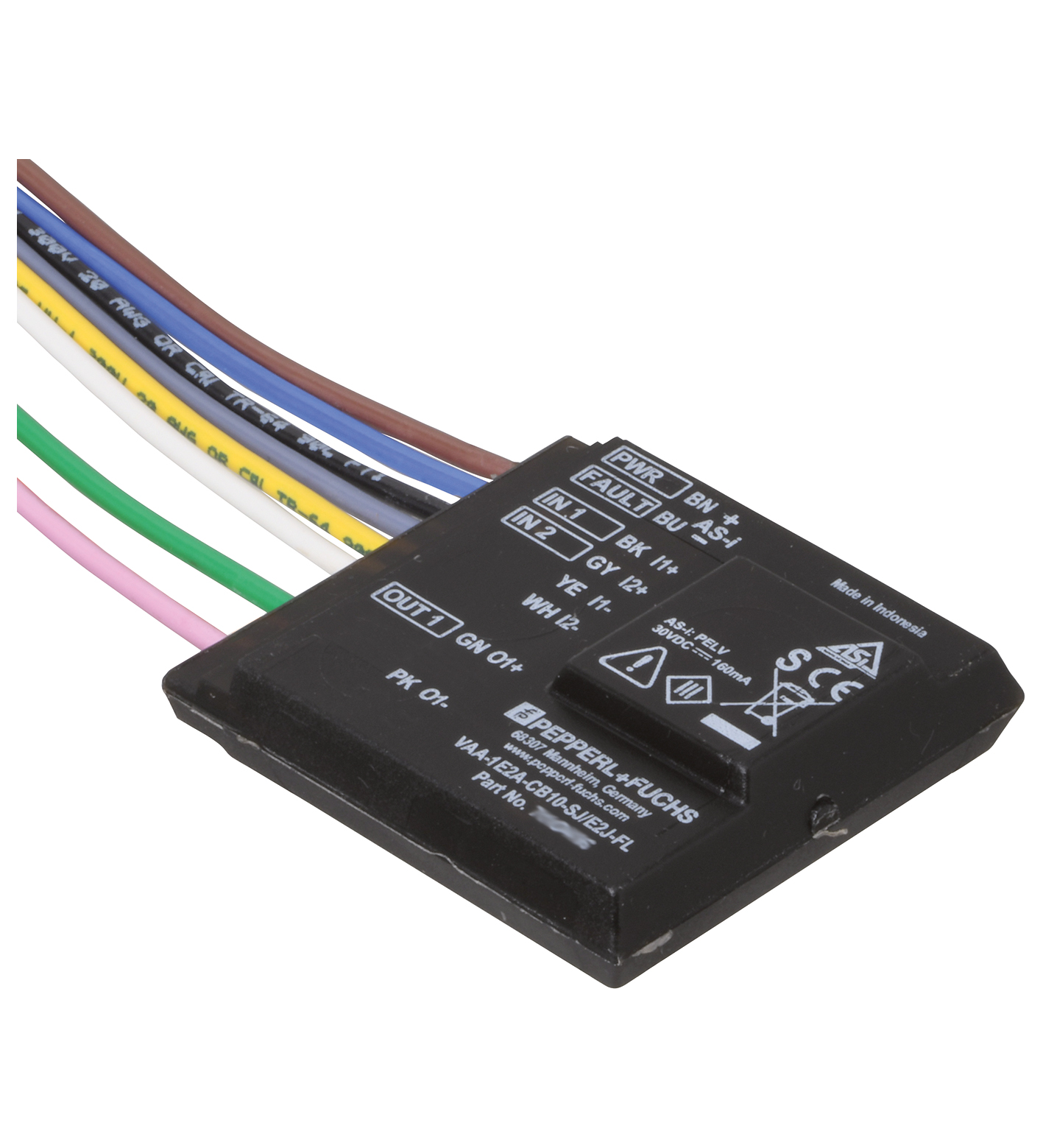

VAA-2E1A-CB10-SJ/E2J-FL

AS-Interface safety module. CB10 safety module, 2 safety-related inputs and 1 conventional electronic output. Node type: Safety-Slave. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. UL File Number: E223772. LED FAULT: error display; LED redred: communication error or address is 0. LED PWR: AS-Interface voltage; green LEDgreen: voltage OKflashing green: address 0. LED IN: switching state (input); 2 LED yellow. LED OUT: Switching state (output); LED yellow. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface (PELV). Rated operating current: ≤ 40 mA (without inputs/outputs)/max. 160 mA. Protection class: III. Surge protection: Ue: Over voltage category III, safe isolated power supplies (PELV). Rated insulation voltage: 32 V. Pulse withstand voltage: 0.8 kV. Number/Type: 2 safety-related inputs for mechanical contacts, crossed-circuit monitored: 2 single-channel contacts: Up to category 2/PLc in accordance with ISO 13849-1 or SIL 1 in accordance with IEC 62061 1 two-channel contact: Up to category 4/PLe in accordance with ISO 13849-1 or SIL 3 in accordance with IEC 62061. Supply: from AS-Interface. Voltage: 20 ... 30 V DC pulsed. Current: input current limited ≤ 15 mA,short-circuit protected. Number/Type: 1 conventional electronic output, PNP , overload and short-circuit resistant. Supply: from AS-Interface. Voltage: (UASI - 7.0 V) ≤ UOUT ≤ UASI. Current: ≤ 100 mA. Electromagnetic compatibility: . Directive 2014/30/EUIEC 62026-2:2013 EN 61000-6-2:2005 EN 61000-6-4:2007 EN 61326-1:2013: . Directive 2014/30/EU: IEC 62026-2:2013 EN 61000-6-2:2005 EN 61000-6-4:2007 EN 61326-1:2013. Machinery Directive: . Directive 2006/42/ECEN ISO 13849-1:2015 EN ISO 13849-2:2012 EN 62061:2005 + AC:2010 + A1:2013 + A2:2015: . Directive 2006/42/EC: EN ISO 13849-1:2015 EN ISO 13849-2:2012 EN 62061:2005 + AC:2010 + A1:2013 + A2:2015. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. Electrical safety: IEC 61140:2009. Emitted interference: EN 61000-6-4:2007. AS-Interface: EN 62026-2:2013. Noise immunity: IEC 62026-2:2013 EN 61326-3-1:2017 EN 61000-6-2:2005. Functional safety: EN ISO 13849-1:2015 EN ISO 13849-2:2012 EN 62061:2005 + AC:2010 + A1:2013 + A2:2015. Profile: S-7.B. IO code: 7. ID code: B. ID1 code: F. ID2 code: 0. Data bits (function via AS-Interface): InputOutput. D0 dyn. safety code 1 OUT 1D1 dyn. safety code 1 -D2 dyn. safety code 2 -D3 dyn. safety code 2 -: . D0: dyn. safety code 1 OUT 1. D1: dyn. safety code 1 -. D2: dyn. safety code 2 -. D3: dyn. safety code 2 -. Parameter bits (programmable via AS-i): function. P0not usedP1not usedP2not usedP3not used: . P0: not used. P1: not used. P2: not used. P3: not used. UL approval: Protection class IP20 is not included in the UL approval. The protection class is tested by Pepperl+Fuchs.. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Relative humidity: 85 % , noncondensing. Climatic conditions: For indoor use only. Altitude: ≤ 5000 m above MSL. Shock and impact resistance: 30 g, 11 ms in 6 spatial directions, 3 shocks 10 g, 16 ms in 6 spatial directions, 1000 shocks. Vibration resistance: 0.35 mm 10 ... 57 Hz , 5 g 57 ... 2000 Hz, 10 cycles. Pollution degree: 2. Degree of protection: IP20 according to EN 60529. Connection: 200 mm, PVC cable 0.5 mm2. Material: . Contactsopen conductor ends with connector sleevesHousingPolyamide hot-melt adhesive: . Contacts: open conductor ends with connector sleeves. Housing: Polyamide hot-melt adhesive. Mass: 28 g. Dimensions: . Height10.1 mmWidth36 mmLength39.5 mm: . Height: 10.1 mm. Width: 36 mm. Length: 39.5 mm. Note: This device is maintenance-free. If the device is used in a manner not specified by the manufaturer, the protection provided by the device may be impaired.

Brand	Pepperl Fuchs
Lifecycle status	active
