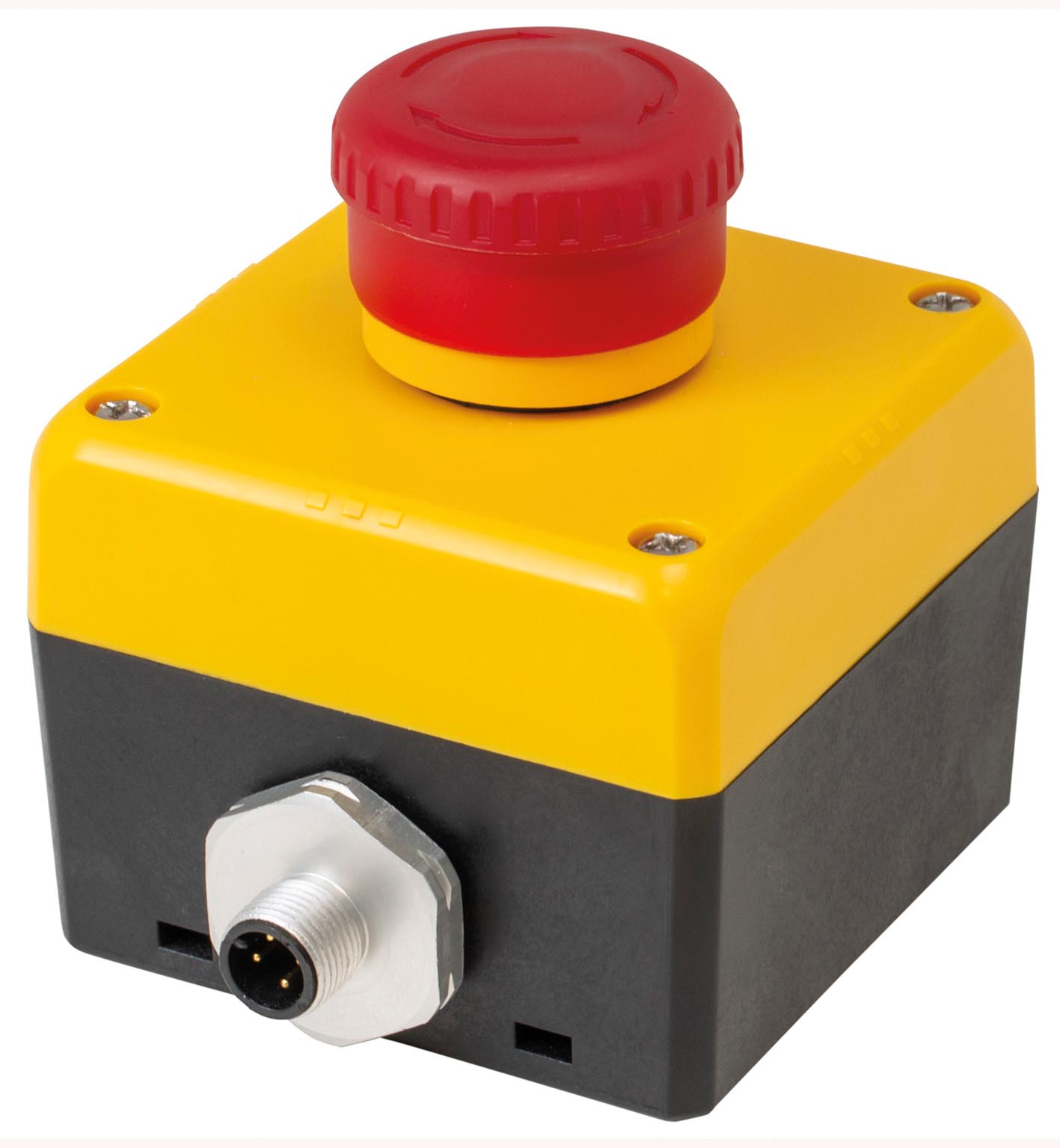

VAA-2E1A-F85A/CB10-S-V1

AS-Interface EMERGENCY STOP button. AS-Interface EMERGENCY STOP button. Node type: Safety node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. Profile: S-7.B. IO code7ID cod...

AS-Interface EMERGENCY STOP button. AS-Interface EMERGENCY STOP button. Node type: Safety node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. Profile: S-7.B. IO code7ID codeBID1 codeFID2 code0: . IO code: 7. ID code: B. ID1 code: F. ID2 code: 0. UL File Number: E305142. Safety Integrity Level (SIL): SIL 3. Performance level (PL): PL e. Category: Cat. 4. Reaction time: < 300 µs. MTTFd: no significant contribution to MTTFd of the overall system. PFHd: no significant contribution to PFH of the overall system. B10d: 250000 cycles. Design lifetime: 20 a. Button: . EMERGENCY STOPilluminated: . EMERGENCY STOP: illuminated. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 80 mA. Protection class: III. Surge protection: Ue: Over voltage category III, safe isolated power supplies (PELV). Rated insulation voltage: 32 V. Pulse withstand voltage: 0.8 kV. Electromagnetic compatibility: . Directive 2014/30/EUIEC 62026-2:2013 EN 61000-6-2:2005 EN 61000-6-4:2007 A1:2011-02 EN 61326-1:2013: . Directive 2014/30/EU: IEC 62026-2:2013 EN 61000-6-2:2005 EN 61000-6-4:2007 A1:2011-02 EN 61326-1:2013. Machinery Directive: . Directive 2006/42/ECEN ISO 13849-1:2015 EN ISO 13849-2:2012 EN 62061:2005 + AC:2010 + A1:2013 + A2:2015 EN 60947-5-5:1997+A1:2005+A11:2013+A2:2017: . Directive 2006/42/EC: EN ISO 13849-1:2015 EN ISO 13849-2:2012 EN 62061:2005 + AC:2010 + A1:2013 + A2:2015 EN 60947-5-5:1997+A1:2005+A11:2013+A2:2017. Degree of protection: EN 60529:2000. Electrical safety: IEC 61140:2009. Emitted interference: EN 61000-6-4:2007 A1:2011-02. AS-Interface: EN 62026-2:2013. Noise immunity: IEC 62026-2:2013 EN 61326-3-1:2017 EN 61000-6-2:2005. Functional safety: EN ISO 13849-1:2015 EN ISO 13849-2:2012 EN 62061:2005 + AC:2010 + A1:2013 + A2:2015 EN 60947-5-5:1997+A1:2005+A11:2013+A2:2017. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Relative humidity: 85 % , noncondensing. Climatic conditions: For indoor use only. Altitude: ≤ 5000 m above MSL. Shock and impact resistance: 30 g, 11 ms in 6 spatial directions, 3 shocks 10 g, 16 ms in 6 spatial directions, 1000 shocks. Vibration resistance: 0.35 mm 10 ... 57 Hz , 5 g 57 ... 2000 Hz, 10 cycles. Pollution degree: 2. Operating force: Push: 32 N Pull: 21 N Turn: 0.27 Nm Minimum for positive opening operation: 60 Nm. Operating distance: for positive opening operation: min. 4 mm maximal: 4.5 mm. Degree of protection: IP65. Connection: M12 round connector. Material: . HousingPolycarbonate: . Housing: Polycarbonate. Mass: 225 g. Dimensions: . Height91.5 mmWidth76 mmLength76 mm: . Height: 91.5 mm. Width: 76 mm. Length: 76 mm. Life span: > 250,000 switching operations

Brand	Pepperl Fuchs
Lifecycle status	active
