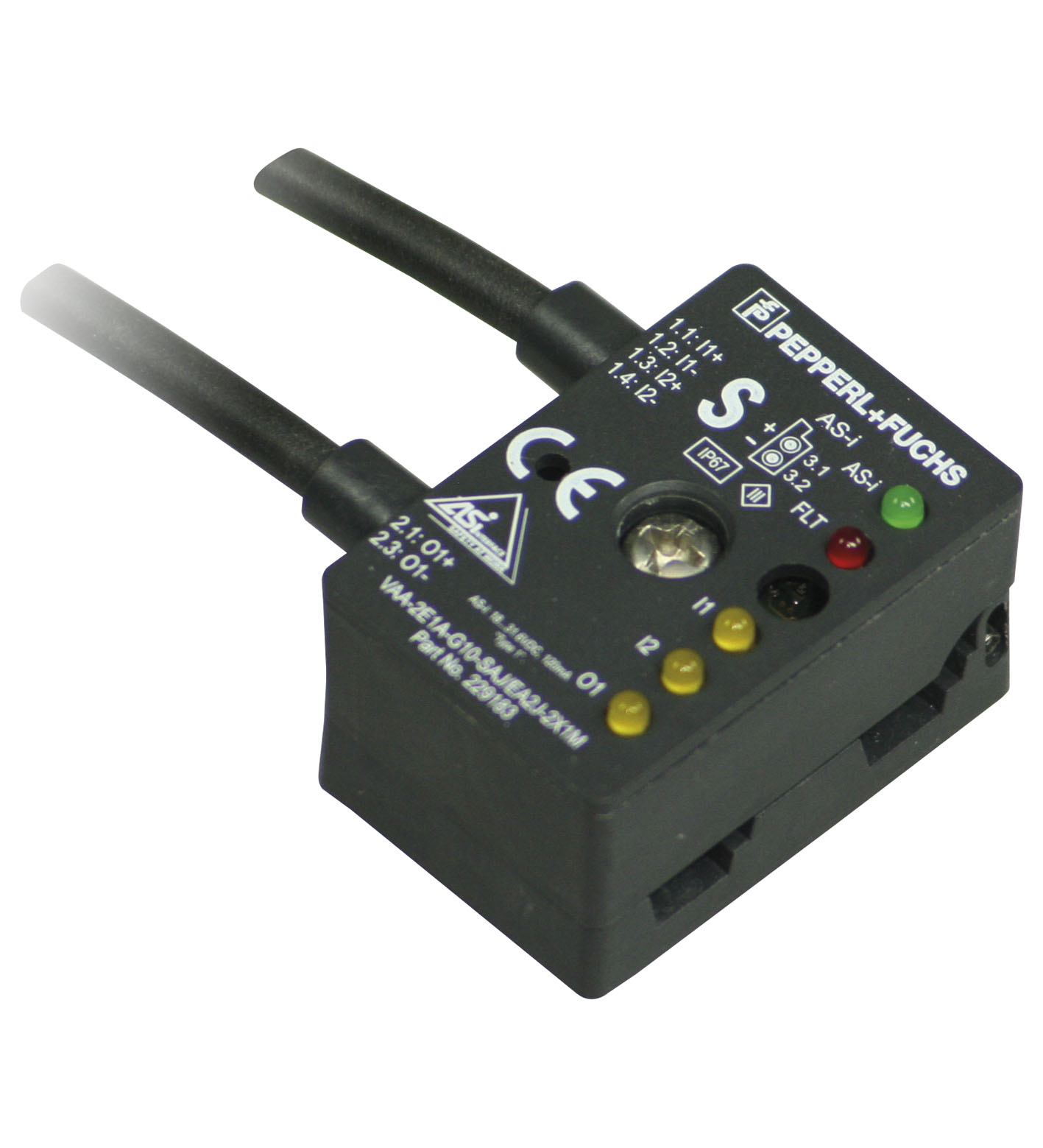

VAA-2E1A-G10-SAJ/EA2J-2X1M

AS-Interface safety module. G10 safety module, 2 safety-related inputs and 1 standard electronic output. Node type: Safety-Slave. AS-Interface specification: V3.0. Required gateway specification: ≥ V2...

AS-Interface safety module. G10 safety module, 2 safety-related inputs and 1 standard electronic output. Node type: Safety-Slave. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. UL File Number: E223772 "For use in NFPA 79 Applications only". LED FLT: error display; LED redred: communication error or address is 0. LED AS-i: AS-Interface voltage; green LEDgreen: voltage OKflashing green: address 0. LED IN: switching state (input); 2 LED yellow. LED OUT: Switching state (output); LED yellow. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface (PELV). Rated operating current: ≤ 90 mA. Protection class: III. Surge protection: overvoltage category III. Rated insulation voltage: 32 V. Pulse withstand voltage: 0.8 kV. Number/Type: 2 safety-related inputs for mechanical contacts, crossed-circuit monitored:2 single-channel contacts: up to category 2/PL c to ISO 13849-1 or1 2-channel contact: up to category 4/PL e to ISO 13849-1. Supply: from AS-Interface. Voltage: 20 ... 30 V DC pulsed. Current: input current limited ≤ 15 mA,short-circuit protected. Number/Type: 1 conventional electronic output, PNP. Supply: from AS-Interface. Voltage: (UASI - 7.0 V) ≤ UOUT ≤ UASI. Current: 50 mA , short-circuit/overload protected. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013 EN 61000-6-2:2005 EN 61000-6-4:2007: . Directive 2014/30/EU: EN 62026-2:2013 EN 61000-6-2:2005 EN 61000-6-4:2007. Machinery Directive: . Directive 2006/42/ECEN ISO 13849-1:2015 EN ISO 13849-2:2012 EN 62061:2005 + AC:2010 + A1:2013 + A2:2015: . Directive 2006/42/EC: EN ISO 13849-1:2015 EN ISO 13849-2:2012 EN 62061:2005 + AC:2010 + A1:2013 + A2:2015. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. Electrical safety: IEC 61140:2009. Emitted interference: EN 61000-6-4:2007. AS-Interface: EN 62026-2:2013. Noise immunity: IEC 62026-2:2013 EN 62061:2005 EN 61000-6-2:2005. Functional safety: EN ISO 13849-1:2015 EN ISO 13849-2:2012 EN 62061:2005 + AC:2010 + A1:2013 + A2:2015. Profile: S-7.B. IO code: 7. ID code: B. ID1 code: F. ID2 code: 0. Data bits (function via AS-Interface): InputOutput. D0 dyn. safety code 1 OUT 1D1 dyn. safety code 1 -D2 dyn. safety code 2 -D3 dyn. safety code 2 -: . D0: dyn. safety code 1 OUT 1. D1: dyn. safety code 1 -. D2: dyn. safety code 2 -. D3: dyn. safety code 2 -. Parameter bits (programmable via AS-i): function. P0communication monitoringP0 = 1 (default settings), monitoring = ON, i.e. if communication fails, the outputs are de-energised P0 = 0, monitoring = OFF, if communication fails, the outputs maintain their conditionP1not usedP2not usedP3not used: . P0: communication monitoringP0 = 1 (default settings), monitoring = ON, i.e. if communication fails, the outputs are de-energised P0 = 0, monitoring = OFF, if communication fails, the outputs maintain their condition. P1: not used. P2: not used. P3: not used. UL approval: cULus Listed, Type 1 enclosure. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -25 ... 80 °C (-13 ... 176 °F). Relative humidity: < 95 %. Altitude: ≤ 2000 m above MSL. Shock and impact resistance: 30 g, 11 ms in 6 spatial directions 3 shocks10 g, 16 ms in 6 spatial directions 1000 shocks. Vibration resistance: 0.75 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles. Pollution degree: 3. Degree of protection: IP67This protection class is achieved by using the AS-Interface flat cable VAZ-FK-S-YE. Connection: AS-Interface: AS-Interface flat cable Inputs/outputs: open conductor ends. Material: . Contactsopen conductor ends with connector sleevesHousingPBTCablePURMounting screwStainless steel 1.4305 / AISI 303: . Contacts: open conductor ends with connector sleeves. Housing: PBT. Cable: PUR. Mounting screw: Stainless steel 1.4305 / AISI 303. Cable: . Sheath diameter∅4,3 mmBending radius> 5 x cable diameter, fixed installation > 10 x cable diameter, movable installation not appropriate for conveyor chainsColorblackCores4 x 0.34 mm2LengthL1 m: . Sheath diameter: ∅4,3 mm. Bending radius: > 5 x cable diameter, fixed installation > 10 x cable diameter, movable installation not appropriate for conveyor chains. Color: black. Cores: 4 x 0.34 mm2. Length: 1 m. Mass: 200 g. Tightening torque, fastening screws: 1.65 Nm. Dimensions: . Height21.5 mmWidth27.7 mmLength40.5 mm: . Height: 21.5 mm. Width: 27.7 mm. Length: 40.5 mm
