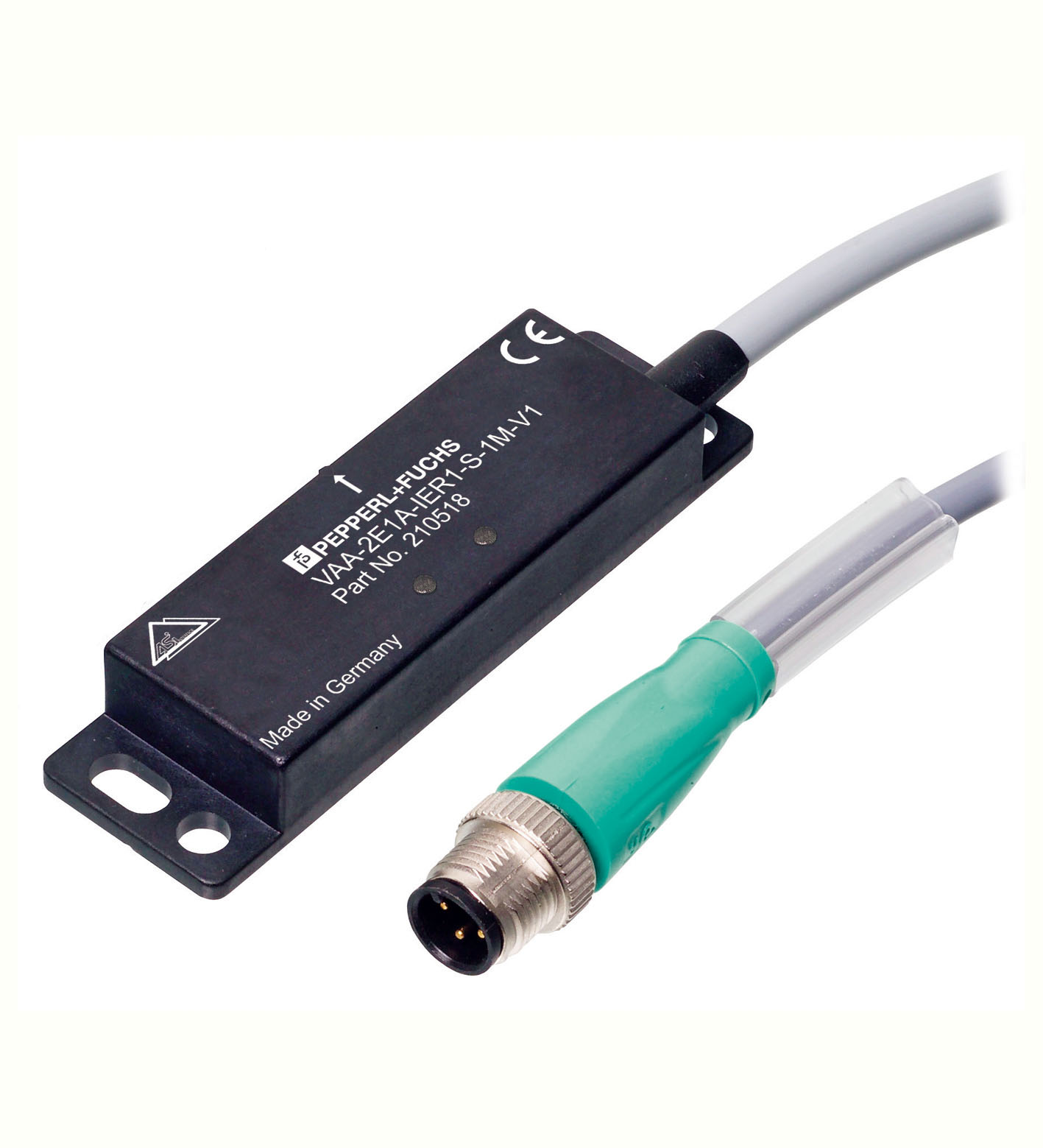

VAA-2E1A-IER1-S-1M-V1

Read head and evaluation unit. Reed safety switch for non-contact AS-Interface safety switches. Detection type: magnetic. assured start-up distance: 9 mm. assured release distance: max. 70 mm. Center...

Read head and evaluation unit. Reed safety switch for non-contact AS-Interface safety switches. Detection type: magnetic. assured start-up distance: 9 mm. assured release distance: max. 70 mm. Center offset: ± 2.5 mm at distance s = 3 mm. Node type: Safety-Slave. AS-Interface specification: V2.1. Required gateway specification: ≥ V2.0. Response delay: < 5 ms. UL File Number: E155795. Safety Integrity Level (SIL): SIL 3. Performance level (PL): PL e. Mission Time (TM): 20 a. PFHd: 4.29 E-8. LED 1: programmable. LED AS-i: green: normal operationred: no data exchangered/yellow flashing: no data exchangeRed/green flashing: Device error in the slavered flashing: Device error in the slave. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 30 mA. Power supply: via AS-Interface network. Number/Type: LED red. Switching voltage: 24 V. Switching current: max. 0.5 A. Supply: from AS-Interface. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013 IEC 60947-5-3:1999: . Directive 2014/30/EU: EN 62026-2:2013 IEC 60947-5-3:1999. Machinery Directive: . Directive 2006/42/ECEN ISO 12100-1, -2:2003 EN 1088:1995+A2:2008: . Directive 2006/42/EC: EN ISO 12100-1, -2:2003 EN 1088:1995+A2:2008. Degree of protection: EN 60529:2000. AS-Interface: EN 62026-2:2013. Functional safety: ISO 13849-1:2008 (up to category 3/PL e) EN ISO 12100-1, -2:2003 EN 1088:1995+A2:2008. Profile: S-7.B. IO code: 7. ID code: B. ID1 code: F. ID2 code: E. Data bits (function via AS-Interface): InputOutput. D0 dyn. safety code 1 -D1 dyn. safety code 1 LED 1D2 dyn. safety code 2 -D3 dyn. safety code 2 -: . D0: dyn. safety code 1 -. D1: dyn. safety code 1 LED 1. D2: dyn. safety code 2 -. D3: dyn. safety code 2 -. Parameter bits (programmable via AS-i): . P0 IN1 -P1 IN2 -P2 IN3 -P3 IN4 -: . P0: IN1 -. P1: IN2 -. P2: IN3 -. P3: IN4 -. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Shock and impact resistance: 30 g/11 ms. Degree of protection: IP67. Connection: with fixed cable and M12 connector, 4-pin. Material: . HousingPPSCablePUR: . Housing: PPS. Cable: PUR. Installation: any position. Dimensions: . Width25 mmDepth13 mmLength87.5 mm: . Width: 25 mm. Depth: 13 mm. Length: 87.5 mm. Cable length: 1 m. Life span: 100 x 106 switching cycles

Brand	Pepperl Fuchs
Lifecycle status	active
