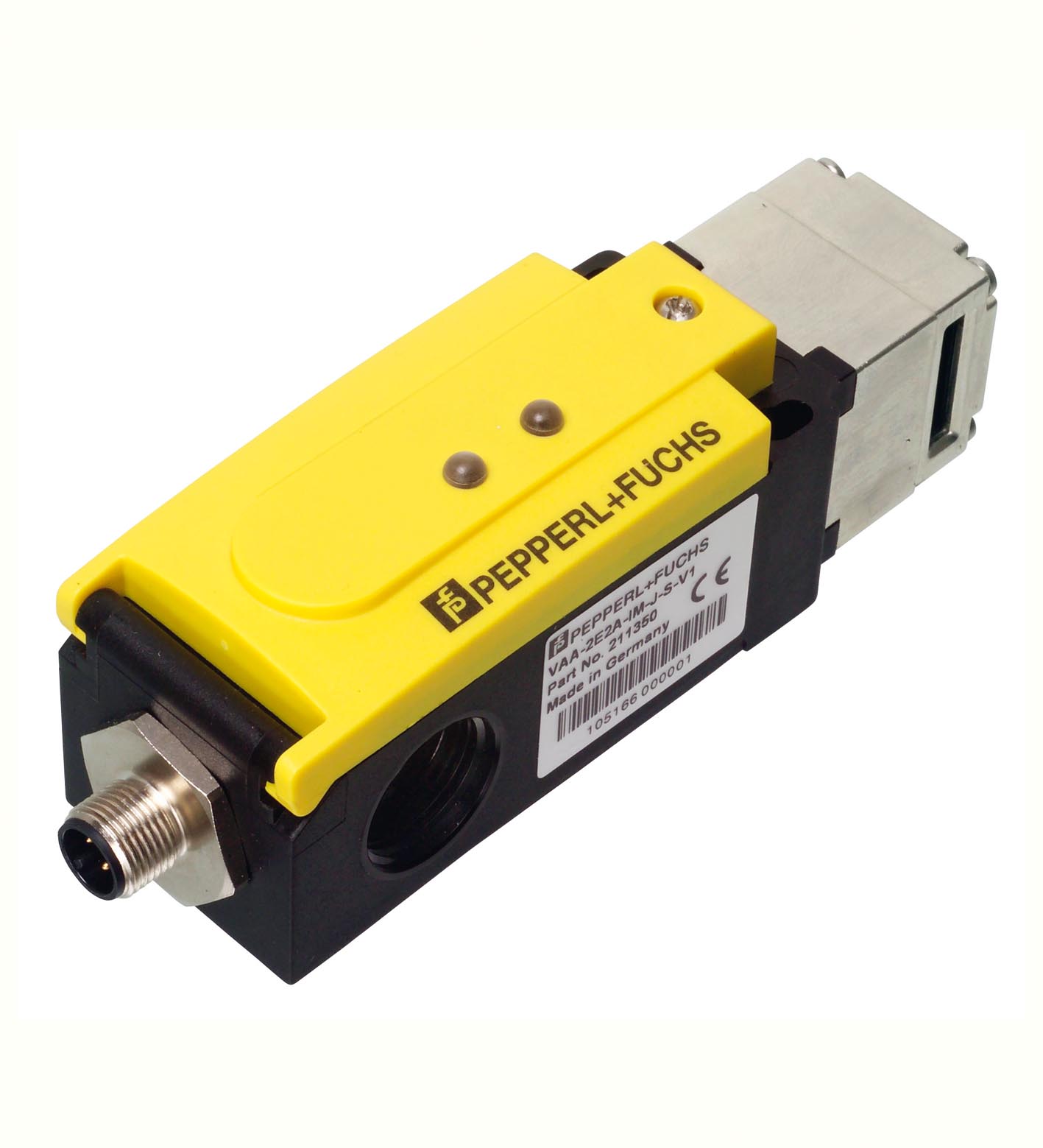

VAA-2E2A-IM1-J-S-V1

AS-Interface safety switch. AS-Interface safety switch. Node type: Safety-Slave. AS-Interface specification: V2.1. Required gateway specification: ≥ V2.0. UL File Number: E179102. LED FAULT: error dis...

AS-Interface safety switch. AS-Interface safety switch. Node type: Safety-Slave. AS-Interface specification: V2.1. Required gateway specification: ≥ V2.0. UL File Number: E179102. LED FAULT: error display; LED redred: communication error. LED POWER: AS-Interface voltage; LED green. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 45 mA. Rated insulation voltage: 50 V. Number/Type: 2 safety-related inputs:normally-closed contact 1 normally-closed contact 2. Supply: from AS-Interface. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013: . Directive 2014/30/EU: EN 62026-2:2013. Degree of protection: EN 60529:2000. AS-Interface: EN 62026-2:2013. Functional safety: DIN EN 954-1, EN ISO 13849-1 (up to PLd). Profile: S-7.B. IO code: 7. ID code: B. ID1 code: F. ID2 code: E. Data bits (function via AS-Interface): Input. D0normally-closed contact 1D1normally-closed contact 1D2normally-closed contact 2D3normally-closed contact 2: . D0: normally-closed contact 1. D1: normally-closed contact 1. D2: normally-closed contact 2. D3: normally-closed contact 2. Ambient temperature: -20 ... 55 °C (-4 ... 131 °F). approach speed: max. 20 m/min. Operating force: 25 N. Extraction force: 25 N. retention force: 10 N. insertion depth: detected min. distancepermissible caster. approach direction lateral24.5 mm5 mm approach direction from above24.5 mm5 mm: . approach direction lateral: 24.5 mm5 mm. approach direction from above: 24.5 mm5 mm. Degree of protection: IP67. Connection: connector M12 x 1. Material: . HousingFiberglass-reinforced thermoplasticactuating headmetalcamstainless steel: . Housing: Fiberglass-reinforced thermoplastic. actuating head: metal. cam: stainless steel. Mass: approx. 0.16 kg. Dimensions: . Height42 mmWidth40 mmLength123 mm: . Height: 42 mm. Width: 40 mm. Length: 123 mm. Life span: 2 x 106 switching cycles

Brand	Pepperl Fuchs
Lifecycle status	active
