VAA-2E2A-KE1-SE

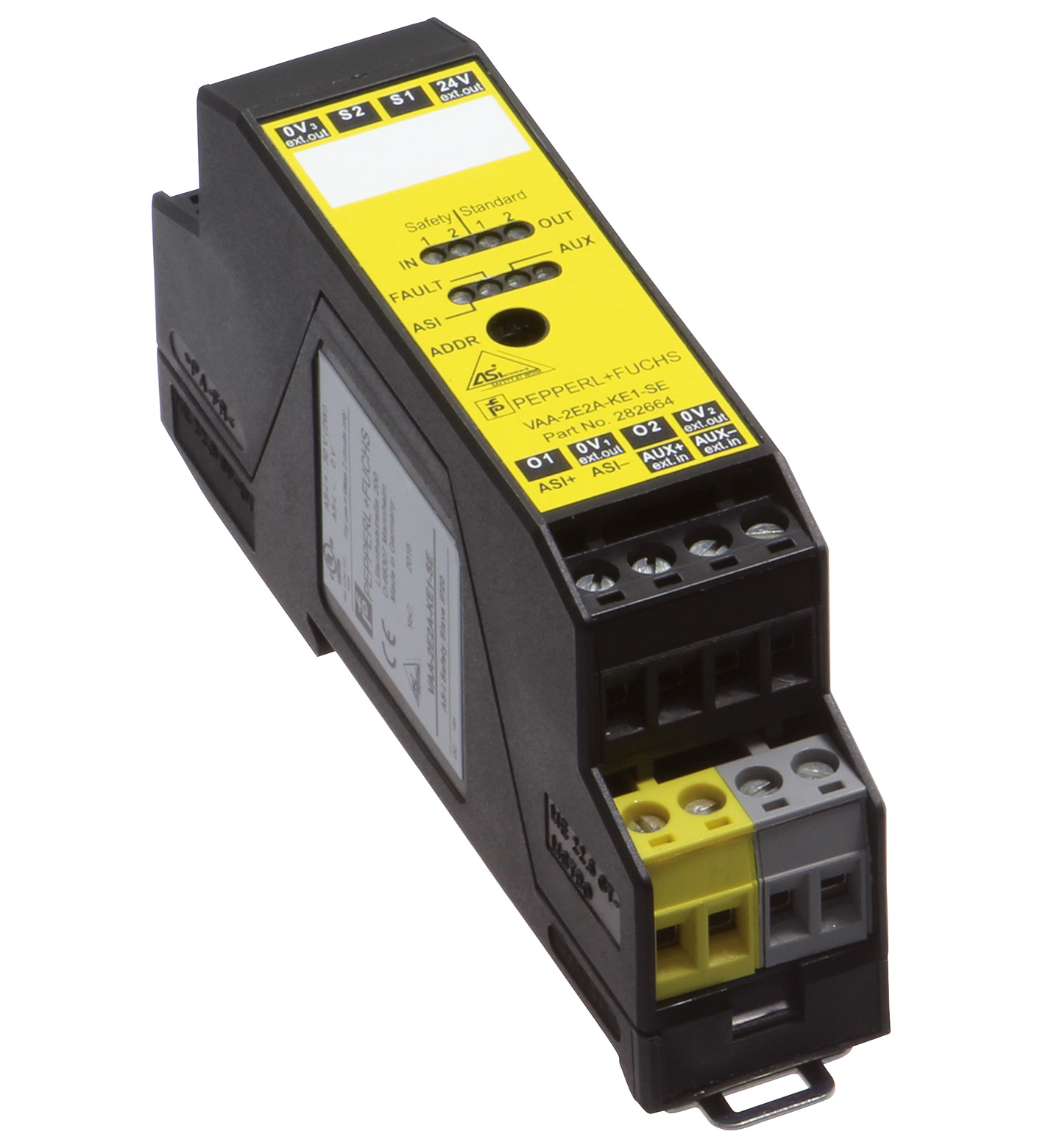

AS-Interface safety module. KE1-Safety module for the control cabinet, 2 safety-related inputs and 2 conventional electronic outputs. Node type: Safety-Slave. AS-Interface specification: V3.0. Require...

AS-Interface safety module. KE1-Safety module for the control cabinet, 2 safety-related inputs and 2 conventional electronic outputs. Node type: Safety-Slave. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. UL File Number: E223772. Safety Integrity Level (SIL): SIL 3. Performance level (PL): PL e. Category: Cat. 4. Mission Time (TM): 20 a. PFHd: 2.83 E-9. PFD: 8 E-7. LED FAULT: Fault indication: red LEDRed: communication error or address is 0Red flashing: peripheral fault. LED AS-i: AS-Interface voltage; LED green. LED AUX: auxiliary voltage UAUX ; LED green. LED IN: switching state (input); 2 LED yellow. LED OUT: Switching state (output); 2 LED yellow. Auxiliary voltage (output): 24 V (20 VDC… 30 VDC). Rated operating voltage: 22 ... 31.6 V. Rated operating current: ≤ 70 mA. Protection class: III. Current consumption: max. 35 mA (AS-Interface) max. 4 A (AUX). Surge protection: UAUX, Ue: overvoltage category II, safe isolated power supplies (PELV). Number/Type: 2 inputs for a 2-channel active optoelectronic protective devices (AOPD) for safeguarding positions and areas of danger up to PL e in accordance with EN / ISO 13849-1. Supply: from AUX. Voltage: 20 ... 30 V DC pulsed. Current loading capacity: 1800 mA for power supply of external sensors from AUX. Switching point: Vin> 11 V for high level, input current ≥ 2.5 mA at 15 V. Number/Type: 2 conventional electronic outputs, short-circuit proof. Supply: from AUX. Current: 1 A per output note derating. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013 EN 61326-3-1:2008: . Directive 2014/30/EU: EN 62026-2:2013 EN 61326-3-1:2008. Electromagnetic compatibility: EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011 EN 61131-2:2007. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. AS-Interface: EN 62026-2:2013. Functional safety: EN ISO 13849-1:2008 up to PL e EN 62061:2005/A1:2013 up to SIL 3. Profile: S-7.B.1.. IO code: 7. ID code: B. ID1 code: F. ID2 code: 1. Data bits (function via AS-Interface): InputOutput. D0 dyn. safety code 1 OUT 1D1 dyn. safety code 1 OUT 2D2 dyn. safety code 2 -D3 dyn. safety code 2 -: . D0: dyn. safety code 1 OUT 1. D1: dyn. safety code 1 OUT 2. D2: dyn. safety code 2 -. D3: dyn. safety code 2 -. Parameter bits (programmable via AS-i): function. P0Communication monitoringP0 = 0 monitoring = off, the outputs maintain the status if communication failsP0 = 1 monitoring = on, i.e. if communication fails, the outputs are deenergised (default settings)P1not usedP2not usedP3not used: . P0: Communication monitoringP0 = 0 monitoring = off, the outputs maintain the status if communication failsP0 = 1 monitoring = on, i.e. if communication fails, the outputs are deenergised (default settings). P1: not used. P2: not used. P3: not used. Ambient temperature: 0 ... 55 °C (32 ... 131 °F) , no moisture condensation. Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Altitude: ≤ 2000 m above MSL. Shock and impact resistance: ≤ 15 g at T ≤ 11 ms, 10 ... 55 Hz, 0,5 mm amplitude. Degree of protection: IP20. Connection: removable terminals, terminal connection 0.2 ... 2.5 mm2. Material: . HousingPA 66-FR: . Housing: PA 66-FR. Mass: 60 g. Dimensions: . Height99.6 mmWidth22.5 mmLength48.5 mm: . Height: 99.6 mm. Width: 22.5 mm. Length: 48.5 mm. Mounting: DIN mounting rail. Tightening torque of clamping screws: 0.5 Nm ... 0.6 Nm

Brand	Pepperl Fuchs
Lifecycle status	active
