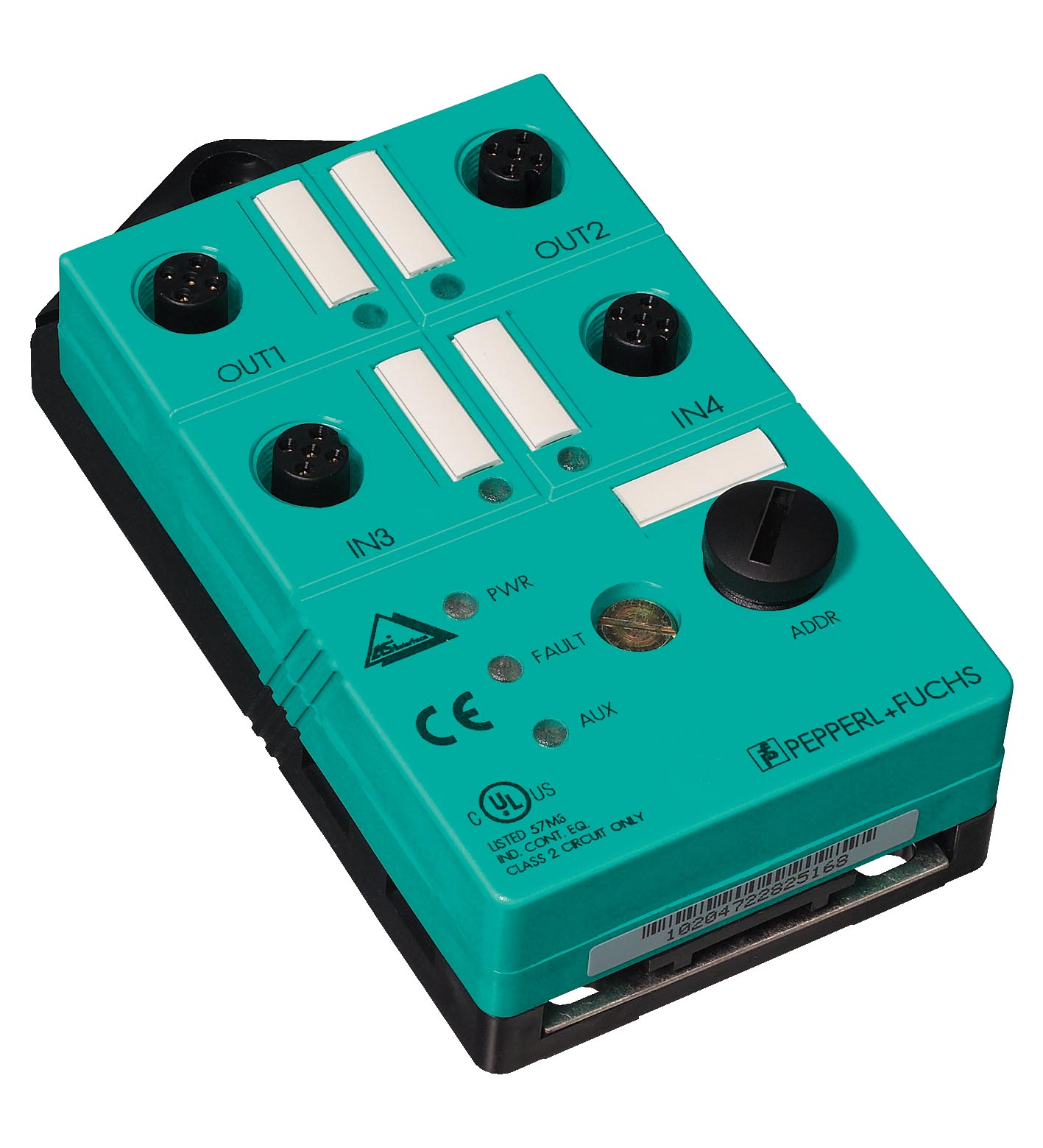

VAA-2EA-G2-ZA/EA2

AS-Interface sensor/actuator module. G2 flat module, 2 inputs (PNP) and 2 electronic outputs. Node type: Standard node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.0. UL Fil...

AS-Interface sensor/actuator module. G2 flat module, 2 inputs (PNP) and 2 electronic outputs. Node type: Standard node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.0. UL File Number: E223772. LED FAULT: error display; LED redred: communication error or address is 0red flashing: overload of sensor supply. LED PWR: AS-Interface voltage; LED green. LED AUX: ext. auxiliary voltage UAUX ; LED green. LED IN: switching state (input); 2 LED yellow. LED OUT: Switching state (output); 2 LED yellow. Auxiliary voltage (output): 24 V DC ± 15 % PELV. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 40 mA (without sensors) / max. 190 mA. Protection class: III. Surge protection: UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV). Number/Type: 2 inputs for 2- or 3-wire sensors (PNP), DC. Supply: from AS-Interface. Voltage: 21 ... 31 V. Current loading capacity: ≤ 150 mA (TB ≤ 40 °C),≤ 120 mA (TB ≤ 60 °C), short-circuit protected. Input current: ≤ 8 mA (limited internally). Switching point: according to DIN EN 61131-2 (Type 2). 0 (unattenuated)≤ 1.5 mA1 (attenuated)≥ 4.5 mA: . 0 (unattenuated): ≤ 1.5 mA. 1 (attenuated): ≥ 4.5 mA. Signal delay: < 2 ms (input/AS-Interface). Signal frequency: ≤ 250 Hz. Number/Type: 2 electronic outputs, PNP. Supply: from external auxiliary voltage UAUX. Voltage: ≥ (UAUX - 0.5 V). Current: 1 A per output. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013 EN 61000-6-2:2001 EN 61000-6-4:2001: . Directive 2014/30/EU: EN 62026-2:2013 EN 61000-6-2:2001 EN 61000-6-4:2001. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. Input: EN 61131-2:2007. Emitted interference: EN 61000-6-4:2001. AS-Interface: EN 62026-2:2013. Noise immunity: EN 61000-6-2:2001. Profile: S-3.F. IO code: 3. ID code: F. ID1 code: F. ID2 code: F. Data bits (function via AS-Interface): InputOutput. D0 IN1 -D1 IN2 -D2 - OUT3D3 - OUT4: . D0: IN1 -. D1: IN2 -. D2: - OUT3. D3: - OUT4. Parameter bits (programmable via AS-i): function. P0Communication monitoringP0 = 0 monitoring = off, the outputs maintain the status if communication failsP0 = 1 monitoring = on, i.e. if communication fails, the outputs are deenergised (default settings)P1Input filterP1 = 0 input filter on, pulse suppression ≤ 2 msP1 = 1 input filter off (default settings)P2Synchronous modeP2 = 0 synchronous mode onP2 = 1 synchronous mode off (default settings)P3not used: . P0: Communication monitoringP0 = 0 monitoring = off, the outputs maintain the status if communication failsP0 = 1 monitoring = on, i.e. if communication fails, the outputs are deenergised (default settings). P1: Input filterP1 = 0 input filter on, pulse suppression ≤ 2 msP1 = 1 input filter off (default settings). P2: Synchronous modeP2 = 0 synchronous mode onP2 = 1 synchronous mode off (default settings). P3: not used. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Relative humidity: 85 % , noncondensing. Climatic conditions: For indoor use only. Altitude: ≤ 2000 m above MSL. Pollution degree: 3. Degree of protection: IP67. Connection: Cable piercing methodflat cable yellow/flat cable blackinputs/outputs: M12 round connector. Material: . HousingPBT: . Housing: PBT. Mass: 100 g. Tightening torque, cable gland: 0.4 Nm. Mounting: Mounting plate

Brand	Pepperl Fuchs
Lifecycle status	active
