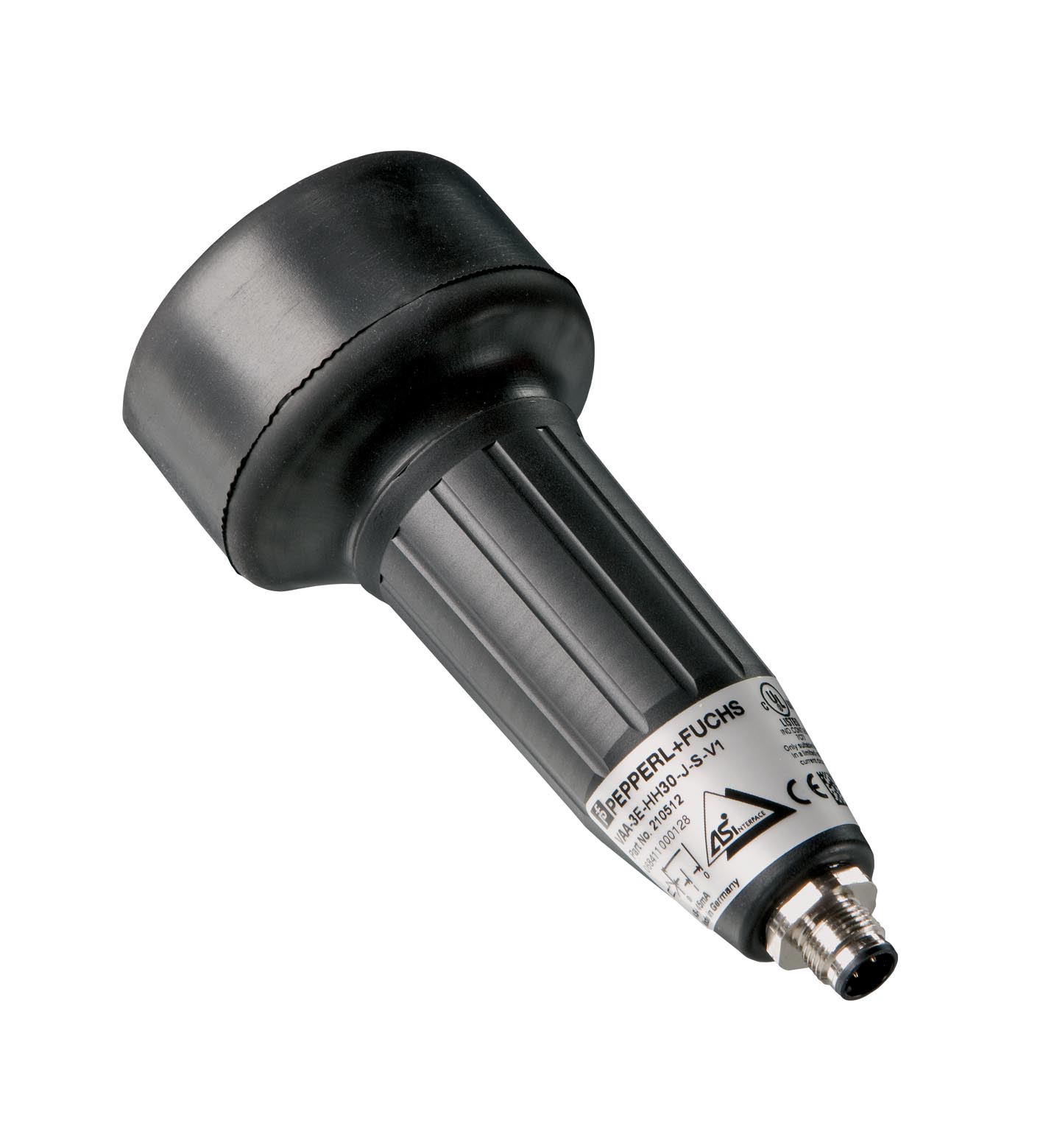

VAA-3E-HH30-J-S-V1

AS-Interface enabling switch. AS-Interface enabling switch, 3-layered. Node type: Safety-Slave. AS-Interface specification: V2.1. Required master specification: ≥ V2.0. Switching principle: slow-actin...

AS-Interface enabling switch. AS-Interface enabling switch, 3-layered. Node type: Safety-Slave. AS-Interface specification: V2.1. Required master specification: ≥ V2.0. Switching principle: slow-acting contact element, 3-stage. UL File Number: E179102. Performance level (PL): PL d. B10d: 1 E+5. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 45 mA. Rated insulation voltage: 50 V. Number/Type: 2 safety-related inputs:NO E1 NO E2. Supply: from AS-Interface. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013: . Directive 2014/30/EU: EN 62026-2:2013. Degree of protection: EN 60529:2000. AS-Interface: EN 62026-2:2013. Functional safety: DIN EN 954-1, EN ISO 13849-1 (up to PLd). Profile: S-0.B. IO code: 0. ID code: B. ID1 code: F. ID2 code: E. Data bits (function via AS-Interface): Input. D0dyn. safety code 1D1dyn. safety code 1D2dyn. safety code 2D3dyn. safety code 2: . D0: dyn. safety code 1. D1: dyn. safety code 1. D2: dyn. safety code 2. D3: dyn. safety code 2. Ambient temperature: -5 ... 50 °C (23 ... 122 °F). Degree of protection: IP67. Connection: M12 x 1 connector. Material: . HousingPolyamide (PA)Protective coverNeoprene: . Housing: Polyamide (PA). Protective cover: Neoprene. Mass: approx. 140 g (without conduction). Life span: 105 cycles

Brand	Pepperl Fuchs
Lifecycle status	active
