VAA-4E4A-CB1-Z/E2

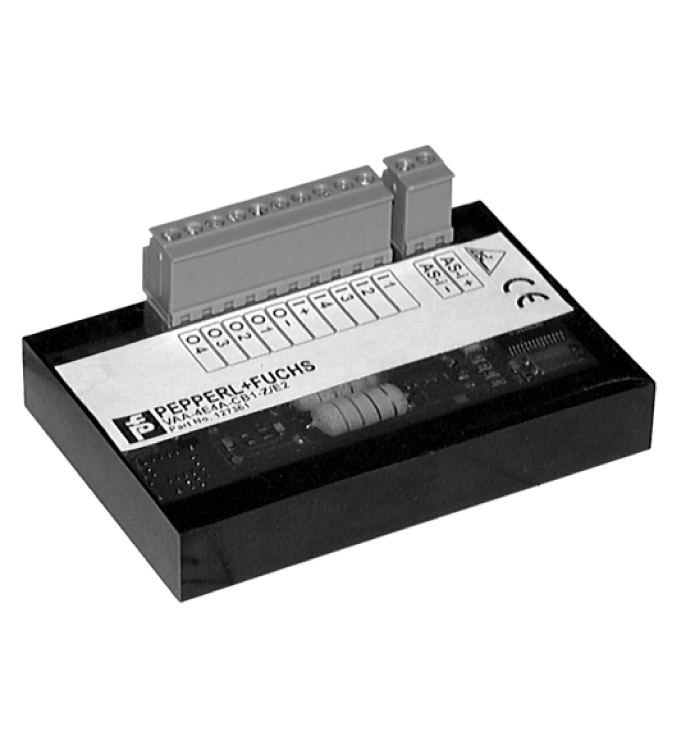

ASi PCB module. I/O module as encapsulated PCB with 4 inputs and 4 outputs. Node type: Standard node. AS-Interface specification: V2.0. Required gateway specification: ≥ V2.0. UL File Number: E223772....

ASi PCB module. I/O module as encapsulated PCB with 4 inputs and 4 outputs. Node type: Standard node. AS-Interface specification: V2.0. Required gateway specification: ≥ V2.0. UL File Number: E223772. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 30 mA (without sensors) / max. 180 mA. Protection class: III. Surge protection: Ue: Over voltage category III, safe isolated power supplies (PELV). Number/Type: 4 inputs for 2- or 3-wire sensors (PNP), DC. Supply: from AS-Interface. Voltage: 21 ... 31 V. Input current: ≤ 8 mA (limited internally). Switching point: according to EN 61131-2 Typ 1. 0 (unattenuated)≤ 1.5 mA1 (attenuated)≥ 4 mA: . 0 (unattenuated): ≤ 1.5 mA. 1 (attenuated): ≥ 4 mA. Number/Type: 4 electronic outputs, PNP. Supply: from AS-Interface. Voltage: 21 ... 31 V. Current: ≤ 100 mA per output, ≤ 140 mA total. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 EN 61000-6-4:2007 EN 62026-2:2015: . Directive 2014/30/EU: EN 61326-1:2013 EN 61000-6-4:2007 EN 62026-2:2015. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. Input: EN 61131-2:2015. Emitted interference: EN 61000-6-4:2007. AS-Interface: EN 62026-2:2013. Noise immunity: EN 61326-1:2013. Profile: S-7.0. IO code: 7. ID code: 0. ID1 code: F. ID2 code: E. Data bits (function via AS-Interface): InputOutput. D0 IN1 OUT1D1 IN2 OUT2D2 IN3 OUT3D3 IN4 OUT4: . D0: IN1 OUT1. D1: IN2 OUT2. D2: IN3 OUT3. D3: IN4 OUT4. Parameter bits (programmable via AS-i): function. P0not usedP1not usedP2not usedP3not used: . P0: not used. P1: not used. P2: not used. P3: not used. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 85 % , noncondensing. Climatic conditions: For indoor use only. Altitude: ≤ 2000 m above MSL. Pollution degree: 2. Connection: screw terminals, removable rated connection capacity:rigid/flexible (with and without wire-end ferrules): 0.25 mm2 ... 1.5 mm2In case of wire end ferrule with plastic sleeve: 0.25 mm2 ... 0.5 mm2On connection of multiple conductors when using two conductors with the same cross section:Flexible with twin wire end ferrule:. Dimensions: . Height27 mmWidth51 mmLength76 mm: . Height: 27 mm. Width: 51 mm. Length: 76 mm. Tightening torque of clamping screws: 0.22 ... 0.25 Nm
