VAA-4E4A-G11-ZAJ/EA2L-V1

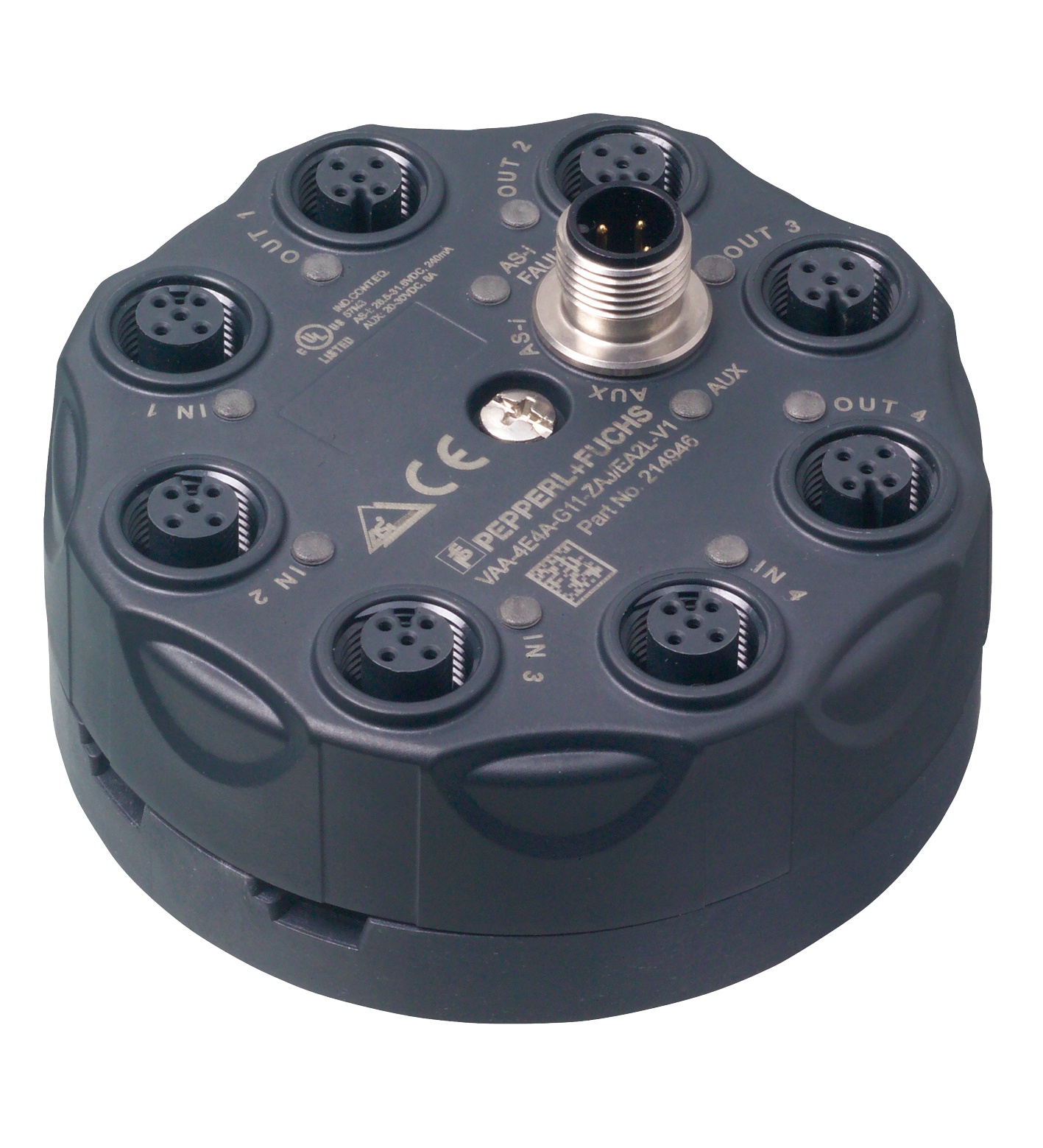

AS-Interface sensor/actuator module. G11 module<br>4 inputs and 4 outputs. Node type: Standard node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. Profile: S-7.F. IO code7I...

AS-Interface sensor/actuator module. G11 module<br>4 inputs and 4 outputs. Node type: Standard node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. Profile: S-7.F. IO code7ID codeFID1 codeFID2 codeE: . IO code: 7. ID code: F. ID1 code: F. ID2 code: E. UL File Number: E223772. LED AS-i/FAULT: Status display; multi-colour LEDGreen: normal operationRed: communication faultFlashing yellow/red: address 0Flashing green/red: sensor supply i.e. overload or lead interruption outputs. LED AUX: ext. auxiliary voltage UAUX; dual LED green/redgreen: voltage OKred: reverse voltage. LED IN: switching state (input); 4 LED yellow. LED OUT: switching state (output); 4 LED yellow/redyellow: output activered: output overload or lead interruption. Auxiliary voltage (output): 20 ... 30 V DC PELV. Rated operating voltage: 18,0 ... 31.6 V from AS-Interface. Rated operating current: ≤ 40 mA (without sensors) / max. 240 mA. Protection class: III. Surge protection: UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV). Number/Type: 4 inputs for 2- or 3-wire sensors (PNP), DC option 2 inputs for 4-wire sensors (PNP), DC. Supply: from AS-Interface. Voltage: 12 ... 31 V. Current loading capacity: ≤ 200 mA, overload and short-circuit protected. Input current: ≤ 9 mA (limited internally). Switching point: according to DIN EN 61131-2 (Type 2). 0 (unattenuated)≤ 3 mA1 (attenuated)≥ 5 mA: . 0 (unattenuated): ≤ 3 mA. 1 (attenuated): ≥ 5 mA. Signal delay: < 1 ms (input/AS-Interface). Number/Type: 4 electronic outputs, PNP, overload and short-circuit proof. Supply: from external auxiliary voltage UAUX. Voltage: ≥ (UAUX - 0.5 V). Current: 2 A per outputTB ≤ 40 °C: 6 A totalTB ≤ 70 °C: sum O1 + O2 max. 2 A, sum O3 + O4 max. 2 A. Input/Output: safe isolation, rated insulation voltage 40 V DC. Output/AS-Interface: safe isolation, rated insulation voltage 40 V DC. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007: . Directive 2014/30/EU: EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. Input: EN 61131-2:2007. Emitted interference: EN 61000-6-4:2007. AS-Interface: EN 62026-2:2013. Noise immunity: EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Relative humidity: 85 % , noncondensing. Climatic conditions: For indoor use only. Altitude: ≤ 2000 m above MSL. Shock and impact resistance: 30 g, 11 ms in 6 spatial directions 3 shocks10 g, 16 ms in 6 spatial directions 1000 shocks. Vibration resistance: 0.75 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles. Pollution degree: 3. Degree of protection: IP68 / IP69K. Connection: AS-Interface/UAUX: M12 round connector Inputs/outputs: M12 round connector. Material: . HousingPBT PCMounting screwStainless steel 1.4305 / AISI 303: . Housing: PBT PC. Mounting screw: Stainless steel 1.4305 / AISI 303. Mass: 200 g. Tightening torque, housing screws: 1.8 Nm. Tightening torque, cable gland: 0.4 Nm. Dimensions: . Height35 mmDiameter85 mm: . Height: 35 mm. Diameter: 85 mm. Mounting: Mounting plate

Brand	Pepperl Fuchs
Lifecycle status	active
