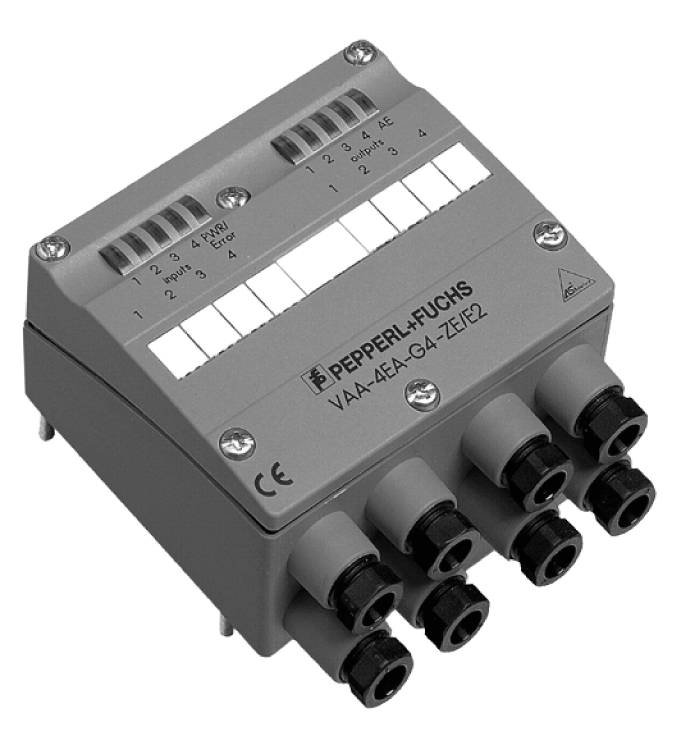

VAA-4E4A-G4-ZE/E2

AS-Interface sensor/actuator module. G4 module IP65, 4 inputs (PNP) and 4 electronic outputs. Node type: Standard node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.0. Profil...

AS-Interface sensor/actuator module. G4 module IP65, 4 inputs (PNP) and 4 electronic outputs. Node type: Standard node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.0. Profile: S-7.0. IO code7ID code0ID1 codeFID2 codeE: . IO code: 7. ID code: 0. ID1 code: F. ID2 code: E. UL File Number: E223772. LED PWR/FAULT: dual LED green/redgreen: AS-Interface voltagered: communication error or address 0green/red flashing: overload sensor supply or outputs. LED AUX: ext. auxiliary voltage UAUX ; LED green. LED IN: switching state (input); 4 LED yellow. LED OUT: Switching state (output); 4 LED yellow. Auxiliary voltage (output): 24 V DC ± 15 % PELV. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 30 mA (without sensors) / max. 230 mA. Protection class: III. Surge protection: UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV). Number/Type: 4 inputs for 2- or 3-wire sensors (PNP), DC. Supply: from AS-Interface. Voltage: 21 ... 31 V. Current loading capacity: ≤ 200 mA (TB ≤ 40 °C),≤ 160 mA (TB ≤ 60 °C), short-circuit protected. Input current: ≤ 9 mA (limited internally). Switching point: according to DIN EN 61131-2 (Type 2). 0 (unattenuated)≤ 3 mA1 (attenuated)≥ 5 mA: . 0 (unattenuated): ≤ 3 mA. 1 (attenuated): ≥ 5 mA. Number/Type: 4 electronic outputs, PNP, overload and short-circuit proof. Supply: from external auxiliary voltage UAUX. Voltage: ≥ (UAUX - 0.5 V). Current: 1 A per output, 4 A total. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007: . Directive 2014/30/EU: EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. Input: EN 61131-2:2007. Emitted interference: EN 61000-6-4:2007. AS-Interface: EN 62026-2:2013. Noise immunity: EN 61000-6-2:2005 EN 62026-2:2013. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Relative humidity: 85 % , noncondensing. Climatic conditions: For indoor use only. Altitude: ≤ 2000 m above MSL. Pollution degree: 3. Degree of protection: IP65. Connection: cable piercing method or terminal compartmentyellow flat cable/black flat cable or standard round cableinputs/outputs:M12 x 1.5 cable glands and cage tension spring terminals. Material: . HousingPA 6 GF30: . Housing: PA 6 GF30. Mass: 350 g. Tightening torque, housing screws: 0.8 Nm. Dimensions: . Height71 mmWidth90 mmLength102 mm: . Height: 71 mm. Width: 90 mm. Length: 102 mm. Mounting: DIN rail or screw mounting

Brand	Pepperl Fuchs
Lifecycle status	active
