Pepperl Fuchs

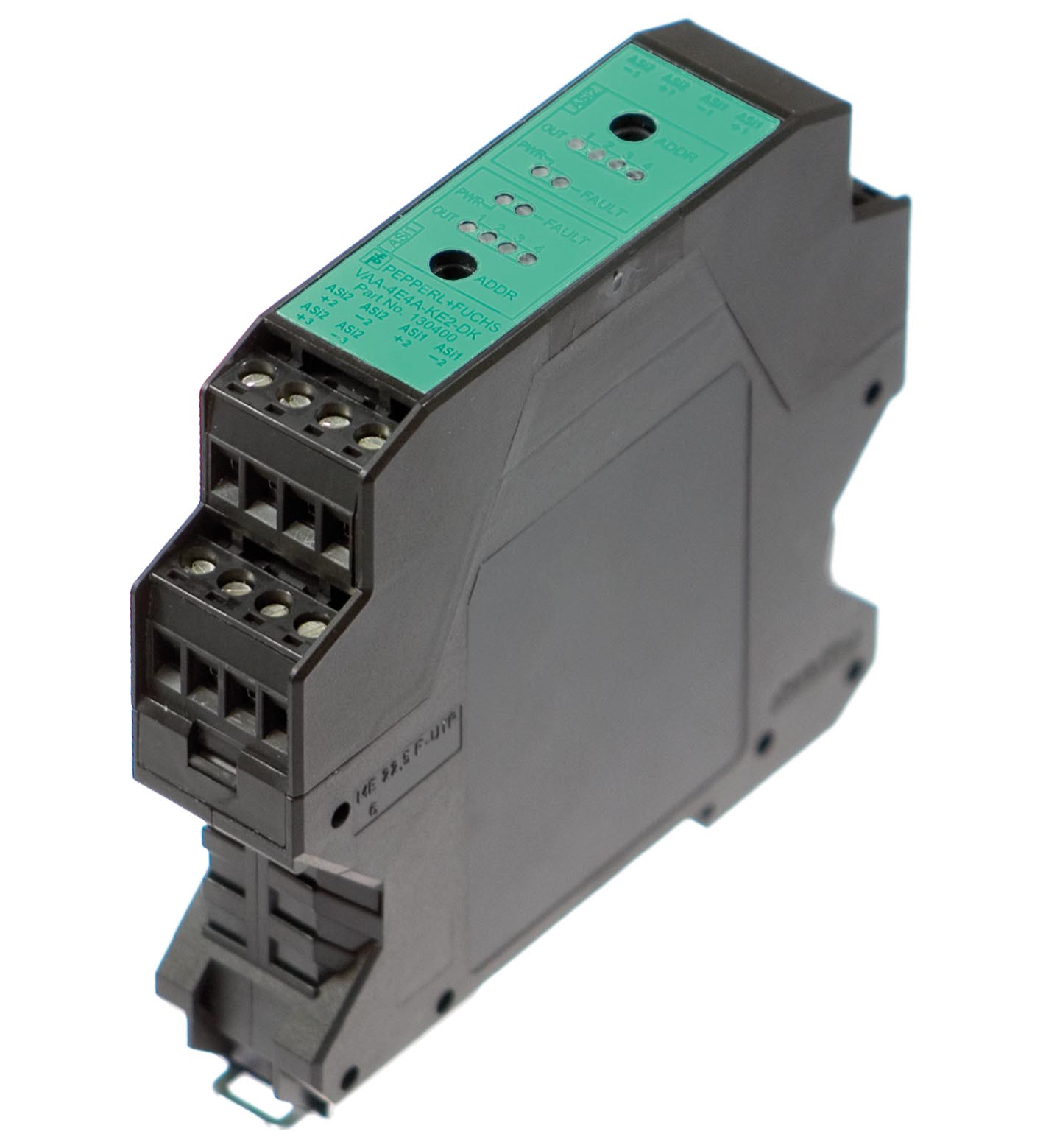

VAA-4E4A-KE2-DK

AS-Interface data coupler. Control cabinet module, data coupler. Node type: Standard node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.0. LED FAULT: error display; LED redred: communication error or address is 0red flashing: overload of outputs. LED PWR: AS-Interface voltage; 2 LED green. LED OUT: Switching state (output); 8 LED yellowO10-O13: AS-Interface 1;O20-O23: AS-Interface 2. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 80 mA. Number/Type: 4 internal inputs per AS-Interface circuit 1+2. Number/Type: 4 internal outputs per AS-Interface circuit 1+2. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2001: . Directive 2014/30/EU: EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2001. Electromagnetic compatibility: EN 61000-6-2:2005, EN 61000-6-4:2001, EN 50295:1999. Degree of protection: EN 60529:2000. AS-Interface: EN 62026-2:2013. Profile: S-7.F.F. IO code: 7. ID code: F. ID1 code: F. ID2 code: E. Data bits (function via AS-Interface): The output of AS-Interface 1 is the input to AS-Interface 2The output of AS-Interface 2 is the input to AS-Interface 1InputOutput. D0 IN1 O1D1 IN2 O2D2 IN3 O3D3 IN4 O4: . D0: IN1 O1. D1: IN2 O2. D2: IN3 O3. D3: IN4 O4. Parameter bits (programmable via AS-i): function. P0not usedP1not usedP2not usedP3not used: . P0: not used. P1: not used. P2: not used. P3: not used. Ambient temperature: 0 ... 55 °C (32 ... 131 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Degree of protection: IP20. Connection: removable terminals, terminal connection ≤ 2.5 mm2. Material: . HousingPA 66-FR: . Housing: PA 66-FR. Mass: 130 g. Dimensions: . Height85 mmWidth22.5 mmLength99 mm: . Height: 85 mm. Width: 22.5 mm. Length: 99 mm. Mounting: DIN mounting rail

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
