Pepperl Fuchs

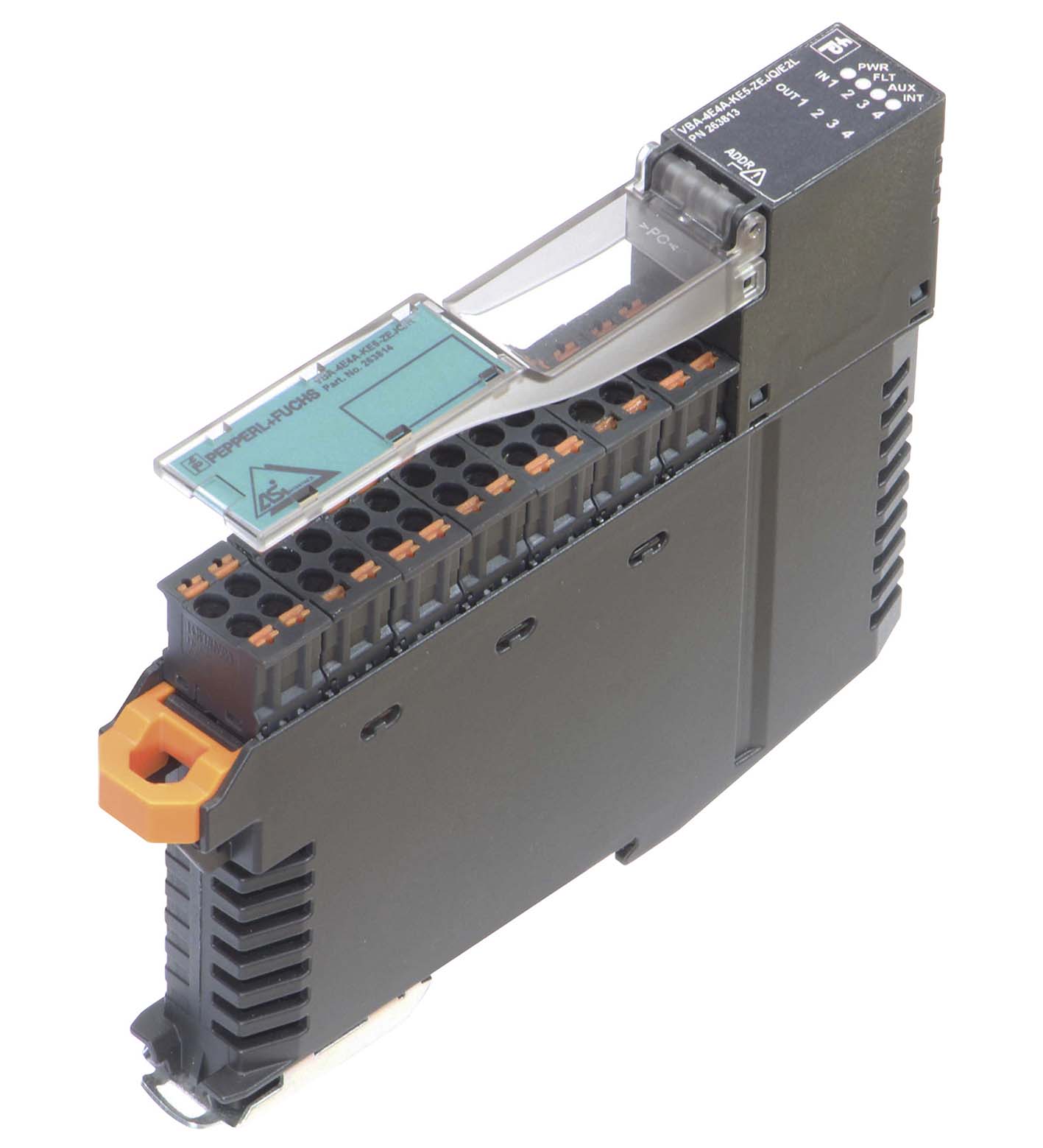

VAA-4E4A-KE5-ZEJQ/E2L

AS-Interface sensor/actuator module. Cabinet module, 4 inputs and 4 outputs. Node type: Standard node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.0. UL File Number: E223772. MTBF: 141 a. LED FAULT: Error display; red LEDred: communication error, i.e. address is 0red flashing: overload internal input supply, i.e. overload or lead interruption outputs. LED INT: Internal input supply active; LED green. LED PWR: AS-Interface voltage; green LEDgreen: voltage OKflashing green: address 0. LED AUX: ext. auxiliary voltage UAUX; dual LED green/redgreen: voltage OKred: reverse voltage. LED IN: switching state (input); 4 LED yellow. LED OUT: switching state (output); 4 LED yellow/redyellow: output activered: output overload or lead interruption. Auxiliary voltage (input): 12 ... 30 V DC PELV. Auxiliary voltage (output): 20 ... 30 V DC PELV. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 35 mA (without sensors) / max. 190 mA. Protection class: III. Surge protection: UEXT, UAUX, Ue: overvoltage category II, safe isolated power supplies (PELV) Overvoltage category of the power supplies (primary): III. Rated insulation voltage: 92 V. Pulse withstand voltage: 0.8 kV. Number/Type: 4 inputs for 3-wire sensors (PNP), DC. Supply: from AS-Interface (switch position INT, default settings) or external UEXT (switch position EXT). Voltage: 21 ... 31 V DC (INT). Current loading capacity: ≤ 150 mA, overload- and short-circuit protected (INT). Input current: ≤ 5.6 mA (max.). Switching point: according to DIN EN 61131-2 (type 1). 0 (unattenuated)≤ 0.5 mA1 (attenuated)≥ 2 mA: . 0 (unattenuated): ≤ 0.5 mA. 1 (attenuated): ≥ 2 mA. Signal delay: < 1 ms (input/AS-Interface). Number/Type: 4 electronic outputs, PNP, overload and short-circuit proof. Supply: from external auxiliary voltage UAUX. Voltage: ≥ (UAUX - 0.5 V). Current: 2 A Per output, total 4 A (TB ≤ 60 °C) 1 A Per output, total 4 A (TB ≤ 70 °C). Usage category: DC-13. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007: . Directive 2014/30/EU: EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007. Machinery Directive: . Directive 2006/42/ECEN ISO 13849-1:2008 , EN ISO 13849-2:2012: . Directive 2006/42/EC: EN ISO 13849-1:2008 , EN ISO 13849-2:2012. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. Electrical safety: IEC 61140:2009. Input: EN 61131-2:2004. Emitted interference: EN 61000-6-4:2007. AS-Interface: EN 62026-2:2013. Noise immunity: EN 61000-6-2:2005, EN 61326-1:2006, EN 62026:2013. Functional safety: EN ISO 13849-1:2008 EN ISO 13849-2:2012. Profile: S-7.0. IO code: 7. ID code: 0. ID1 code: F. ID2 code: E. Data bits (function via AS-Interface): InputOutput. D0 IN1 O1D1 IN2 O2D2 IN3 O3D3 IN4 O4: . D0: IN1 O1. D1: IN2 O2. D2: IN3 O3. D3: IN4 O4. Parameter bits (programmable via AS-i): function. P0Communication monitoringP0 = 0 monitoring = off, the outputs maintain the status if communication failsP0 = 1 monitoring = on, i.e. if communication fails, the outputs are deenergised (default settings)P1Input filterP1 = 0 input filter on, pulse suppression ≤ 2 msP1 = 1 input filter off (default settings)P2Lead breakage outputsP2 = 0 lead breakage onP2 = 1 lead breakage off (default settings)P3not used: . P0: Communication monitoringP0 = 0 monitoring = off, the outputs maintain the status if communication failsP0 = 1 monitoring = on, i.e. if communication fails, the outputs are deenergised (default settings). P1: Input filterP1 = 0 input filter on, pulse suppression ≤ 2 msP1 = 1 input filter off (default settings). P2: Lead breakage outputsP2 = 0 lead breakage onP2 = 1 lead breakage off (default settings). P3: not used. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Relative humidity: 85 % , noncondensing. Climatic conditions: For indoor use only. Altitude: ≤ 2000 m above MSL. Shock and impact resistance: 15 g, 11 ms in 6 spatial directions, 3 shocks 10 g, 16 ms in 6 spatial directions, 1000 shocks. Vibration resistance: 0.35 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles. Pollution degree: 2. Degree of protection: IP20 For safety applications: Installation in an enclosure with a minimum protection class of IP54 required. Connection: Removable push-in terminalsrated connection capacity:rigid: 0.20 mm2 ... 1.5 mm2flexible (without wire end ferrule): 0.20 mm2 ... 2.5 mm2flexible (with wire end ferrule): 0.25 mm2 ... 1.5 mm2. Material: . HousingPA 66-FR: . Housing: PA 66-FR. Mass: 110 g. Dimensions: . Height100 mmWidth18.9 mmLength124 mm: . Height: 100 mm. Width: 18.9 mm. Length: 124 mm. Mounting: DIN mounting rail

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
