Pepperl Fuchs

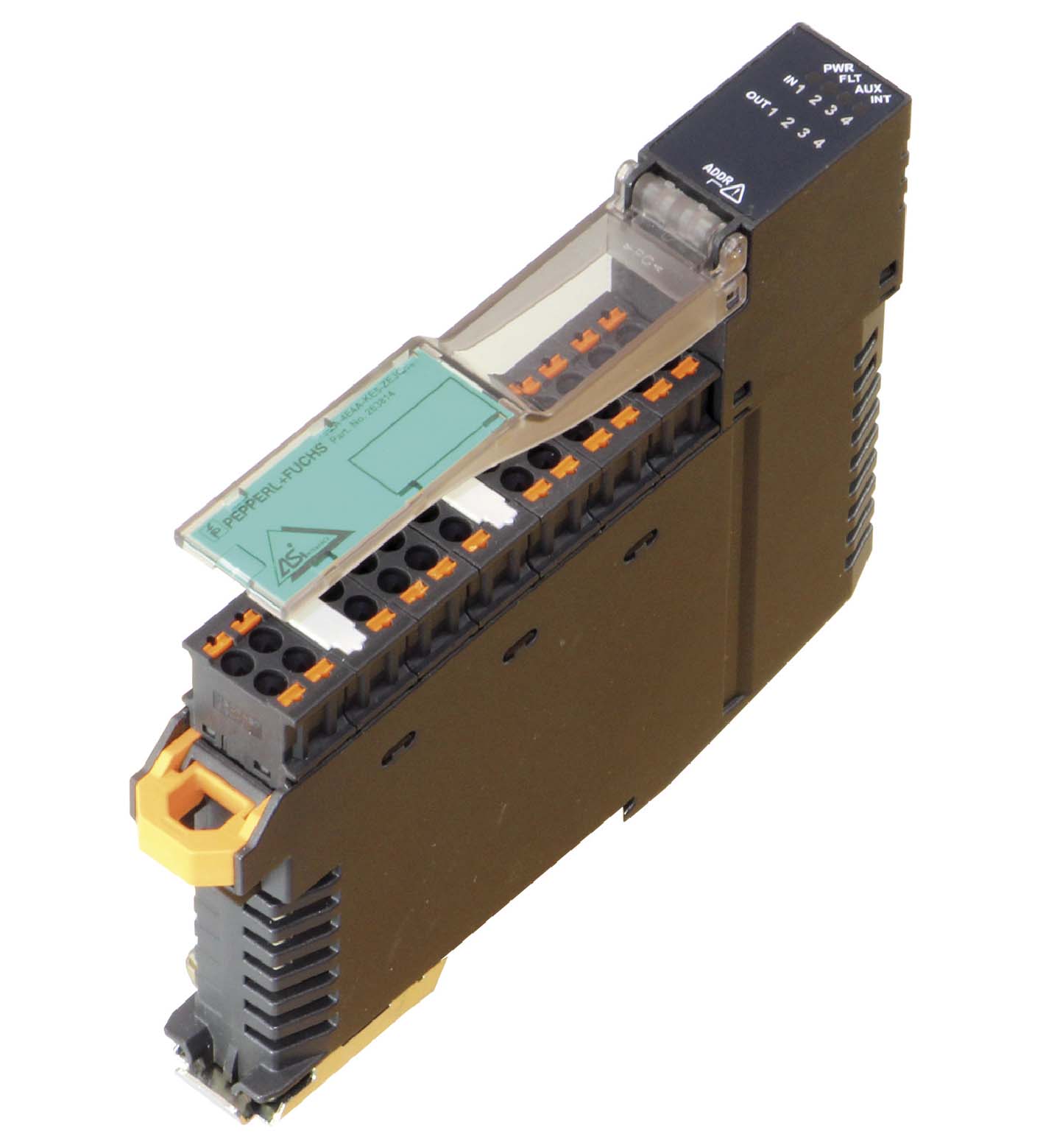

VAA-4E4A-KE5-ZEJQ/R

AS-Interface sensor/actuator module. Cabinet module, 4 inputs and 4 relay outputs. Node type: Standard node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.0. UL File Number: E223772. MTBF: 224 a. LED FAULT: Fault display; Red LEDred: Communication fault or address is 0red, flashing: Overload, internal input supply. LED INT: Internal input supply active; LED green. LED PWR: AS-Interface voltage; green LEDgreen: voltage OKflashing green: address 0. LED IN: switching state (input); 4 LED yellow. LED OUT: Switching state (output); 4 LED yellow. Auxiliary voltage (input): 12 ... 30 V DC PELV. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 35 mA (without sensors) / max. 230 mA. Surge protection: O1 ... O4: Over voltage category IIUEXT, Ue: overvoltage category II, safe isolated power supplies (PELV). Number/Type: 4 inputs for 3-wire sensors (PNP), DC. Supply: from AS-Interface (switch position INT, default settings) or external UEXT (switch position EXT). Voltage: 21 ... 31 V DC (INT). Current loading capacity: ≤ 150 mA, overload- and short-circuit protected (INT). Input current: ≤ 5.6 mA (max.). Switching point: according to DIN EN 61131-2 (type 1). 0 (unattenuated)≤ 0.5 mA1 (attenuated)≥ 2 mA: . 0 (unattenuated): ≤ 0.5 mA. 1 (attenuated): ≥ 2 mA. Signal delay: < 1 ms (input/AS-Interface). Number/Type: 4 relay outputs, normally open. Supply: none. Nominal load: . Per contact2 A/30 VDC; 2 A/250 VAC For more information, see the "Galvanic Isolation" sectionPer module8 A: . Per contact: 2 A/30 VDC; 2 A/250 VAC For more information, see the "Galvanic Isolation" section. Per module: 8 A. Control circuit: ≤ 11 mA per relay (from AS-Interface). Switching delay: < 10 ms (AS-Interface/contact). Usage category: DC-13 and AC-14. Switching: . Mechanical5 x 107Electrical2 x 105 (250 VAC, 2 A, cos φ = 0.4): . Mechanical: 5 x 107. Electrical: 2 x 105 (250 VAC, 2 A, cos φ = 0.4). Input/Output: safe isolation, Rated insulation voltage 252 Veff. Input/AS-Interface: Switch position INT: None Switch setting EXT: safe isolation, rated insulation voltage 92 Veff. Output/Output: Basic insulation, rated insulation voltage 250 Veff, in phase. Output/AS-Interface: safe isolation, Rated insulation voltage 252 Veff. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007: . Directive 2014/30/EU: EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007. Low voltage: . Directive 2006/95/ECEN 60664-1:2007: . Directive 2006/95/EC: EN 60664-1:2007. Galvanic isolation: EN 60664-1:2007. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. Electrical safety: IEC 61140:2009. Input: EN 61131-2:2004. Emitted interference: EN 61000-6-4:2007. AS-Interface: EN 62026-2:2013. Noise immunity: EN 61000-6-2:2005, EN 61326-1:2006, EN 62026:2013. Profile: S-7.0. IO code: 7. ID code: 0. ID1 code: F. ID2 code: E. Data bits (function via AS-Interface): InputOutput. D0 IN1 O1D1 IN2 O2D2 IN3 O3D3 IN4 O4: . D0: IN1 O1. D1: IN2 O2. D2: IN3 O3. D3: IN4 O4. Parameter bits (programmable via AS-i): function. P0Communication monitoringP0 = 0 monitoring = off, the outputs maintain the status if communication failsP0 = 1 monitoring = on, i.e. if communication fails, the outputs are deenergised (default settings)P1Input filterP1 = 0 input filter on, pulse suppression ≤ 2 msP1 = 1 input filter off (default settings)P2Synchronous modeP2 = 0 synchronous mode onP2 = 1 synchronous mode off (default settings)P3not used: . P0: Communication monitoringP0 = 0 monitoring = off, the outputs maintain the status if communication failsP0 = 1 monitoring = on, i.e. if communication fails, the outputs are deenergised (default settings). P1: Input filterP1 = 0 input filter on, pulse suppression ≤ 2 msP1 = 1 input filter off (default settings). P2: Synchronous modeP2 = 0 synchronous mode onP2 = 1 synchronous mode off (default settings). P3: not used. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Relative humidity: 85 % , noncondensing. Climatic conditions: For indoor use only. Altitude: ≤ 2000 m above MSL. Shock and impact resistance: 15 g, 11 ms in 6 spatial directions, 3 shocks 10 g, 16 ms in 6 spatial directions, 1000 shocks. Vibration resistance: 0.35 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles. Pollution degree: 2. Degree of protection: IP20 Installation in an enclosure with a minimum protection class of IP54 required. Connection: Removable push-in terminalsrated connection capacity:rigid: 0.20 mm2 ... 1.5 mm2flexible (without wire end ferrule): 0.20 mm2 ... 2.5 mm2flexible (with wire end ferrule): 0.25 mm2 ... 1.5 mm2. Material: . HousingPA 66-FR: . Housing: PA 66-FR. Mass: 125 g. Dimensions: . Height100 mmWidth18.9 mmLength124 mm: . Height: 100 mm. Width: 18.9 mm. Length: 124 mm. Mounting: DIN mounting rail

Brand	Pepperl Fuchs
Lifecycle status	active
