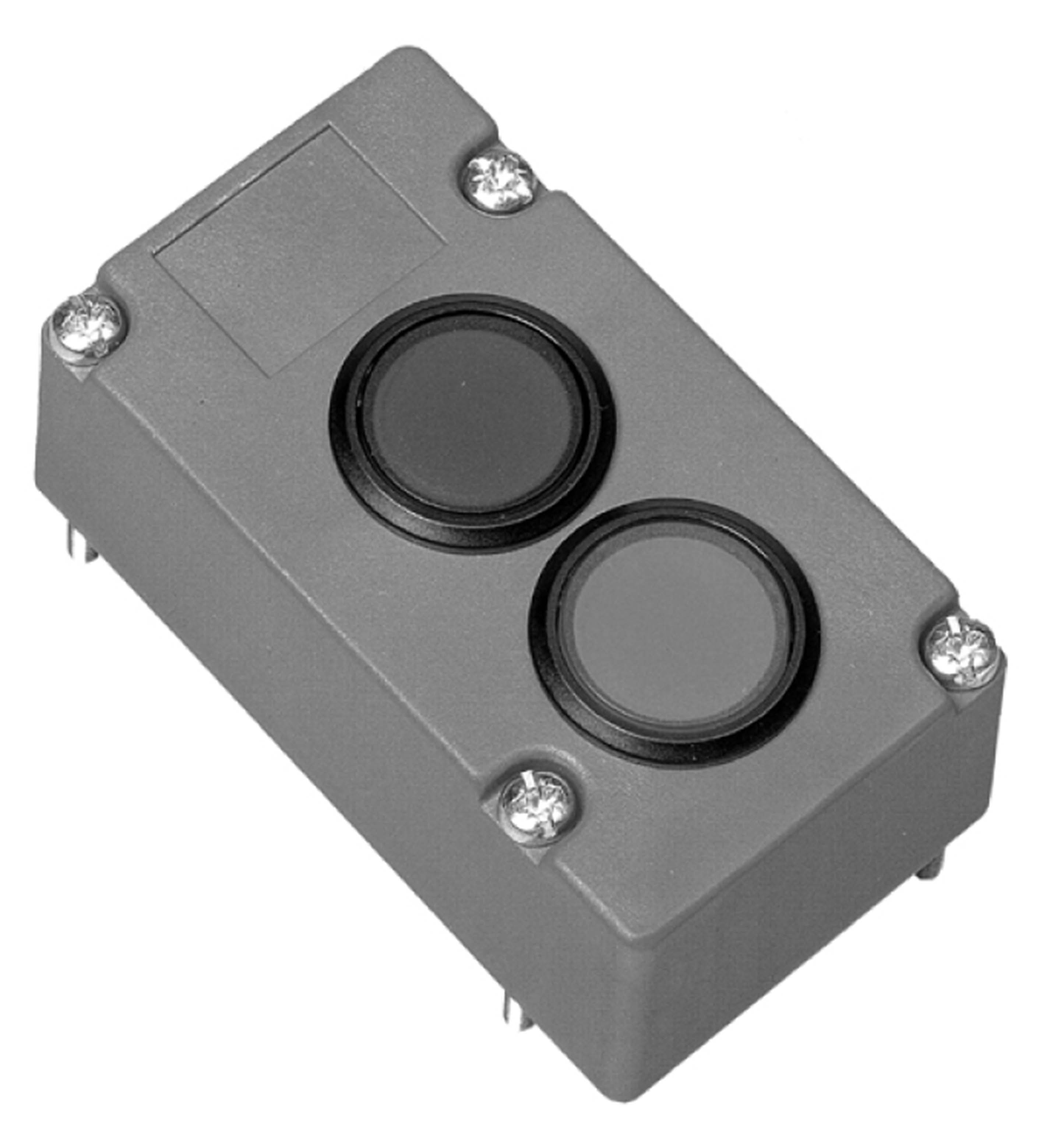

VAA-LT2-G1

AS-Interface pushbutton module. Illuminated pushbutton module. Node type: Standard node. Button: 2 integrated,protected against accidental activation,keys can be individually labelled,labeling field o...

AS-Interface pushbutton module. Illuminated pushbutton module. Node type: Standard node. Button: 2 integrated,protected against accidental activation,keys can be individually labelled,labeling field on the module. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 55 mA (LEDs on). Protection class: III. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013: . Directive 2014/30/EU: EN 62026-2:2013. Degree of protection: EN 60529:2000. AS-Interface: EN 62026-2:2013. Profile: S-3.F. IO code: 3. ID code: F. Data bits (function via AS-Interface): input output. D0 Button 2 red -D1 Button 1 green -D2 - LED 2 redD3 - LED 1 green: . D0: Button 2 red -. D1: Button 1 green -. D2: - LED 2 red. D3: - LED 1 green. Parameter bits (programmable via AS-i): function. P0not usedP1not usedP2not usedP3not used: . P0: not used. P1: not used. P2: not used. P3: not used. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP67 according to EN 60529. Connection: cable piercing method or terminal compartmentflat cable or standard round cable

Brand	Pepperl Fuchs
Lifecycle status	active
