VAA-LT3-F86-V1

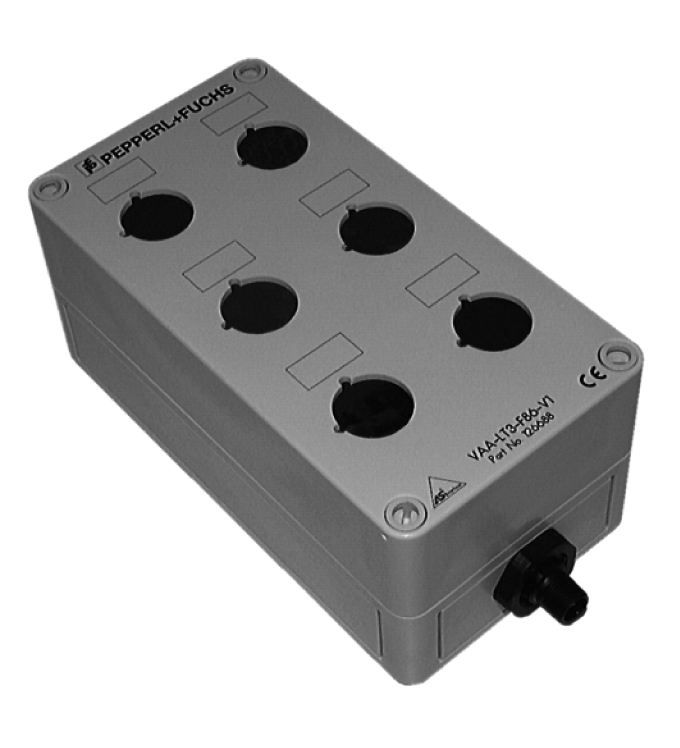

ASi illuminated button module. Luminous push-button module, 4 inputs/4outputs. Node type: Standard node. AS-Interface specification: V2.0. Required gateway specification: ≥ V2.0. Rated operating volta...

ASi illuminated button module. Luminous push-button module, 4 inputs/4outputs. Node type: Standard node. AS-Interface specification: V2.0. Required gateway specification: ≥ V2.0. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 30 mA (without sensors) / max. 180 mA. Protection class: III. Number/Type: 4 inputs for mechanical contacts. Supply: from AS-Interface. Voltage: 21 ... 31 V. Input current: ≤ 8 mA (limited internally). Switching point: according to EN 61131-2 Typ 1. 0 (unattenuated)≤ 1.5 mA1 (attenuated)≥ 4 mA: . 0 (unattenuated): ≤ 1.5 mA. 1 (attenuated): ≥ 4 mA. Number/Type: 4 electronic outputs, PNP. Supply: from AS-Interface. Voltage: 21 ... 31 V. Current: ≤ 100 mA per output, ≤ 140 mA total. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013: . Directive 2014/30/EU: EN 62026-2:2013. Degree of protection: EN 60529:2000. AS-Interface: EN 62026-2:2013. Profile: S-7.0. IO code: 7. ID code: 0. ID1 code: F. ID2 code: E. Data bits (function via AS-Interface): InputOutput. D0 IN1 OUT1D1 IN2 OUT2D2 IN3 OUT3D3 IN4 OUT4: . D0: IN1 OUT1. D1: IN2 OUT2. D2: IN3 OUT3. D3: IN4 OUT4. Parameter bits (programmable via AS-i): function. P0not usedP1not usedP2not usedP3not used: . P0: not used. P1: not used. P2: not used. P3: not used. Ambient temperature: -25 ... 40 °C (-13 ... 104 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP65 in accordance with EN 60529 (with corresponding displays and controls). Connection: M12 round connector

Brand	Pepperl Fuchs
Lifecycle status	active
