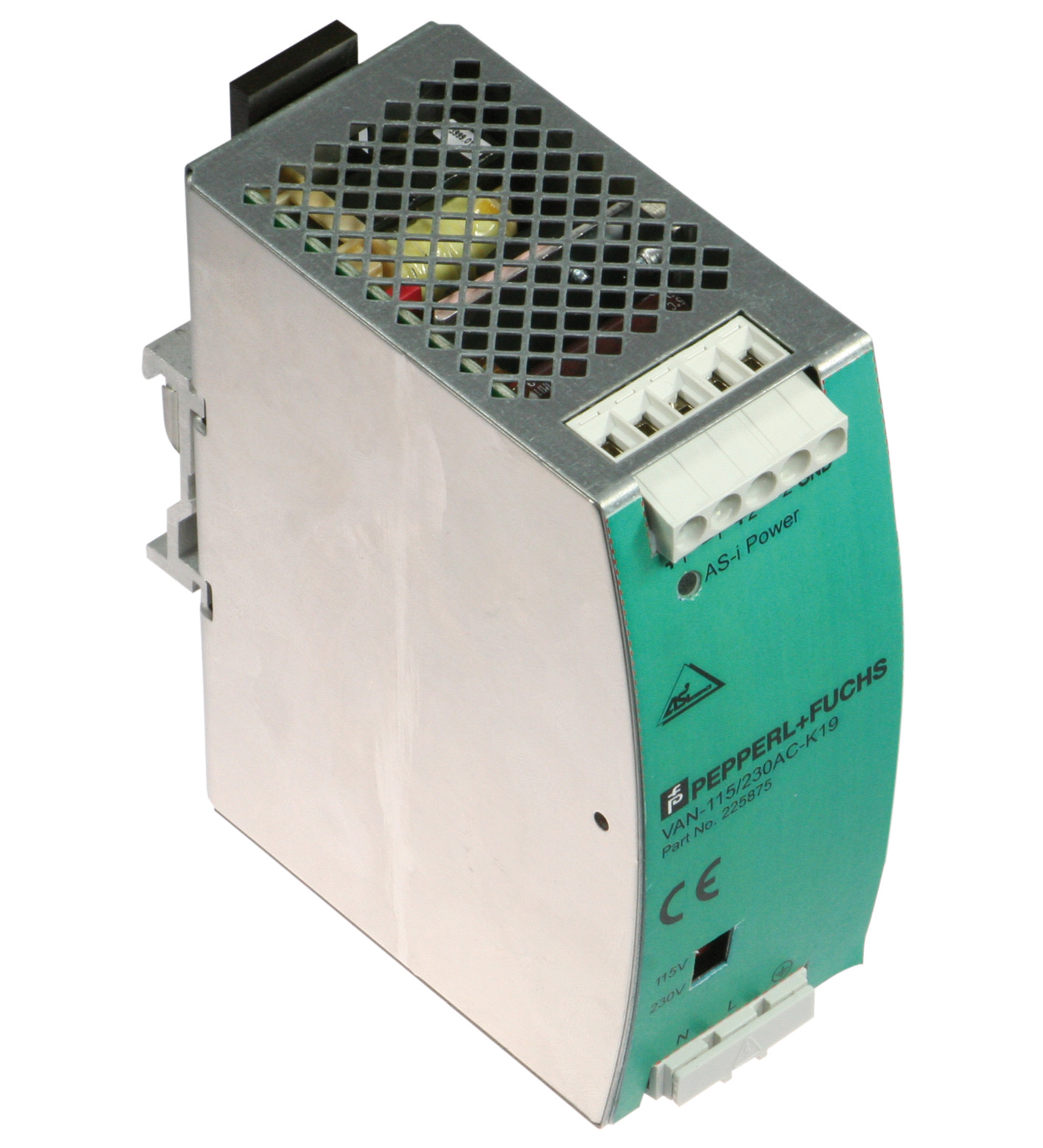

VAN-115/230AC-K19

AS-Interface power supply. AS-Interface power supply, data decoupling, 2.8 A. UL File Number: E223176. MTBF: 221 a. LED AS-i ok: LED green:ON: AS-Interface voltage OKOFF: overload or no supply voltage...

AS-Interface power supply. AS-Interface power supply, data decoupling, 2.8 A. UL File Number: E223176. MTBF: 221 a. LED AS-i ok: LED green:ON: AS-Interface voltage OKOFF: overload or no supply voltage. Fusing: 2.5 AT (not replacable). Capacity factor: > 0.5. Rated operating voltage: nominal: 100 ... 120 VAC/220 ... 240 VACpermissible: 85 ... 132 VAC/184 ... 264 VAC. Rated operating current: 2.0 A at 115 VAC0.9 A at 230 VAC. Supply frequency: 47 ... 63 Hz. Efficiency: 90.5 % (230 VAC, 2.8 A). Current limit: > 3.2 A. Voltage: 30.55 VDC ± 3 % fixed setting. Current: 2.8 A. Residual ripple: ≤ 50 mVss (500 kHz bandwidth, 50-Ω-measurement with ohmic load). Short-circuit current: min. 3.2 A, max. 4.6 A. Directive conformity: . Low Voltage Directive 2006/95/ECEN 60950-1:2006, EN 61204-3:2001EMC Directive 2004/108/ECEN 61000-6-2:2005, EN 61000-6-3:2007, EN 50295:1999: . Low Voltage Directive 2006/95/EC: EN 60950-1:2006, EN 61204-3:2001. EMC Directive 2004/108/EC: EN 61000-6-2:2005, EN 61000-6-3:2007, EN 50295:1999. Standard conformity: . Electromagnetic compatibilityEN 61000-6-2:2005; EN 61000-6-3:2007AS-InterfaceEN 50295:1999, IEC 62026-2:2006Mech. capacityEN 60068-2-6:2008Shock and impact resistanceEN 60068-2-27:1995: . Electromagnetic compatibility: EN 61000-6-2:2005; EN 61000-6-3:2007. AS-Interface: EN 50295:1999, IEC 62026-2:2006. Mech. capacity: EN 60068-2-6:2008. Shock and impact resistance: EN 60068-2-27:1995. Ambient temperature: -10 ... 70 °C (14 ... 158 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Shock and impact resistance: 15g/6 ms10g/11 ms. Vibration resistance: 2 ... 17,8 Hz / 1.6 mm 17.8 ... 500 Hz / 2.0 g. Pollution degree: 2 (EN 60950). Degree of protection: IP20. Protection class: I, Protective conductor connection necessary. Connection: Connection terminals, max. conductor cross-section 0.5 ... 6 mm2 (20-10 AWG), Stripping length 7 mm. Mass: approx. 500 g. Dimensions: . Height124 mmWidth49 mmLength102 mm: . Height: 124 mm. Width: 49 mm. Length: 102 mm. Mounting: DIN mounting rail

Brand	Pepperl Fuchs
Lifecycle status	active
