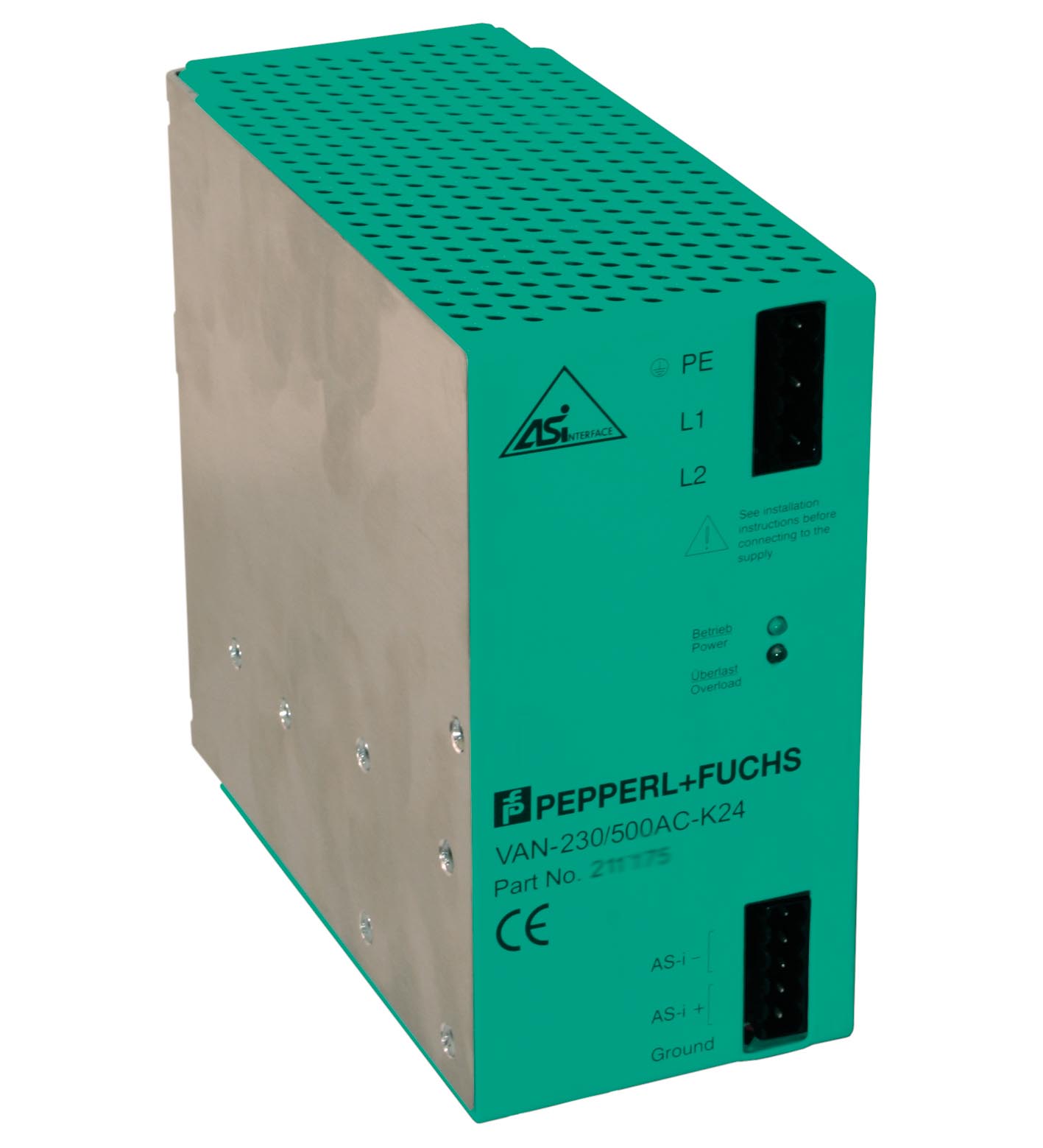

VAN-230/500AC-K24

AS-Interface power supply. AS-Interface power supply, data decoupling, 8 A. LED Overload: Red LEDlights up for overload, flashes for hiccup mode. LED PWR: LED green. Fusing: 3.15 AT (internal). Capaci...

AS-Interface power supply. AS-Interface power supply, data decoupling, 8 A. LED Overload: Red LEDlights up for overload, flashes for hiccup mode. LED PWR: LED green. Fusing: 3.15 AT (internal). Capacity factor: 0.7 Capacitive at 400 VAC. Rated operating voltage: 195 ... 500 V AC. Rated operating current: 1 A at 400 VAC. Supply frequency: 47 ... 63 Hz. Efficiency: 87 %. Nominal voltage: 230/400 VAC. Peak inrush current: < 50 A. Current limit: approx. 8.5 A. Voltage: 31.2 V ±1 %. Current: 8 A. Electromagnetic compatibility: . Directive 2014/30/EUEN 50083-2:2006: . Directive 2014/30/EU: EN 50083-2:2006. Low voltage: . Directive 2014/35/EUEN 61010-1:2010: . Directive 2014/35/EU: EN 61010-1:2010. Degree of protection: IEC 60529:2001. AS-Interface: IEC 62026-2:2006. Noise immunity: EN 61000-6-1:2007, EN 61000-6-2:2005. Standards: Harmonic waves: EN 61000-3-2 Class AInterference suppression: EN 55022, EN 55011 Class BElectrostatic discharge (ESD): IEC 61000-4-2 (8 kV contact discharge, 15 kV air discharge)Electromagnetic fields: IEC 61000-4-3 (EN 61000-4-3; 10 V/m)Burst: IEC 61000-4-4 (4 kV input, 2 kV output/capacitively coupled)Surge: IEC 61000-4-5 (4 kV asymmetrical, 4 kV symmetrical)Conducted interference: IEC 61000-4-6 (10 V, 150 kHz to 80 MHz). Ambient temperature: -10 ... 40 °C (14 ... 104 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Degree of protection: IP20. Protection class: I, Protective conductor connection necessary. Connection: Connection terminals, max. conductor cross-section 0.5 to 2.5 mm2Stripping length 5 to 6 mm. Mass: approx. 1200 g. Dimensions: . Height141 mmWidth70 mmLength151 mm: . Height: 141 mm. Width: 70 mm. Length: 151 mm. Mounting: DIN mounting rail

Brand	Pepperl Fuchs
Lifecycle status	active
