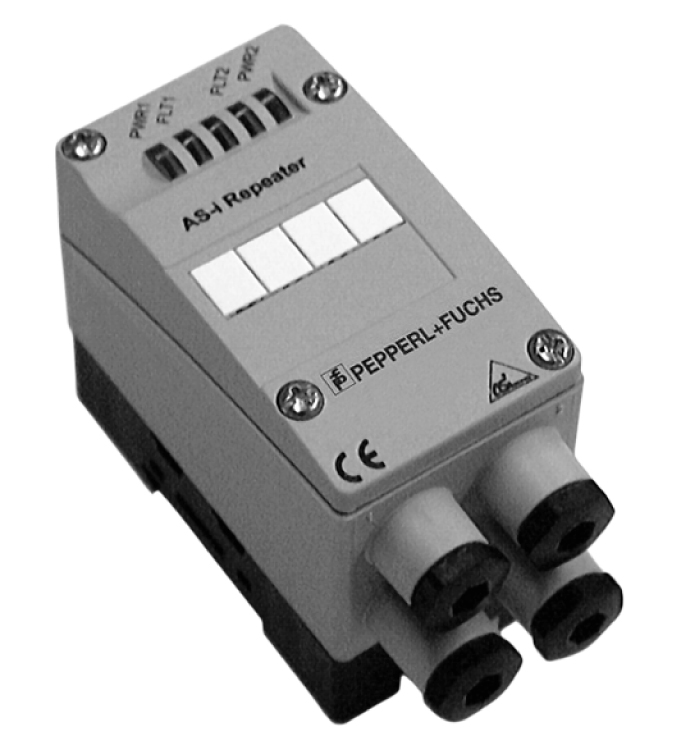

VAR-G4F

AS-Interface repeater. AS-Interface Advanced Repeater. UL File Number: E223772. MTTFd: 160 a at 30 °C. LED FLT: error display; LED redred: communication error. LED PWR: AS-Interface voltage; LED green...

AS-Interface repeater. AS-Interface Advanced Repeater. UL File Number: E223772. MTTFd: 160 a at 30 °C. LED FLT: error display; LED redred: communication error. LED PWR: AS-Interface voltage; LED green. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: 60 mA (per strand element), 120 mA (total). Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013 EN 61000-6-2:2005 EN 61000-6-4:2001: . Directive 2014/30/EU: EN 62026-2:2013 EN 61000-6-2:2005 EN 61000-6-4:2001. Degree of protection: EN 60529:2000. AS-Interface: EN 62026-2:2013. Ambient temperature: -10 ... 55 °C (14 ... 131 °F). Storage temperature: -25 ... 75 °C (-13 ... 167 °F). Degree of protection: IP67. Connection: cable piercing methodflat cable yellow. Material: . HousingPA 6 GF30: . Housing: PA 6 GF30. Mounting: screw mounting

Brand	Pepperl Fuchs
Lifecycle status	active
