Pepperl Fuchs

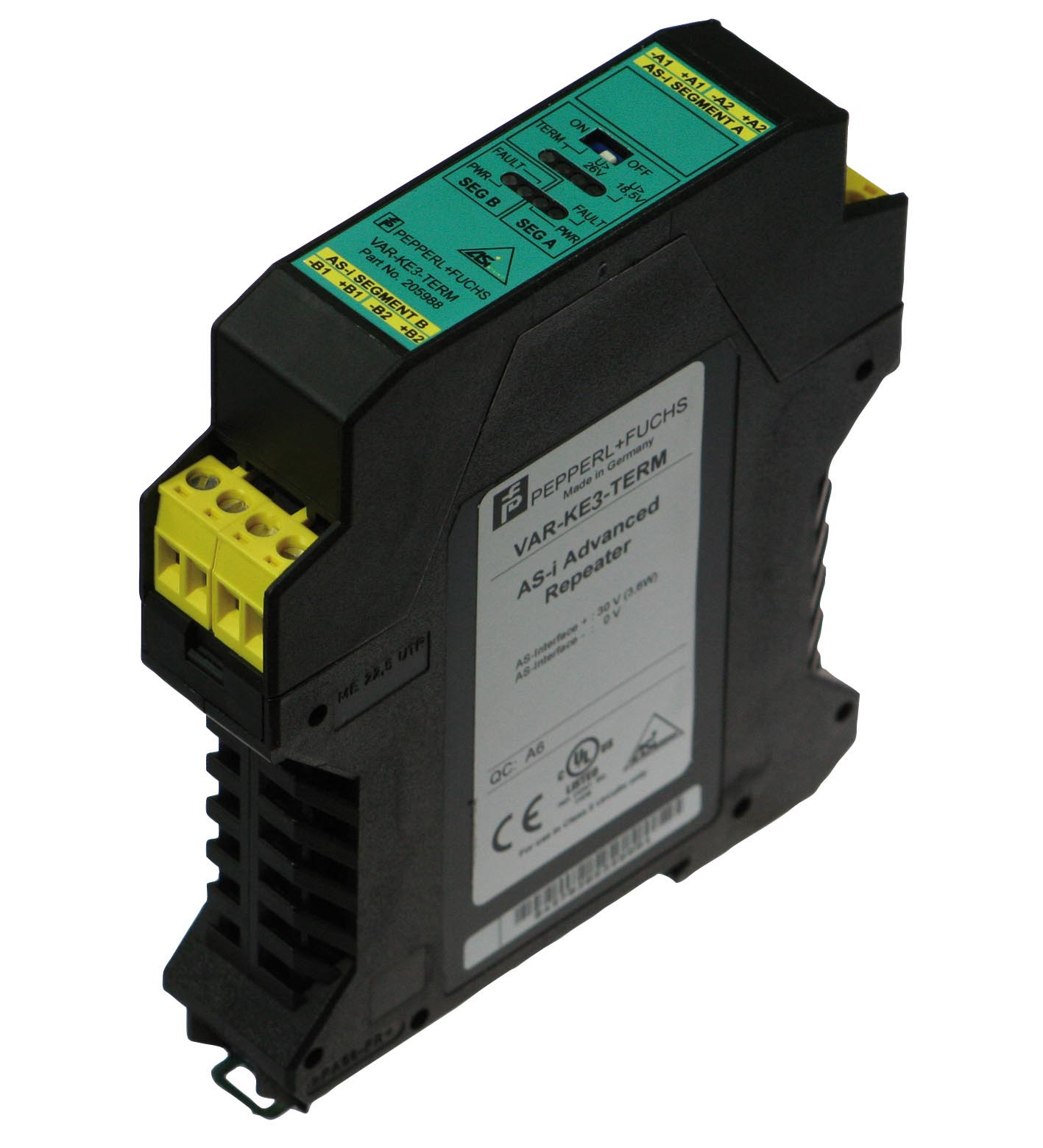

VAR-KE3-TERM

AS-Interface repeater. AS-Interface advanced repeater with terminator. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.0. UL File Number: E223772 only from low voltage, limited energy source (SELV or PELV) or listed Class 2 source. MTTFd: 155 a. Switch: TERM ON/OFF switches the segment A terminator on/off. LED FAULT SEG A: Segment A error display; red LEDred: communication error. LED FAULT SEG B: Segment B error display; red LEDred: communication error. LED PWR SEG A: AS interface voltage segment A; green LED. LED PWR SEG B: AS-Interface voltage segment B; green LED. LED TERM: Segment A bus terminator switched on. LED U>26V: Segment A voltage > 26 V. LED U>18,5V: Segment A voltage > 18.5 V. Insulation voltage: ≥ 500 V. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: 60 mA (per strand element), 120 mA (total). Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007 EN 61000-6-3:2001 IEC 62026-2:2008: . Directive 2014/30/EU: EN 62026-2:2013 EN 61000-6-2:2005, EN 61000-6-4:2007 EN 61000-6-3:2001 IEC 62026-2:2008. UL approval: An isolated source with a secondary open circuit voltage of ≤ 30 VDC with a 3 A maximum over current protection. Over current protection is not required when a Class 2 source is employed. UL mark does not provide UL certification for any functional safety rating or aspects of the device.. Ambient temperature: 0 ... 55 °C (32 ... 131 °F). Storage temperature: -25 ... 75 °C (-13 ... 167 °F). Degree of protection: IP20 according to EN 60529. Connection: removable terminals, terminal connection ≤ 2.5 mm2. Material: . HousingPA 66-FR: . Housing: PA 66-FR. Dimensions: . Height99 mmWidth22.5 mmDepth114 mm: . Height: 99 mm. Width: 22.5 mm. Depth: 114 mm. Mounting: DIN mounting rail

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
