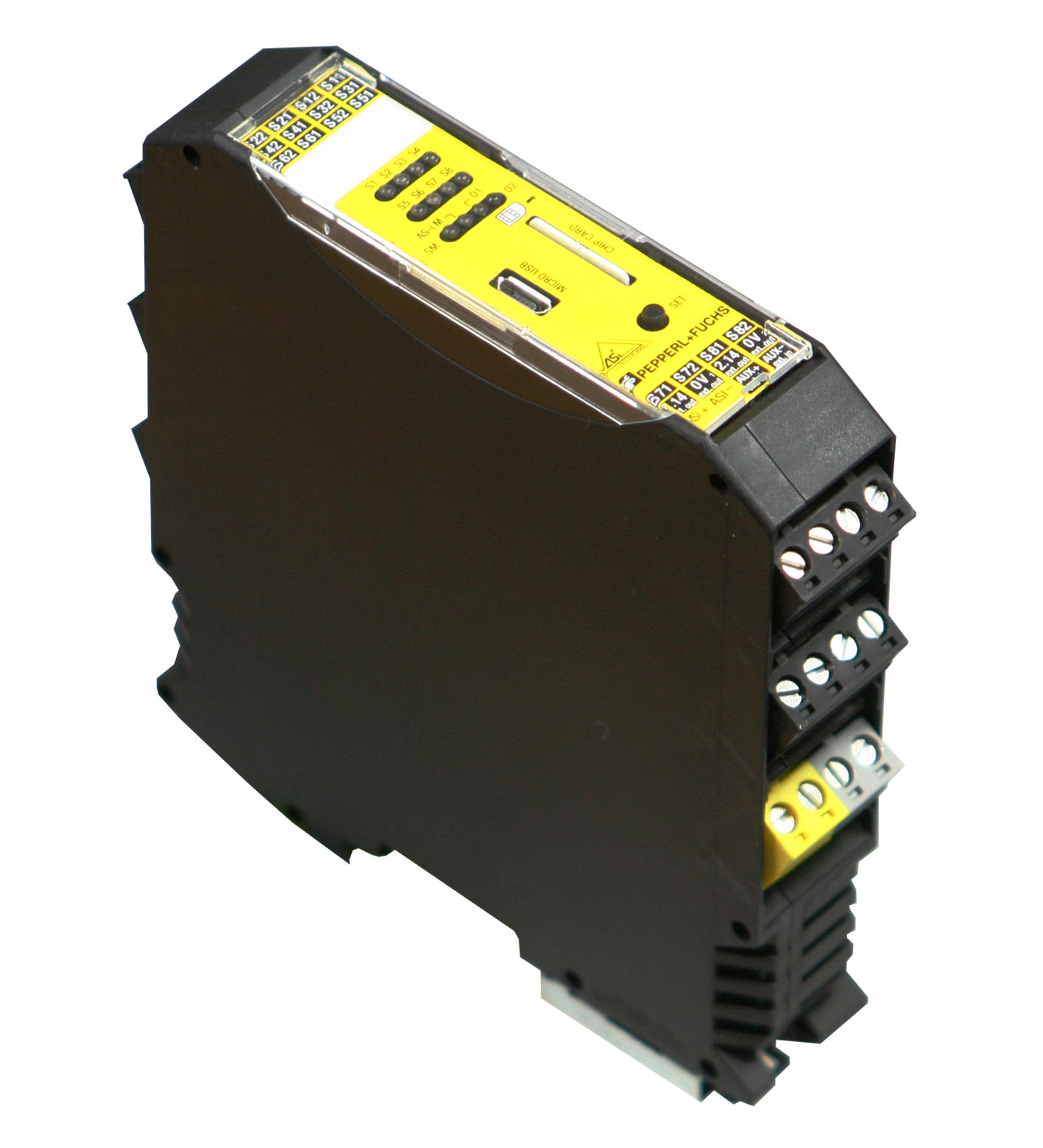

VAS-2A8L-KE4-8SE

AS-Interface Safety Monitor. Safety Monitor, 8 decentralized output circuits. AS-Interface specification: V3.0. UL File Number: E223772. Safety Integrity Level (SIL): SIL 3. Performance level (PL): PL...

AS-Interface Safety Monitor. Safety Monitor, 8 decentralized output circuits. AS-Interface specification: V3.0. UL File Number: E223772. Safety Integrity Level (SIL): SIL 3. Performance level (PL): PL e. Mission Time (TM): 20 a. PFHd: 5.08 E-9. LED SM: Status of safety monitor, multicolored LEDgreen: Safety monitor OK. LED S1 ... S8: Status of inputs S1 ... S8, yellow LED yellow: Contact open. LED O1, O2: Status of outlputs, multicolored LEDyellow: Output on. Auxiliary voltage (input): 20 ... 30 VDC PELV. Insulation voltage: 500 V AS-Interface/UAUX:. Rated operating voltage: 18,0 ... 31.6 V from AS-Interface. Rated operating current: ≤ 200 mA from AS-Interface; ≤ 4 A from AUX. Interface type: Chip card slot. Interface type: Micro USB Programming interface. Number/Type: 8 / 4 safe inputs cat. 4or8 standard inputs. Supply: 24 V UAUX. Current loading capacity: 10 mA per signal output1.4 A OSSD supply output. Input current: Static switching current 4 mA at 24 V, dynamic 30 mA at 24 V (T=100 μs). Number/Type: Output circuits 1 and 2max. contact rating:700 m ADC-13 at 24 V. Supply: 24 V UAUX. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013 EN 61000-6-2:2005/AC:2005EN 61000-6-4:2007/A1:2011: . Directive 2014/30/EU: EN 62026-2:2013 EN 61000-6-2:2005/AC:2005EN 61000-6-4:2007/A1:2011. Machinery Directive: . Directive 2006/42/ECEN 13849-1:2008/AC:2009 EN 62061:2005: . Directive 2006/42/EC: EN 13849-1:2008/AC:2009 EN 62061:2005. Electromagnetic compatibility: EN 50295:1999 EN 61000-6-2:2005/AC:2005EN 61000-6-4:2007/A1:2011. Degree of protection: EN 60529:2000. Electrical safety: IEC 61508:2010 and EN 62061:2005 (up to SIL3) EN 13849-1:2008/AC:2009 EN 61326-3-1:2008. AS-Interface: EN 62026-2:2013. Profile: S-0.B.E. IO code: 0. ID code: B. ID1 code: F. Ambient temperature: 0 ... 55 °C (32 ... 131 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Degree of protection: IP20. Connection: removable terminalsrated connection capacity:rigid/flexible (with and without wire-end ferrules): 0.25 mm2 ... 2.5 mm2for multiple-wire connection with two wires of equal cross-section:flexible with twin wire-end ferrules: 0.5 mm2 ... 1.5 mm2. Material: . HousingPA 66-FR: . Housing: PA 66-FR. Dimensions: . Height99 mmWidth22.5 mmLength113 mm: . Height: 99 mm. Width: 22.5 mm. Length: 113 mm. Mounting: DIN mounting rail

Brand	Pepperl Fuchs
Lifecycle status	active
