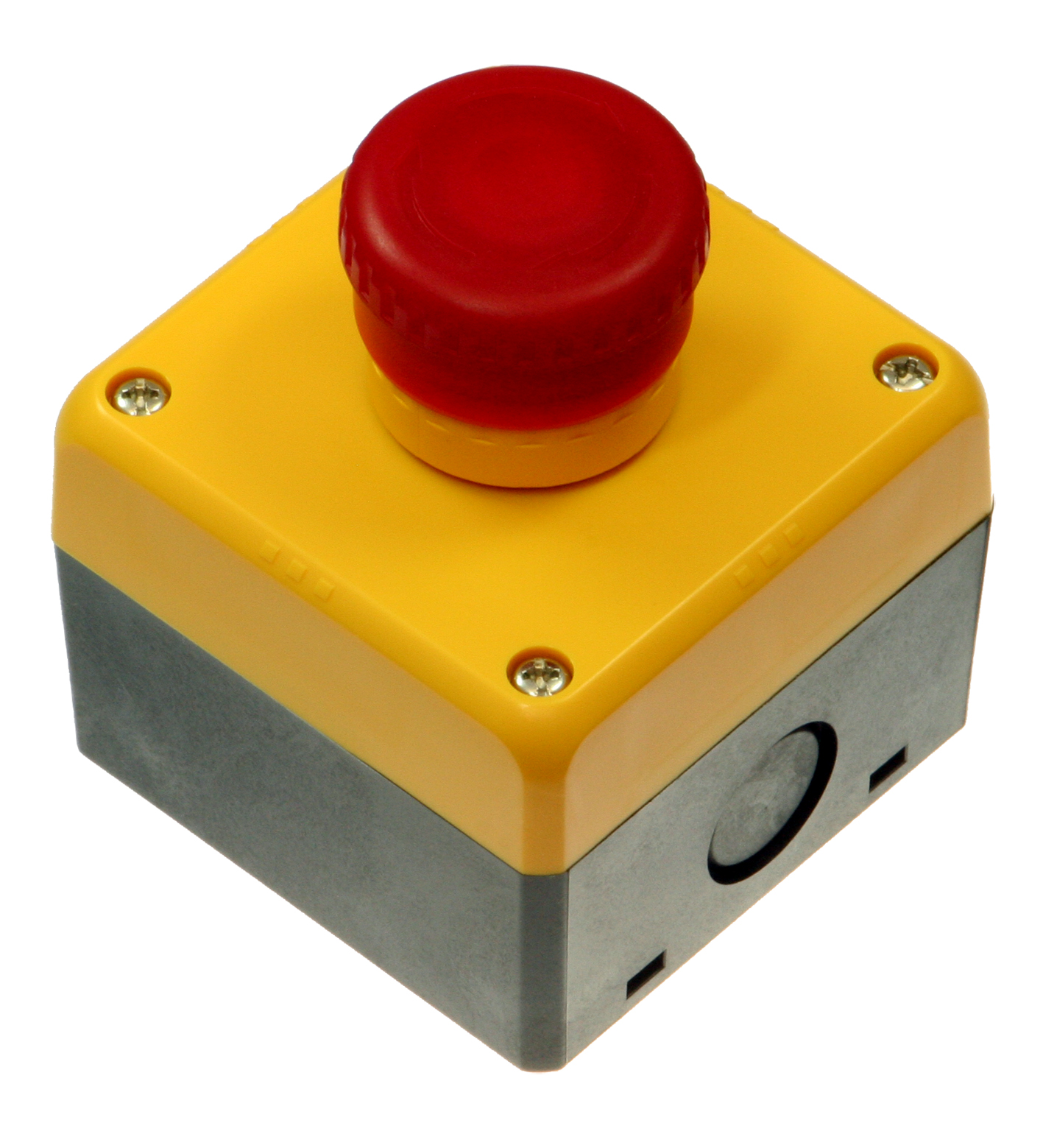

VAZ-2E1A-F85A-S

Emergency stop button. Emergency stop button. B10d: 100000. Rated operating voltage: 24 V AC/DC, ± 10 %. Rated operating current: 14 mA. Insulation resistance: min. 100 MΩ. Number/Type: 2 NC Safety fu...

Emergency stop button. Emergency stop button. B10d: 100000. Rated operating voltage: 24 V AC/DC, ± 10 %. Rated operating current: 14 mA. Insulation resistance: min. 100 MΩ. Number/Type: 2 NC Safety function by positive openingin accordance with IEC/EN 60947-5-1Reset by pulling or turning. Supply: 24 V AC/DC. Number/Type: LED red. Supply: 24 V AC/DC. Directive conformity: . Machinery Directive 2006/42/ECEN ISO 13850:2008 (applicable sections)EN ISO 13849-1:2006 (calculation of B10d value, Appendix C)Low Voltage Directive 2006/95/ECEN 60947-1:2007 EN 60947-5-5/A1:2005: . Machinery Directive 2006/42/EC: EN ISO 13850:2008 (applicable sections)EN ISO 13849-1:2006 (calculation of B10d value, Appendix C). Low Voltage Directive 2006/95/EC: EN 60947-1:2007 EN 60947-5-5/A1:2005. Standard conformity: . Functional safetyEN 60947-1:2007 , EN 60947-5-1:2005, EN 60947-5-5/A1:2005Degree of protectionEN 60529:2000: . Functional safety: EN 60947-1:2007 , EN 60947-5-1:2005, EN 60947-5-5/A1:2005. Degree of protection: EN 60529:2000. Ambient temperature: -20 ... 55 °C (-4 ... 131 °F) (no freezing). Storage temperature: -45 ... 80 °C (-49 ... 176 °F). Relative humidity: 45 ... 80 % , noncondensing. Degree of protection: IP65 (with appropriate cable duct). Connection: screw terminals. Life span: > 250,000 switching operations

Brand	Pepperl Fuchs
Lifecycle status	active
