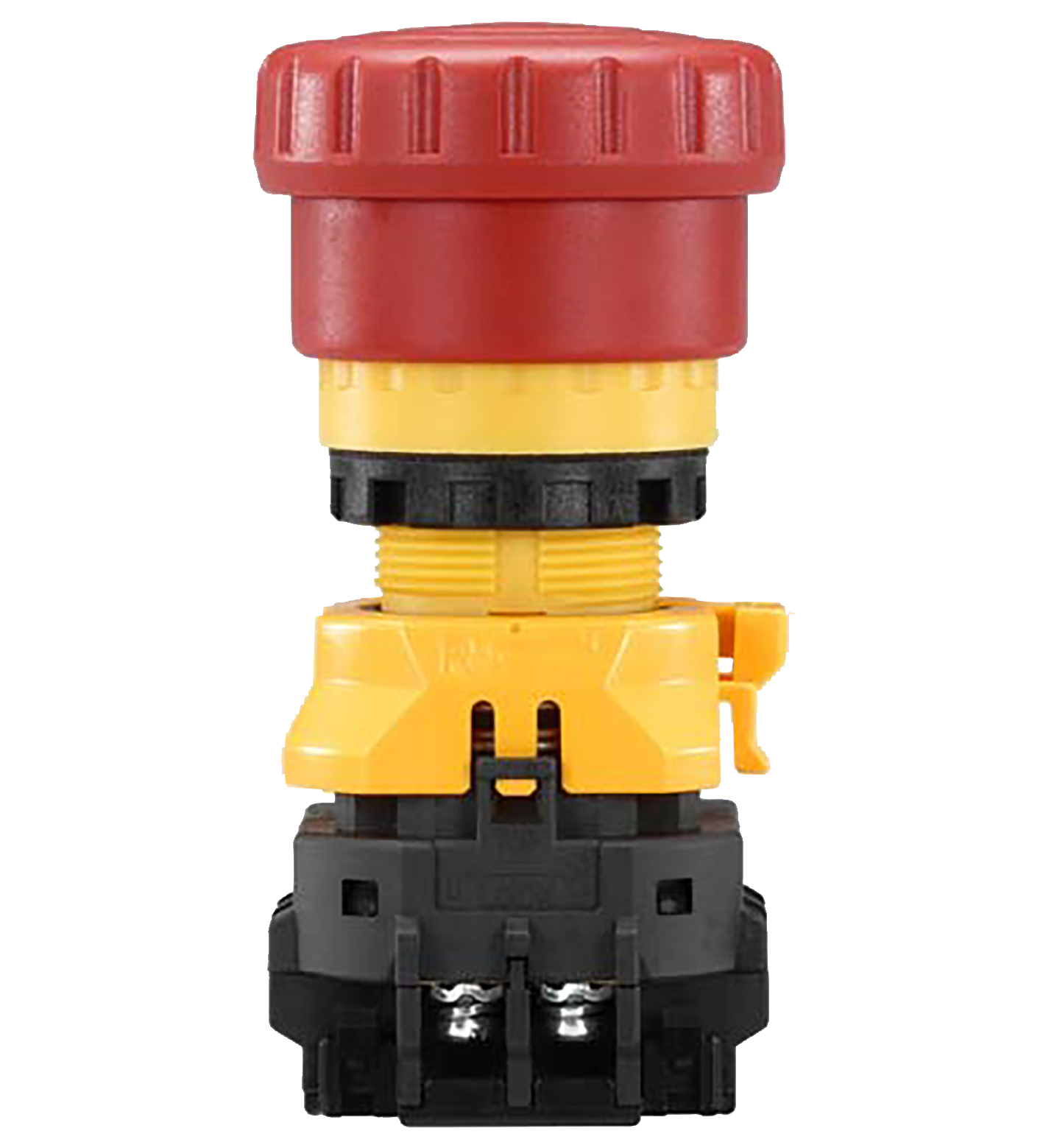

VAZ-2E1A-PM-S

Emergency stop button. Illuminated emergency stop button, 2-channel, force-guided. UL File Number: E198304. MTTFd: 284 a. B10d: 2 E+5. Rated operating voltage: 24 V AC/DC. Rated operating current: 5 A...

Emergency stop button. Illuminated emergency stop button, 2-channel, force-guided. UL File Number: E198304. MTTFd: 284 a. B10d: 2 E+5. Rated operating voltage: 24 V AC/DC. Rated operating current: 5 A. Surge protection: Category II. Insulation resistance: min. 100 MΩ. Bulb: 15 mA. Number/Type: 2 NC Safety function by positive openingin accordance with IEC/EN 60947-5-1Reset by pulling. Number/Type: LED red. Electromagnetic compatibility: . Directive 2014/30/EUIEC 60947-5-5: . Directive 2014/30/EU: IEC 60947-5-5. Degree of protection: IEC 60529. Electrical safety: EN/IEC 60947-5-5. Functional safety: IEC 60947-5-1 IEC 60947-5-5. Ambient temperature: -25 ... 55 °C (-13 ... 131 °F) (no freezing). Storage temperature: -40 ... 80 °C (-40 ... 176 °F). Relative humidity: 45 ... 85 % , noncondensing. Pollution degree: 3. Operating force: Push: 32 N Pull: 21 N Turn: 0.27 Nm Minimum for positive opening: 80 Nm. Operating distance: for positive opening operation: min. 4 mm maximal: 4.5 mm. Degree of protection: IP65 depends on mounting point. Connection: Cable cross section 0.75 mm2 to 1.25 mm2 (AWG 18 to 16) , screw terminals. Installation: Installation in 22 mm hole. Mass: 72 g. Tightening torque, fastening screws: 2 Nm. Tightening torque of clamping screws: 0.6 to 1 Nm. Life span: > 250,000 switching operations

Brand	Pepperl Fuchs
Lifecycle status	active
