Pepperl Fuchs

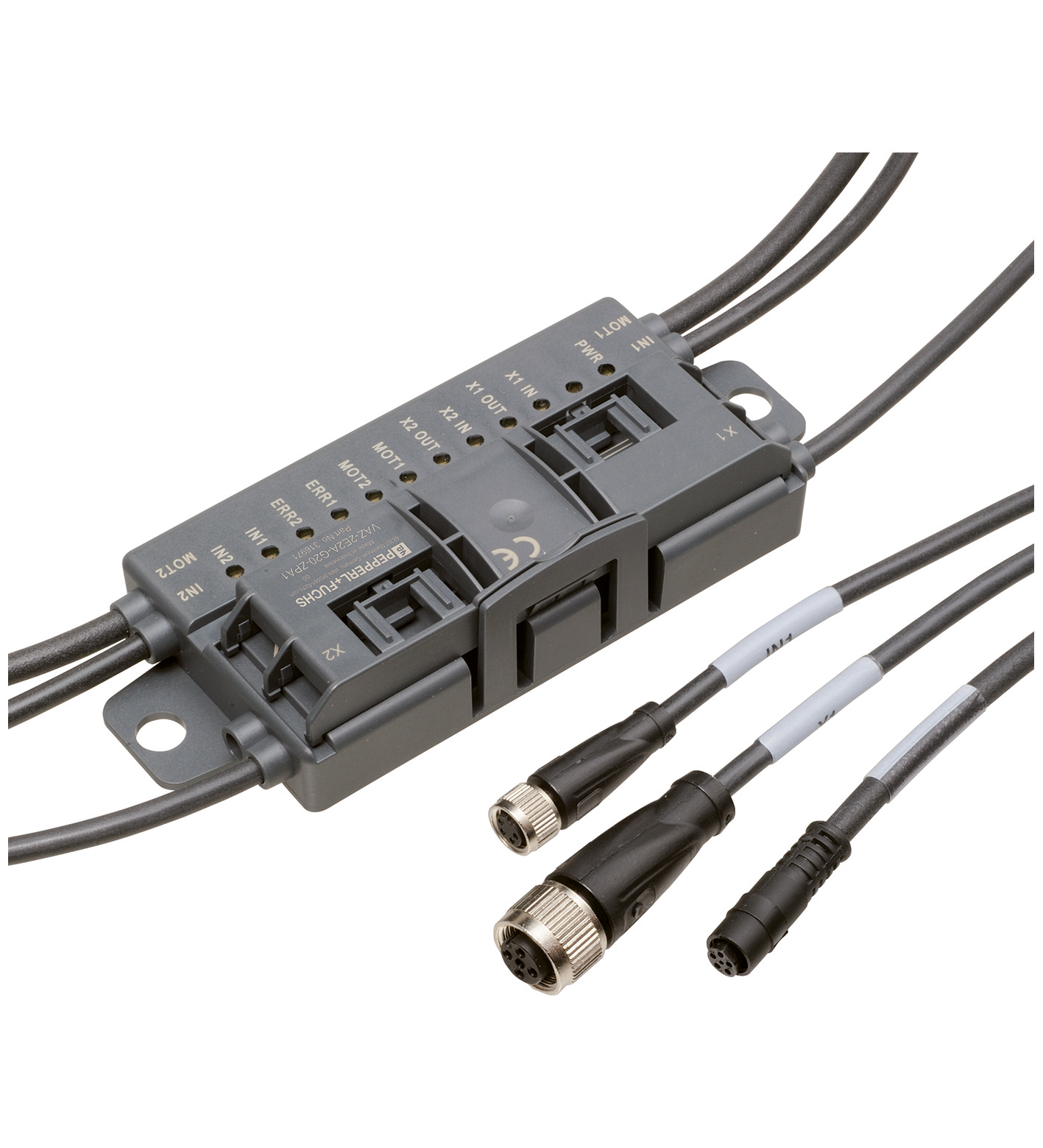

VAZ-2E2A-G20-ZPA1

ZPA Motor Roller Module. Stand-alone G20 MDR module with integrated ZPA logic for 2 digital inputs and 2 connections for MDRs. UL File Number: E223772 "For use in NFPA 79 Applications only". Compatible roller motors: Interroll EC310 Interroll EC5000 24 V AI (20 W / 35 W / 50 W) Rulmeca BL3 Itoh Denki PM500XK Itoh Denki PM500XC PULSEROLLER Senergy-IDC MTA MRD50 (A interface, 24 V to 40 W) WWL R-*-H + CE23XX Conveline RM50. Switch: S1: motor speed; rotary switch, 10 positions S2: direction of rotation and start/stop ramp; rotary switch, 10 positions S3: operating mode, rotary switch, 10 positions. LED ERR: Motor fault; 2 yellow LEDsyellow: motor errorflashing yellow: motor protection unit defective. LED PWR: Supply voltage UPWR; green LED. LED IN: switching state (input); 2 LED yellow. LED MOT: Motor active; 2 yellow LEDs. LED XIN: Zone coupling input active; 2 yellow LEDs. LED XOUT: Zone coupling output active; 2 yellow LEDs. Rated operating voltage: 18 V ... 30 V DC PELV (via UPWR). Rated operating current: ≤ 30 mA (Closed-circuit current) max. 10 A (<2 s). Surge protection: UPWR: overvoltage category II, securely isolated power supply (PELV). Interface type: Interface for coupling zones with one input and one output for control signals X1. Physical: 4-pin M12 socket Electronic output: PNP, overload and short-circuit proof (X1OUT)Input: PNP, galvanically isolated, potential-free (X1IN). Load current: Input: ≤ 8 mA (internally limited)Output: 10 mA. Voltage: Input: max. 30 V DCOutput (via UPWR): ≥ (UPWR - 2 V). Switching point: in accordance with DIN EN 61131-2 (type 1) 0 (undamped): ≤ 0.5 mA 1 (damped): ≥ 2 mA. Interface type: Interface for coupling zones with one input and one output for control signals X2. Physical: M12 connector, 4-pin Electronic output: PNP, overload and short-circuit proof (X2OUT)Input: PNP, galvanically isolated, potential-free (X2IN). Load current: Input: ≤ 8 mA (internally limited)Output: 10 mA. Voltage: Input: max. 30 V DCOutput (via UPWR): ≥ (UPWR - 2 V). Switching point: in accordance with DIN EN 61131-2 (type 1) 0 (undamped): ≤ 0.5 mA 1 (damped): ≥ 2 mA. Number/Type: 2 Inputs for 3-wire sensors (PNP), DC. Supply: via UPWR. Current loading capacity: 500 mA , overload and short-circuit protected. Input current: ≤ 8 mA (limited internally). Switching point: according to DIN EN 61131-2 0 (undamped) ≤ 0.5 mA1 (damped) ≥ 2.0 mA. Input filter: 10 ms. Number/Type: 2 outputs for DC roller motors (MOT1, MOT2). Supply: via UPWR. Current: 3.5 A continuous current , 5 A (<2 s) , max. 7.5 A (<0,3 s) per motor. Overload protection: Fuse 5 A, I2t = 53.7 A2s per motor. Velocity signal: 1.4 … 13 V at no-load Ri = 5.6 kΩ, RLOAD ≥ 35 kΩ Control using rotary switch S1. Rotation direction signal: low: high impedancehigh; ≥ (UPWR - 1.0 V) in no-load operation Ri = 5.6 kΩ, RLOAD ≥ 5 kΩ Control using rotary switch S2. Motor fault: NPN digital input, U0 = 14 V, Ri = 34 kΩ 0 (no error) ≥ 125 µA 1 (error) ≤ 25 µA. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2006: . Directive 2014/30/EU: EN 61326-1:2006. Degree of protection: EN 60529:2000. Input: EN 61131-2:2007. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005 , EN 61326-1:2006. Ambient temperature: -30 ... 60 °C (-22 ... 140 °F). Storage temperature: -30 ... 85 °C (-22 ... 185 °F). Relative humidity: 85 % non-condensing. Climatic conditions: For indoor use only. Altitude: ≤ 2000 m above MSL. Shock and impact resistance: 30 g, 11 ms in 6 spatial directions, 3 shocks 10 g, 16 ms in 6 spatial directions, 1000 shocks. Vibration resistance: 0.75 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles. Pollution degree: 2. Degree of protection: IP65 in accordance with EN 60529 (not certified by UL). Connection: PWR: insulation piercing technologyBlack flat cableInputs/outputs: M8 round plug connector in accordance with EN 61076-2-104Inputs: LF004-GS1-A (4-pin, bushing contacts, screw lock, A-coded)Matching connector: LM004-Gx1-A or similarOutputs: NF005-SS1-B (5-pin, bushing contacts, snap lock, B-coded)Matching connector: NM005-Sx1-B or similar Zone coupling: M12 round plug connector in accordance with EN 61076-2-101X1: M12, 4-pin, bushing contacts, screw-locking, A-codedFemale connector: M12, 4-pin, connector contacts, screw-locking, A-codedX2: M12, 4-pin, connector contacts, screw-locking, A-codedFemale connector: M12, 4-pin, bushing contacts, screw-locking, A-coded. Mass: 310 g. Dimensions: . Height27.5 mmWidth131.5 mmLength54 mm: . Height: 27.5 mm. Width: 131.5 mm. Length: 54 mm. Mounting: 2 clips with ∅ 8 mm drill hole. Cable length: 1 m (inputs/outputs) , 1.5 m (zone coupling), max. 30 m. Note: The flat cable routing is designed for 100 actuation cycles

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request
