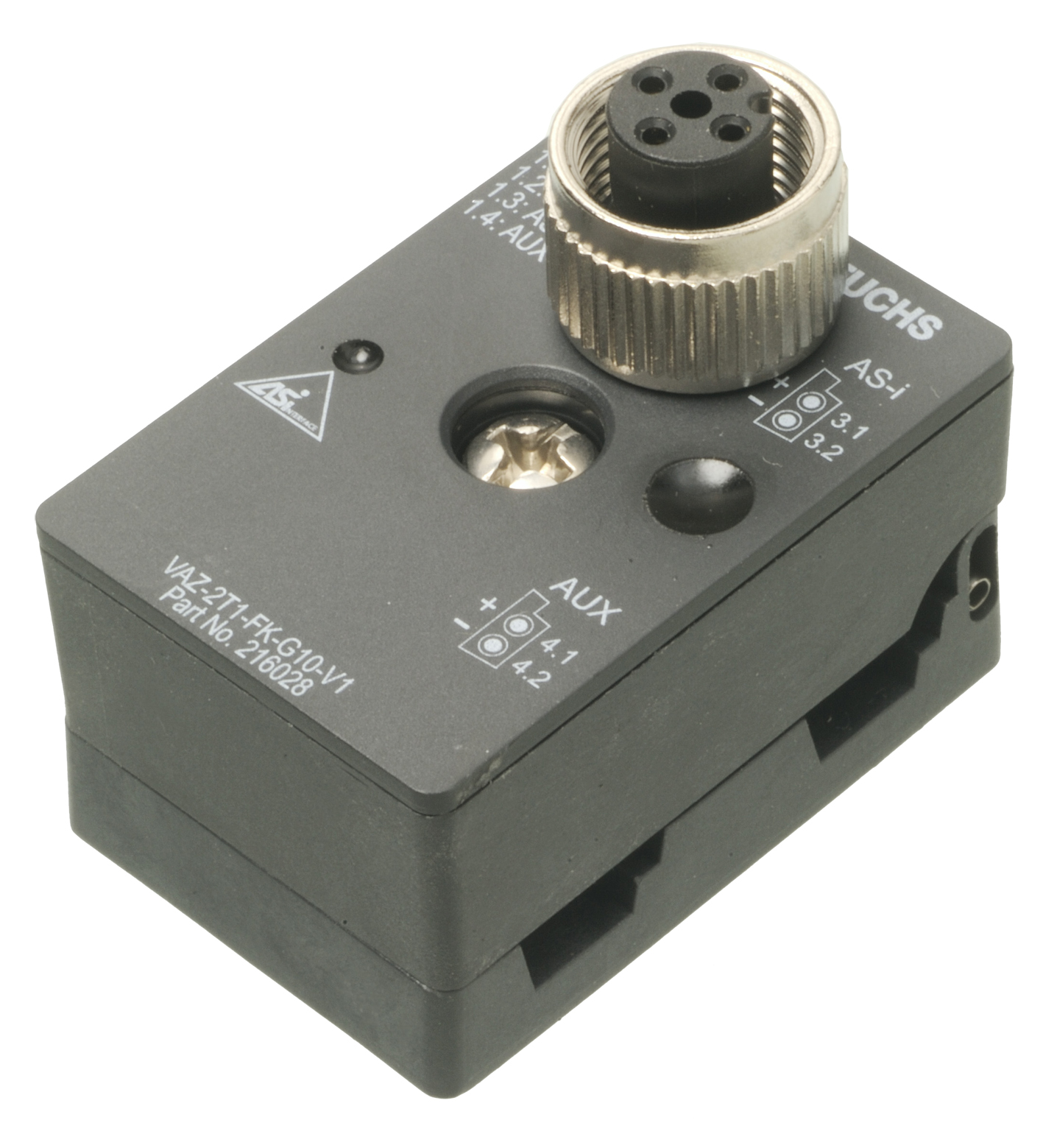

VAZ-2T1-FK-G10-V1

AS-Interface splitter box. Splitter box G10, AS-Interface and auxiliary voltage to M12. Construction type: Socket, straightFlat cable terminals AS-Interface/ext. auxiliary voltage. Rated operating vol...

AS-Interface splitter box. Splitter box G10, AS-Interface and auxiliary voltage to M12. Construction type: Socket, straightFlat cable terminals AS-Interface/ext. auxiliary voltage. Rated operating voltage: ≤ 60 V PELV. Rated operating current: ≤ 4 A AS-Interface, ≤ 4 A AUX. Protection class: III. Surge protection: overvoltage category III. Pulse withstand voltage: 800 V. Standard conformity: . Degree of protectionEN 60529:2000: . Degree of protection: EN 60529:2000. UL approval: cULus Listed, Type 1 enclosure. Applicationfor use in NFPA 79 applicationsMaximum permissible operating voltagemax. 32 V: . Application: for use in NFPA 79 applications. Maximum permissible operating voltage: max. 32 V. UL File Number: E223772. Ambient temperature: -25 ... 75 °C (-13 ... 167 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Pollution degree: 3. Degree of protection: IP67 IP67 / IP68 / IP69K with flat cable VAZ-FK-S-*. Connection: Flat cable AS-Interface: cable piercing methodFlat cable ext. auxiliary voltage UAUX: Insulation penetration technologyPlug connection: M12 x 1 socket (V1). Material: . ContactsCuSn / AuHousingPBT PCMounting screwStainless steel 1.4305 / AISI 303: . Contacts: CuSn / Au. Housing: PBT PC. Mounting screw: Stainless steel 1.4305 / AISI 303. Mass: 45 g. Tightening torque, fastening screws: 1.65 Nm. Dimensions: . Height22 mmWidth27.7 mmLength40.5 mm: . Height: 22 mm. Width: 27.7 mm. Length: 40.5 mm

Brand	Pepperl Fuchs
Lifecycle status	active
