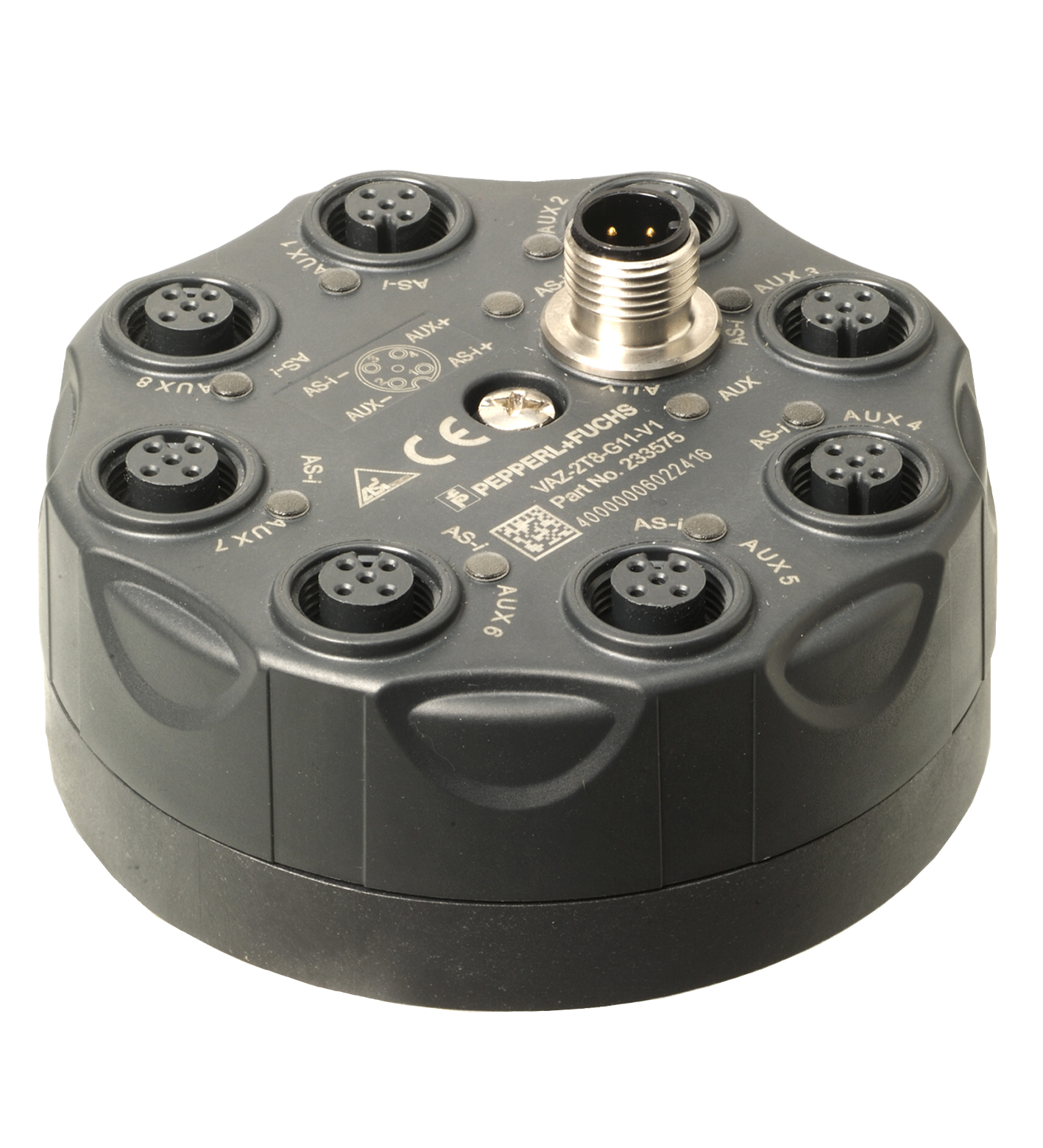

VAZ-2T8-G11-V1

AS-Interface splitter box. Splitter box, M12, AS interface and auxiliary voltage to eight M12 connectors. LED AS-i: AS-Interface voltage; dual LED green/redgreen: voltage OKred: reversed voltage. LED...

AS-Interface splitter box. Splitter box, M12, AS interface and auxiliary voltage to eight M12 connectors. LED AS-i: AS-Interface voltage; dual LED green/redgreen: voltage OKred: reversed voltage. LED AUX: ext. auxiliary voltage UAUX; dual LED green/redgreen: voltage OKred: reverse voltage. Rated operating voltage: ≤ 32 V PELV ( AS-Interface , ext. auxiliary voltage AUX ). Rated operating current: ≤ 4 A. Protection class: III. Surge protection: overvoltage category III. Pulse withstand voltage: 800 V. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013: . Directive 2014/30/EU: EN 62026-2:2013. Degree of protection: EN 60529:2000. AS-Interface: EN 62026-2:2013. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Relative humidity: 85 % , noncondensing. Climatic conditions: For indoor use only. Altitude: ≤ 2000 m above MSL. Pollution degree: 3. Degree of protection: IP67 according to EN 60529. Connection: Plug connection: M12 x 1 socket (V1) Connector: 1 x M12 connector (V1). Material: . ContactsCuSn / AuHousingPBT PCMounting screwStainless steel 1.4305 / AISI 303: . Contacts: CuSn / Au. Housing: PBT PC. Mounting screw: Stainless steel 1.4305 / AISI 303. Mass: 120 g. Tightening torque, housing screws: 1.8 Nm. Tightening torque, cable gland: 0.4 Nm. Dimensions: . Height35 mmDiameter85 mm: . Height: 35 mm. Diameter: 85 mm. Mounting: Mounting plate

Brand	Pepperl Fuchs
Lifecycle status	active
