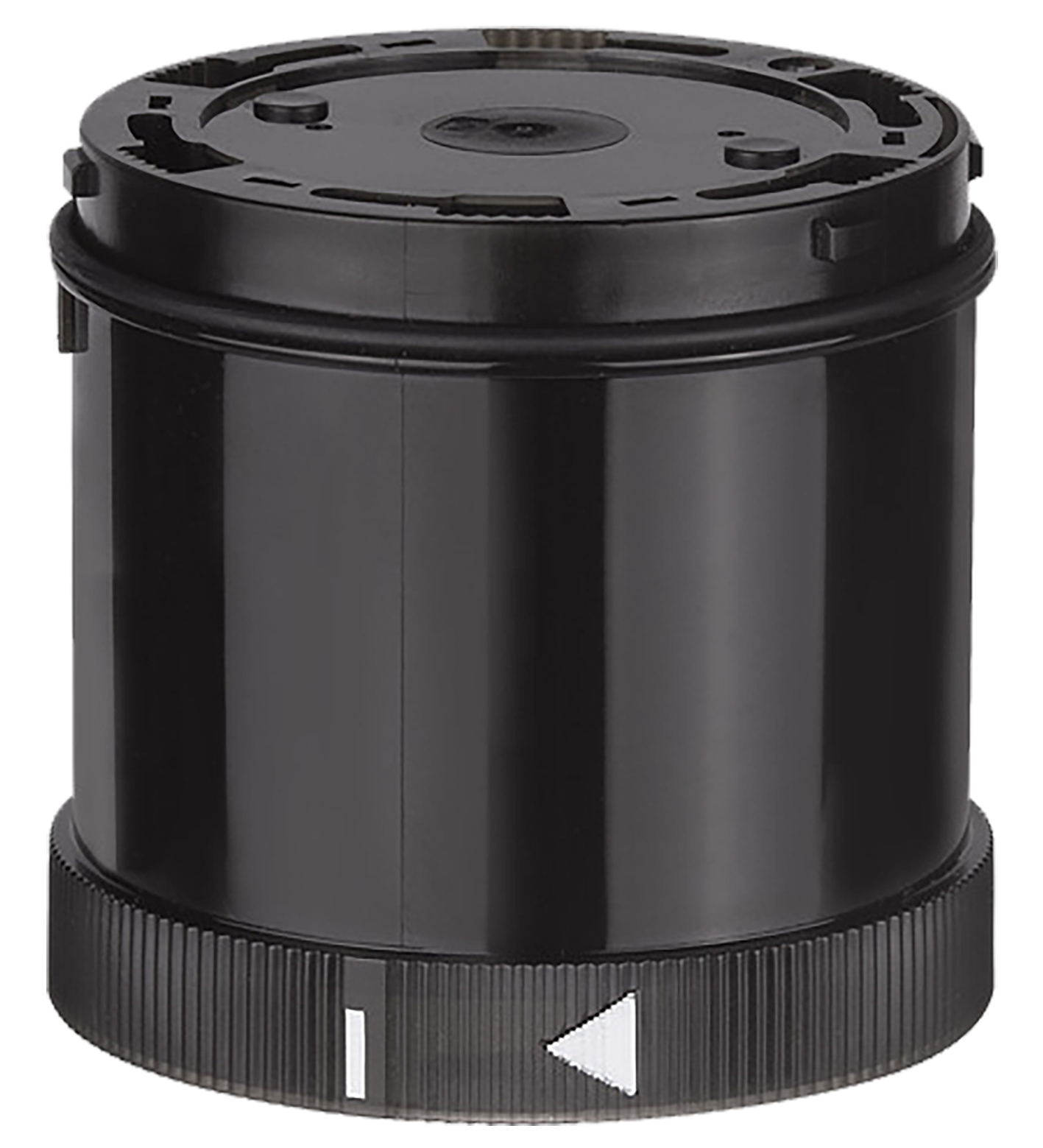

VAZ-70MM-IO

Signal tower connection element IO-Link. Signal tower connection element IO-Link with cover. UL File Number: E223176. Color: black. Rated operating voltage: 24 V DC ± 10 %. Rated operating current: 6...

Signal tower connection element IO-Link. Signal tower connection element IO-Link with cover. UL File Number: E223176. Color: black. Rated operating voltage: 24 V DC ± 10 %. Rated operating current: 6 mA. Current consumption: max. 500 mA per lighting element, max. 2 A in total. Inrush current: 400 mA. Interface type: IO-Link ( via C/Q = pin 4 ). IO-Link revision: 1.1. Vendor ID: 1 (0x0001). Device ID: 983810 (0x0F0302). Transfer rate: COM2 (38.4 kBit/s). Min. cycle time: 5 ms. Process data width: Process data input 0 ByteProcess data output 2 Byte. SIO mode support: no. Compatible master port type: A. Ambient temperature: -30 ... 60 °C (-22 ... 140 °F). Pollution degree: 3. Degree of protection: IP65. Protection class: 2. Connection: Bayonet system. Material: PC. Mass: 58 g. Dimensions: . Height65.5 mmDiameter70 mm: . Height: 65.5 mm. Diameter: 70 mm. Connection possibilities: Spring terminal, max. 1.5 mm2. Life span: max. 50,000 h

Brand	Pepperl Fuchs
Lifecycle status	active
