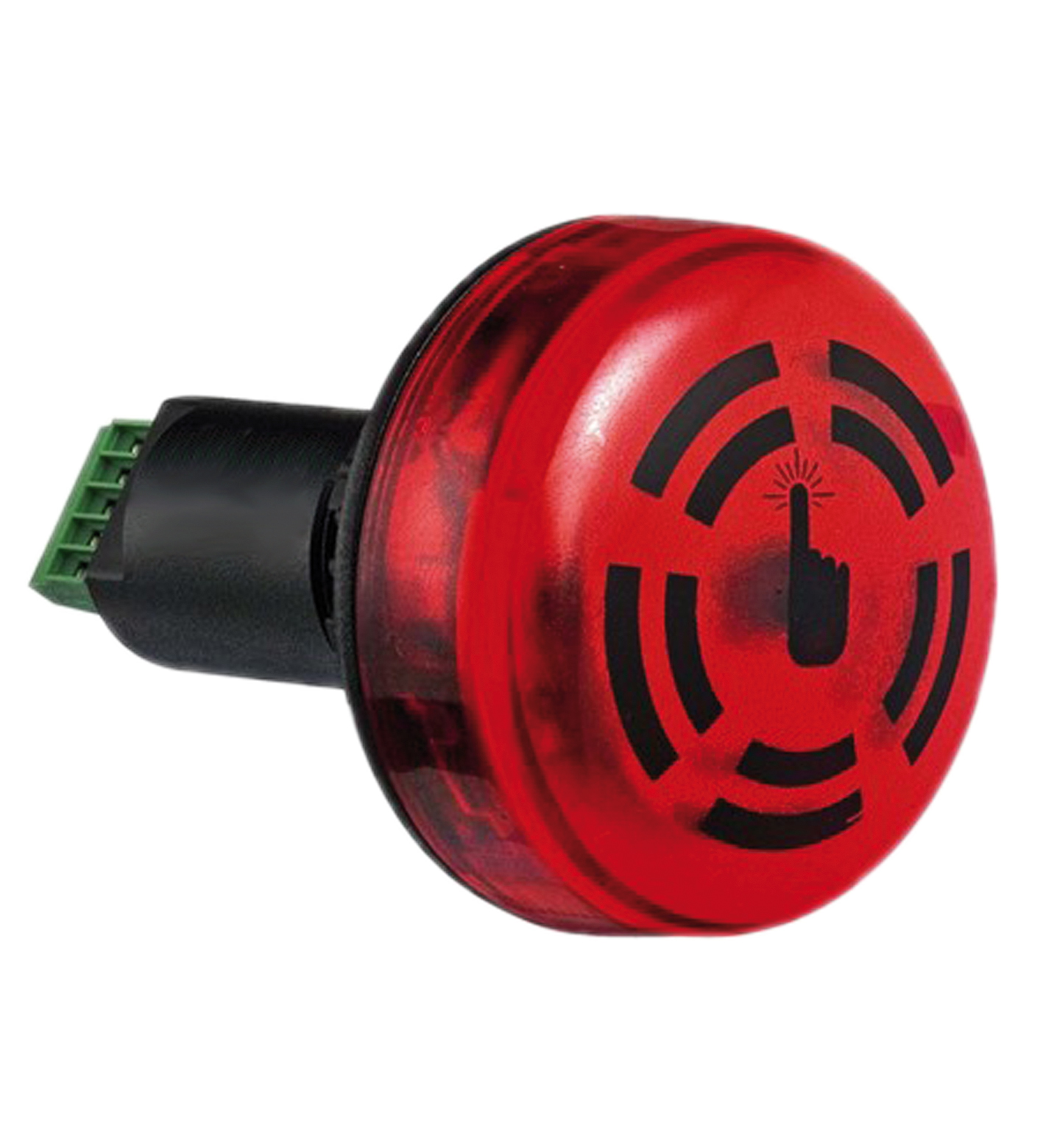

VAZ-BUZZER/LT-RD

buzzer element. buzzer element with acknowledgment. UL File Number: E223176. Color: red. Frequency: 2.8 kHz Continuous signal. Loudness: 80 dB. LED red: active. Rated operating voltage: 24 V DC. Rated...

buzzer element. buzzer element with acknowledgment. UL File Number: E223176. Color: red. Frequency: 2.8 kHz Continuous signal. Loudness: 80 dB. LED red: active. Rated operating voltage: 24 V DC. Rated operating current: ≤ 80 mA. Inrush current: < 500 mA. Directive conformity: . EMC Directive 2004/108/ECEN 60947-5-1:2005 EN 60947-1:2007: . EMC Directive 2004/108/EC: EN 60947-5-1:2005 EN 60947-1:2007. Standard conformity: . Degree of protectionEN 60529:2000: . Degree of protection: EN 60529:2000. Ambient temperature: -20 ... 50 °C (-4 ... 122 °F). Degree of protection: IP65. Connection: plug-in screw terminals Wire cross section: ≤1.5 mm2 fine-strand. Material: PC/ABS. Mass: 40 g. Life span: 50000 h (Acoustic: min. 5000 h)

Brand	Pepperl Fuchs
Lifecycle status	active
