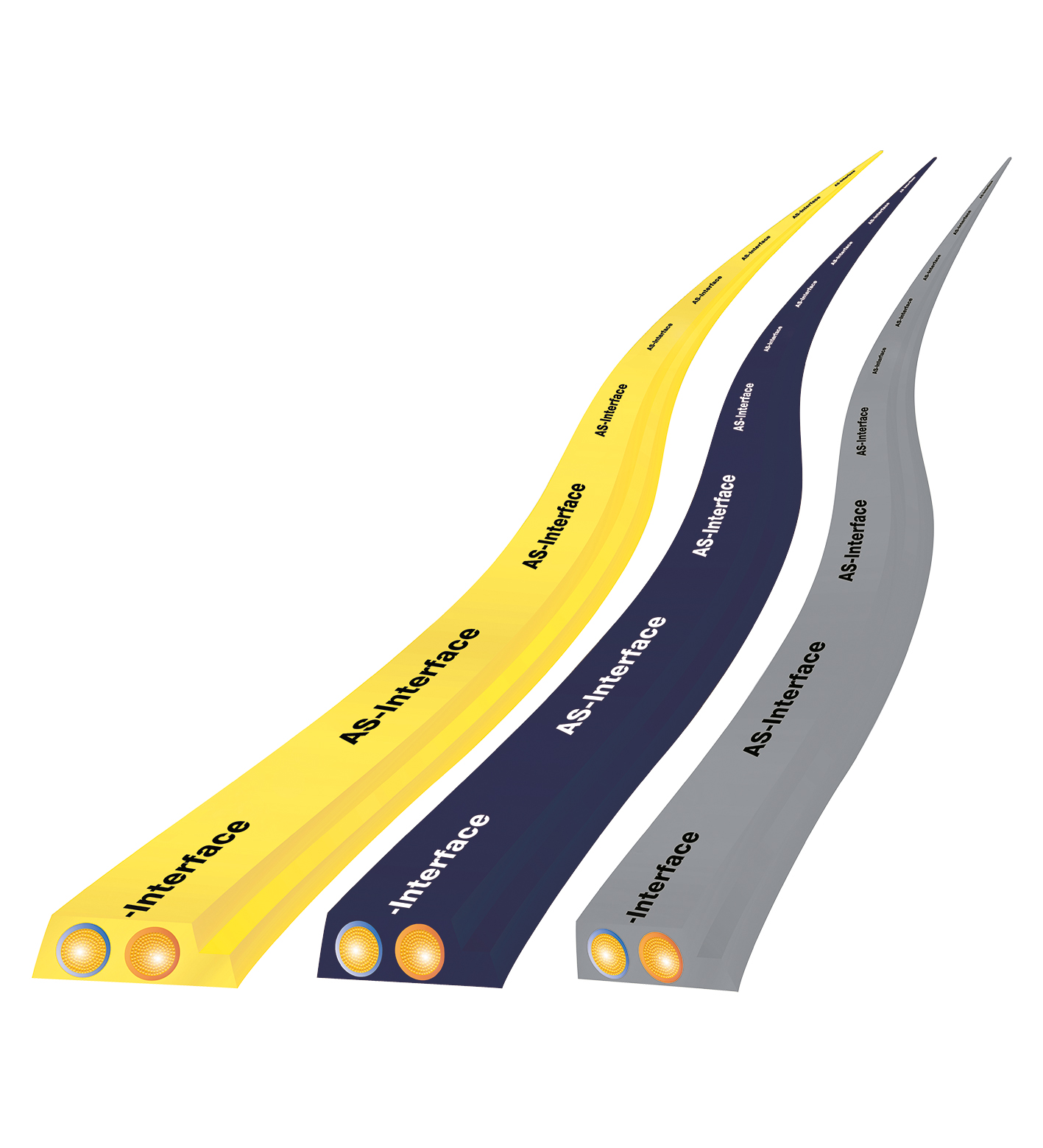

VAZ-FK-*-**

AS-Interface flat cable. AS-Interface flat cable. Nominal voltage: 24 V. Current loading capacity: According to DIN VDE 0298 Part 4, Table 6, Column 4. Conductor temperature: Operating mode: 90 °C (36...

AS-Interface flat cable. AS-Interface flat cable. Nominal voltage: 24 V. Current loading capacity: According to DIN VDE 0298 Part 4, Table 6, Column 4. Conductor temperature: Operating mode: 90 °C (363 K)Short-circuit: 200 °C (473 K). Ambient temperature: -40 ... 85 °C (-40 ... 185 °F) fixed installation,-25 ... 85 °C (-13 ... 185 °F) movable installation. Core cross section: Copper tin-plated, extra-fine wire, class 6 in accordance with DIN VDE 0295cross-section 1.5 mm2. Bending radius: min. permissible bend radii in accordance with DIN VDE 0298 Part 3, Table 2Bending stress only permitted on the wide side of the cable. Tension loading: max. 50 N/mm2 on laying acc. to DIN VDE 0298 Part 3. Cable length: 100 m , also, on request, 1000 m (Trommel). Note: The cable is intended for use as a bus power line in inside areas. Only cable with a black sheathing is suitable for outside use.

Brand	Pepperl Fuchs
Lifecycle status	active
