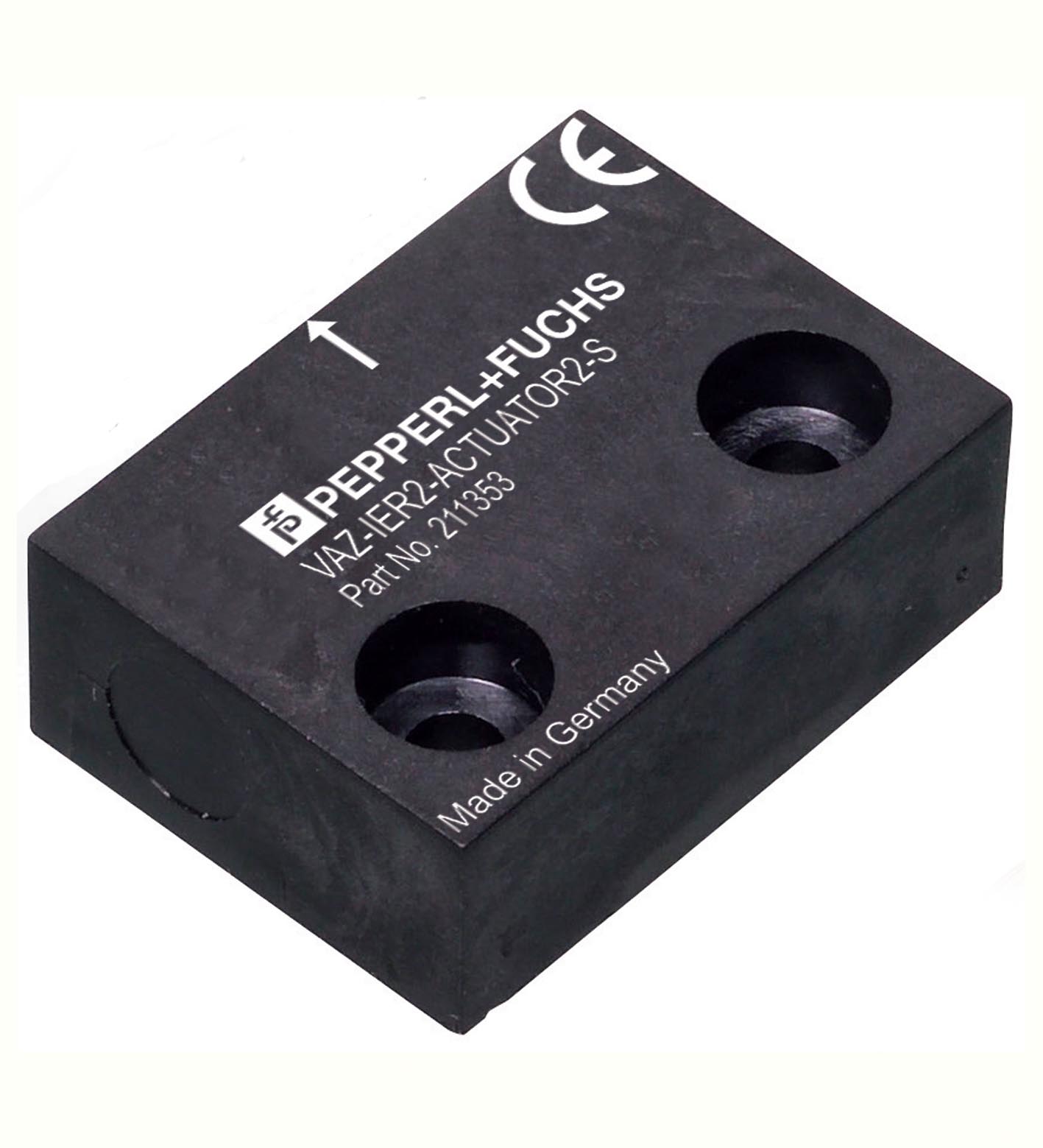

VAZ-IER2-ACTUATOR2-S

Activator. Actuator for non-contact AS-Interface Reed safety switch. Detection type: magnetic. Center offset: ± 2.5 mm at distance s = 3 mm. UL File Number: E155795. Electromagnetic compatibility: . D...

Activator. Actuator for non-contact AS-Interface Reed safety switch. Detection type: magnetic. Center offset: ± 2.5 mm at distance s = 3 mm. UL File Number: E155795. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013 IEC 60947-5-3:1999: . Directive 2014/30/EU: EN 62026-2:2013 IEC 60947-5-3:1999. Machinery Directive: . Directive 2006/42/ECEN ISO 12100-1, -2:2003 EN 1088:1995+A2:2008: . Directive 2006/42/EC: EN ISO 12100-1, -2:2003 EN 1088:1995+A2:2008. Degree of protection: EN 60529:2000. AS-Interface: EN 62026-2:2013. Functional safety: ISO 13849-1:2008 (up to category 3/PL e) EN ISO 12100-1, -2:2003 EN 1088:1995+A2:2008. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Degree of protection: IP67. Material: . HousingPPS: . Housing: PPS. Installation: Active surface facing Read head. Mass: 20 g. Dimensions: . Width26.2 mmDepth13 mmLength36 mm: . Width: 26.2 mm. Depth: 13 mm. Length: 36 mm. Scope of delivery: 1 actuator; 2 safety screws, M4 x 14

Brand	Pepperl Fuchs
Lifecycle status	active
