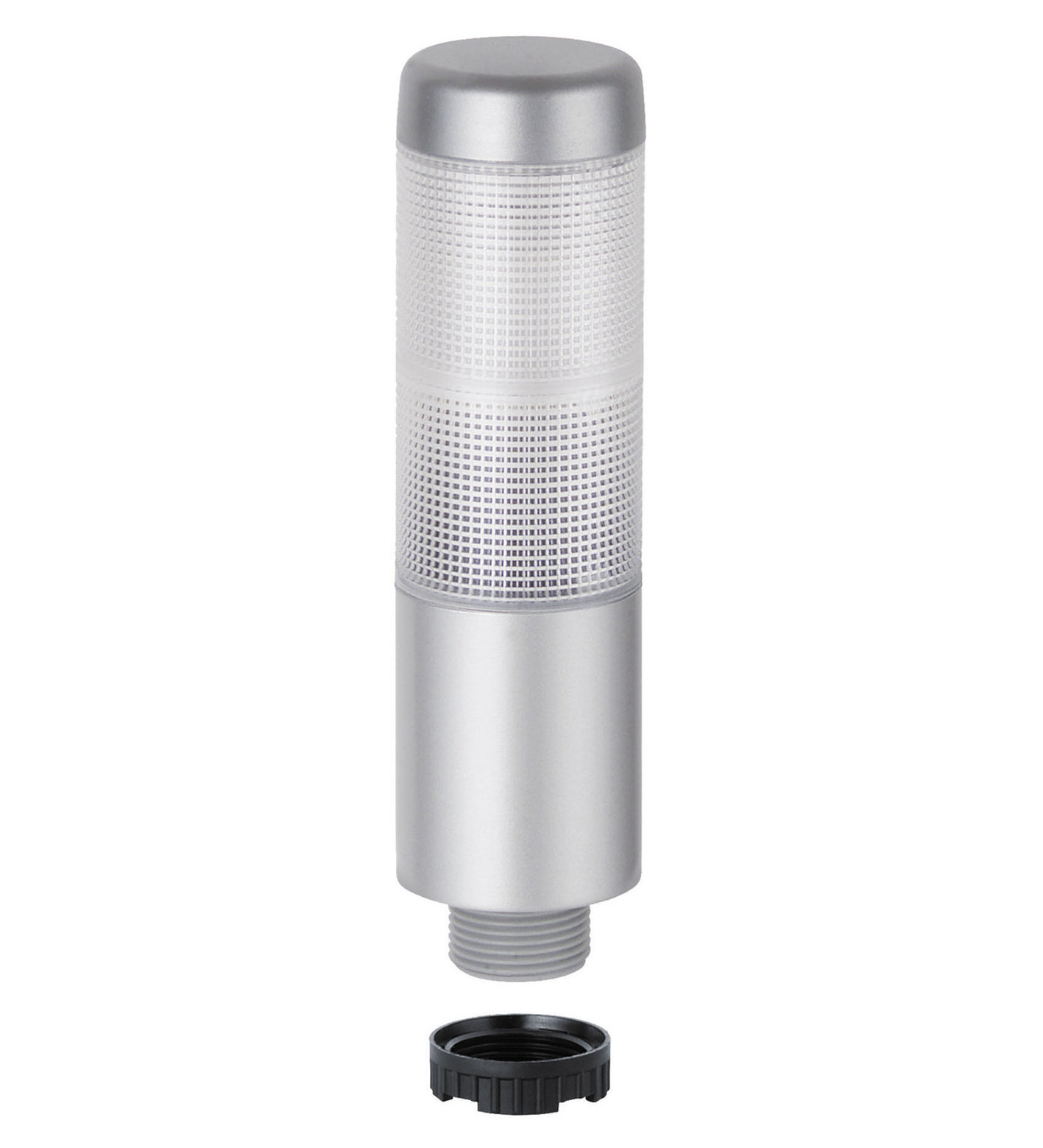

VAZ-LED-38MM-YE-RD-2M

Stack light LED permanent light element. Stack light LED permanent light element, 2-stage signaling. Light type: LED solid. Color: yellow/red. Rated operating voltage: 24 V AC/DC ± 10 %. Rated operati...

Stack light LED permanent light element. Stack light LED permanent light element, 2-stage signaling. Light type: LED solid. Color: yellow/red. Rated operating voltage: 24 V AC/DC ± 10 %. Rated operating current: 60 mA. Supply frequency: 50 Hz. Protection class: II. Inrush current: 500 mA. Ambient temperature: -20 ... 50 °C (-4 ... 122 °F). Pollution degree: 3, in connection area 2. Degree of protection: IP65. Connection: cable. Cable entry: Membrane sleeve, max. core cross section 0.34 mm2/AWG22. Material: PC. Mass: 146 g. Dimensions: . Height141 mmDiameter38 mm: . Height: 141 mm. Diameter: 38 mm. Cable length: 2 m. Life span: max. 50,000 h

Brand	Pepperl Fuchs
Lifecycle status	active
