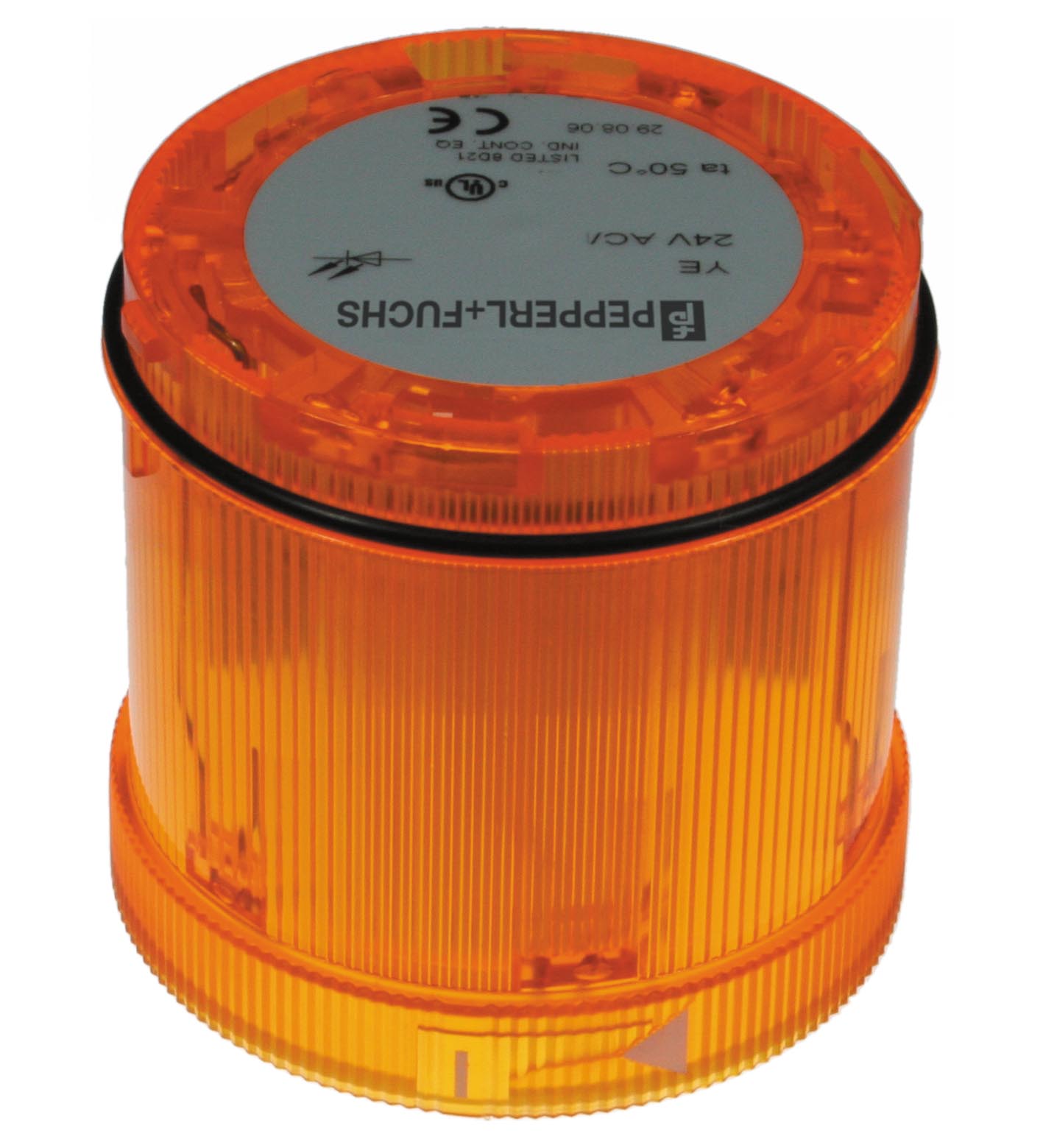

VAZ-LED-70MM-YE

Stack light LED permanent light element. Stack light LED permanent light element, yellow. UL File Number: E223176. Color: yellow. MTTFd: 8700 a. Rated operating voltage: 24 V AC/DC. Rated operating cu...

Stack light LED permanent light element. Stack light LED permanent light element, yellow. UL File Number: E223176. Color: yellow. MTTFd: 8700 a. Rated operating voltage: 24 V AC/DC. Rated operating current: ≤ 30 mA at 24 V DC 30 mA at 30.5 V (AS-Interface). Protection class: III. Electromagnetic compatibility: . Directive 2014/30/EUEN 60947-5-1 EN 60947-1: . Directive 2014/30/EU: EN 60947-5-1 EN 60947-1. Degree of protection: EN 60529. Ambient temperature: -20 ... 50 °C (-4 ... 122 °F). Degree of protection: IP65. Connection: Bayonet system. Dimensions: . Height70 mmDiameter70 mm: . Height: 70 mm. Diameter: 70 mm. Life span: Max. 50,000 hours = 5.7 years (continuous operation)

Brand	Pepperl Fuchs
Lifecycle status	active
