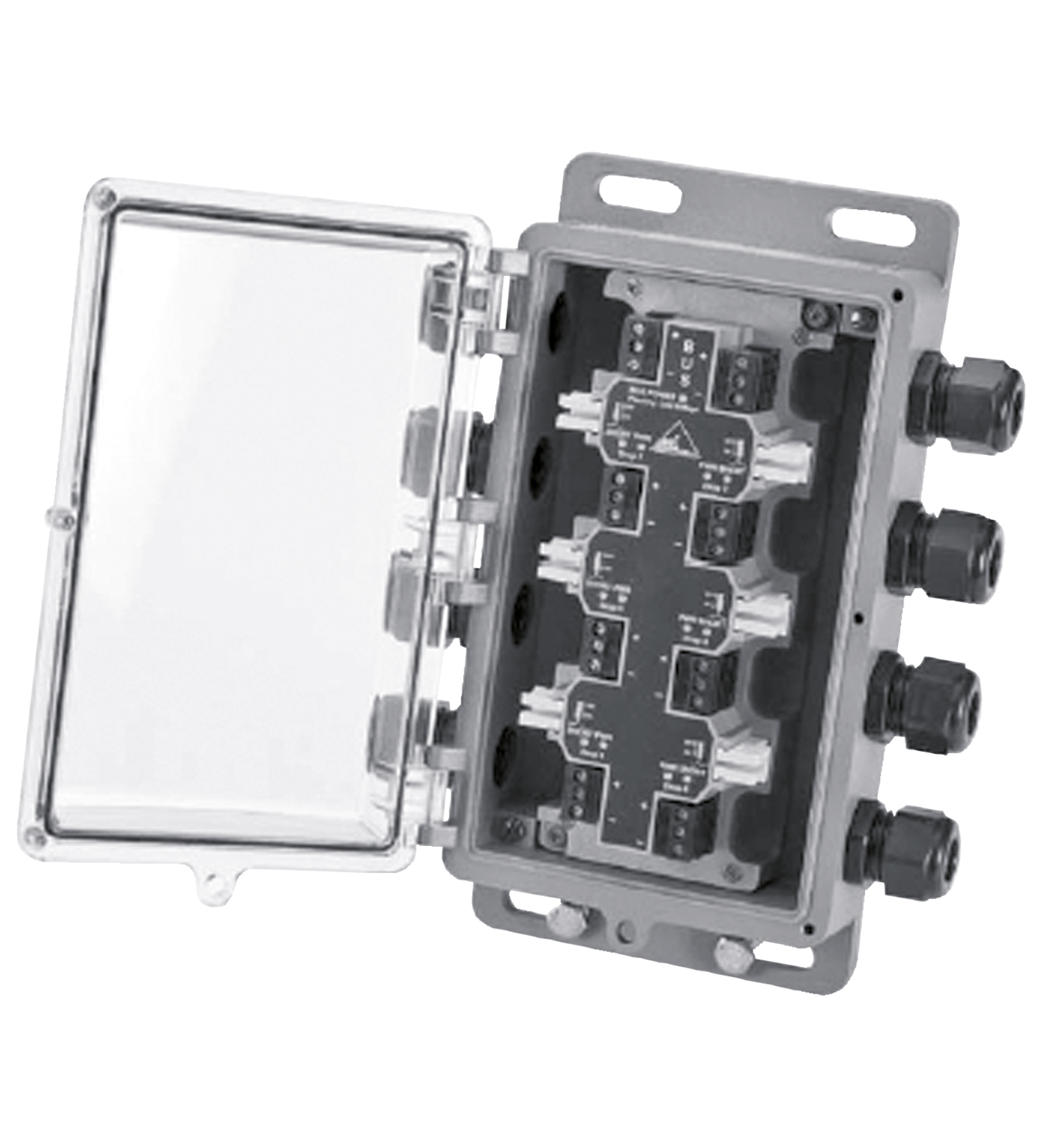

VAZ-RK-P-6TEE-CG

AS-Interface 6 port segment protector. AS-Interface 6 port segment protector. Description: AS-Interface 6 port segment protector. LED Overload: LED red: output overloaded. LED BUS ACTIVE: LED green: f...

AS-Interface 6 port segment protector. AS-Interface 6 port segment protector. Description: AS-Interface 6 port segment protector. LED Overload: LED red: output overloaded. LED BUS ACTIVE: LED green: flashing = low voltage. LED PWR: LED green: port powered. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: 8 A. Maximum safe voltage: 35 V. Protocol: AS-Interface. Number/Type: 6, port segment protector, 1 node each spur connection. Current limit: 28 mA (output off)240 mA (output on) per spur. Voltage drop: < 1 V. Short-circuit current: max. 28 mA. Ambient temperature: -40 ... 80 °C (-40 ... 176 °F). Storage temperature: -40 ... 80 °C (-40 ... 176 °F). Vibration resistance: . Degree of protection: IP67. Connection: 6 Cable glands M20 type. Material: . HousingAnodized aluminum , stainless steel slot head screws , cover Lexan (PC) , Sealing washers: Buna-N (NBR): . Housing: Anodized aluminum , stainless steel slot head screws , cover Lexan (PC) , Sealing washers: Buna-N (NBR)

Brand	Pepperl Fuchs
Lifecycle status	active
