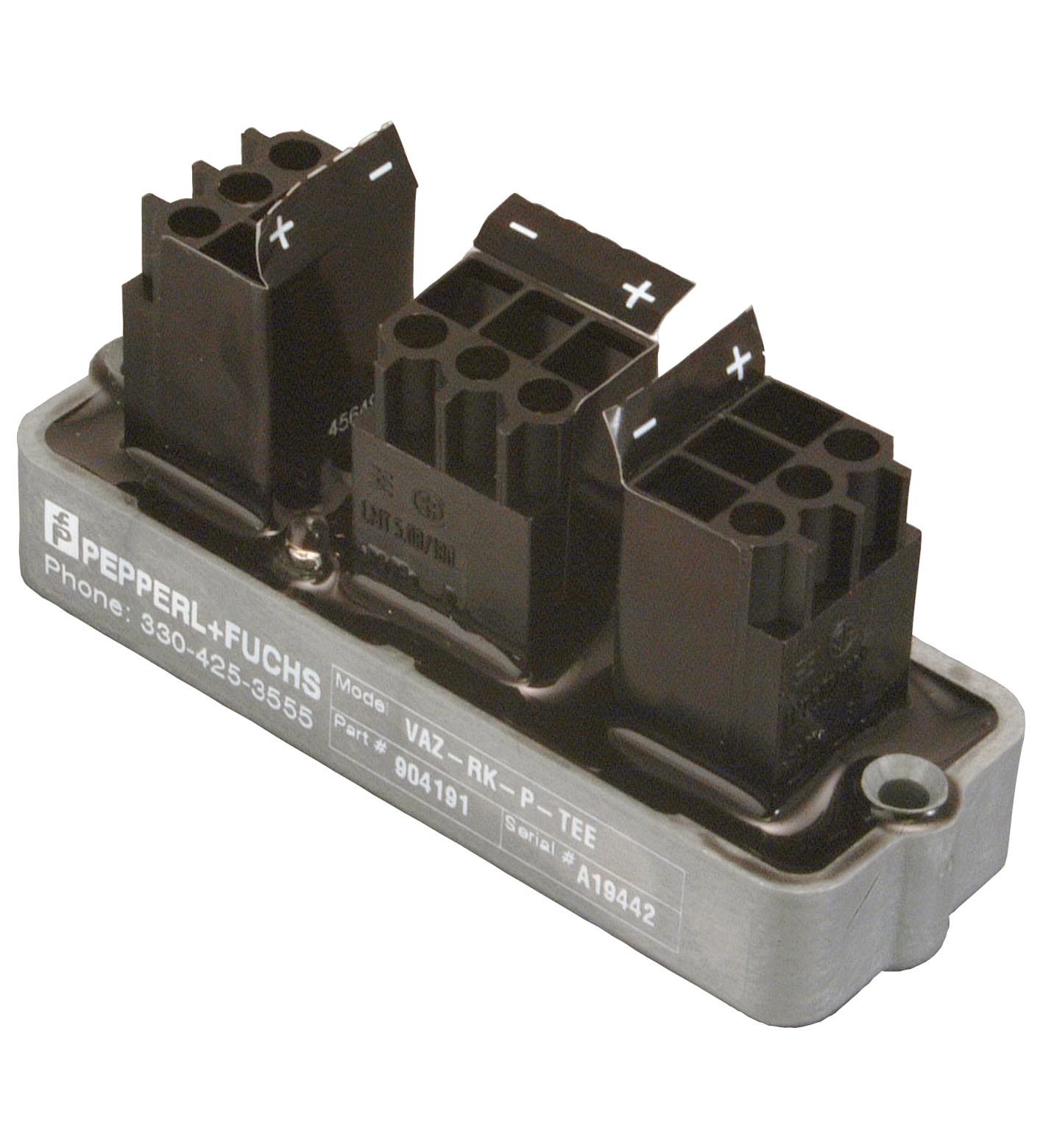

VAZ-RK-P-TEE

Segment Protector for Cabinet Installation. AS-Interface one port segment protector. Description: AS-Interface one port segment protector. LED Overload: Led red: Output overloaded or shorted. Rated op...

Segment Protector for Cabinet Installation. AS-Interface one port segment protector. Description: AS-Interface one port segment protector. LED Overload: Led red: Output overloaded or shorted. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: 8 A. Maximum safe voltage: 35 V. Protocol: AS-Interface. Number/Type: 1/protected drop connection for 1 AS-I node. Current limit: 28 mA (output off)240 mA (output on). Voltage drop: < 1 V. Short-circuit current: max. 28 mA. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP20. Connection: terminals: trunk in, trunk out and 1 drop

Brand	Pepperl Fuchs
Lifecycle status	active
