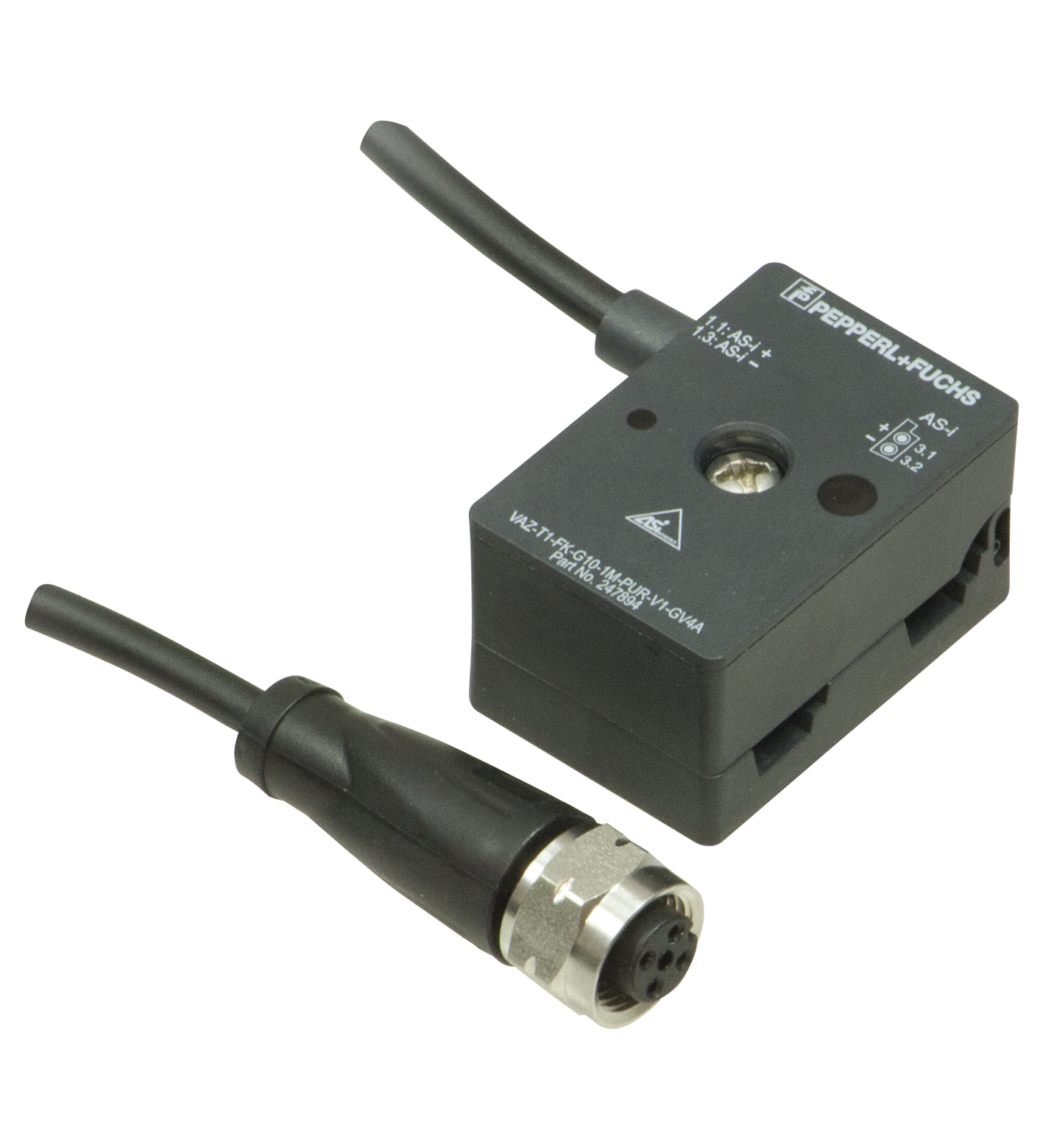

VAZ-T1-FK-G10-1M-PUR-V1-GV4A

AS-Interface splitter box. G10 junction block, AS-Interface to 1x M12 round plug connector with stainless steel cap nut. Construction type: Socket, straightFlat cable terminal AS-Interface. Rated oper...

AS-Interface splitter box. G10 junction block, AS-Interface to 1x M12 round plug connector with stainless steel cap nut. Construction type: Socket, straightFlat cable terminal AS-Interface. Rated operating voltage: ≤ 60 V PELV. Rated operating current: ≤ 4 A. Protection class: III. Surge protection: overvoltage category III. Standard conformity: . Degree of protectionEN 60529:2000: . Degree of protection: EN 60529:2000. UL approval: cULus Listed, Type 1 enclosure. Applicationfor use in NFPA 79 applicationsMaximum permissible operating voltagemax. 32 VMaximum permissible operating currentmax. 3 AMaximum permissible ambient temperaturemax. 55 °C (max. 131 °F): . Application: for use in NFPA 79 applications. Maximum permissible operating voltage: max. 32 V. Maximum permissible operating current: max. 3 A. Maximum permissible ambient temperature: max. 55 °C (max. 131 °F). UL File Number: E223772. Ambient temperature: -25 ... 75 °C (-13 ... 167 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Pollution degree: 3. Degree of protection: IP67 IP67 / IP68 / IP69K with flat cable VAZ-FK-S-*. Connection: Flat cable AS-Interface: cable piercing methodPlug connection: M12 x 1 socket (V1). Material: . ContactsCuSn / AuHousingPBT PCBodyPUR, blackCablePURSlotted nutStainless steel 1.4404 / AISI 316LMounting screwStainless steel 1.4305 / AISI 303: . Contacts: CuSn / Au. Housing: PBT PC. Body: PUR, black. Cable: PUR. Slotted nut: Stainless steel 1.4404 / AISI 316L. Mounting screw: Stainless steel 1.4305 / AISI 303. Cable: . Sheath diameter∅4,3 mmColorblackCores2 x 0.5 mm2LengthL1 m: . Sheath diameter: ∅4,3 mm. Color: black. Cores: 2 x 0.5 mm2. Length: 1 m. Mass: 75 g. Tightening torque, fastening screws: 1.65 Nm. Dimensions: . Height22 mmWidth27.7 mmLength40.5 mm: . Height: 22 mm. Width: 27.7 mm. Length: 40.5 mm. Note: The unused flat cable connector is closed with a seal.

Brand	Pepperl Fuchs
Lifecycle status	active
