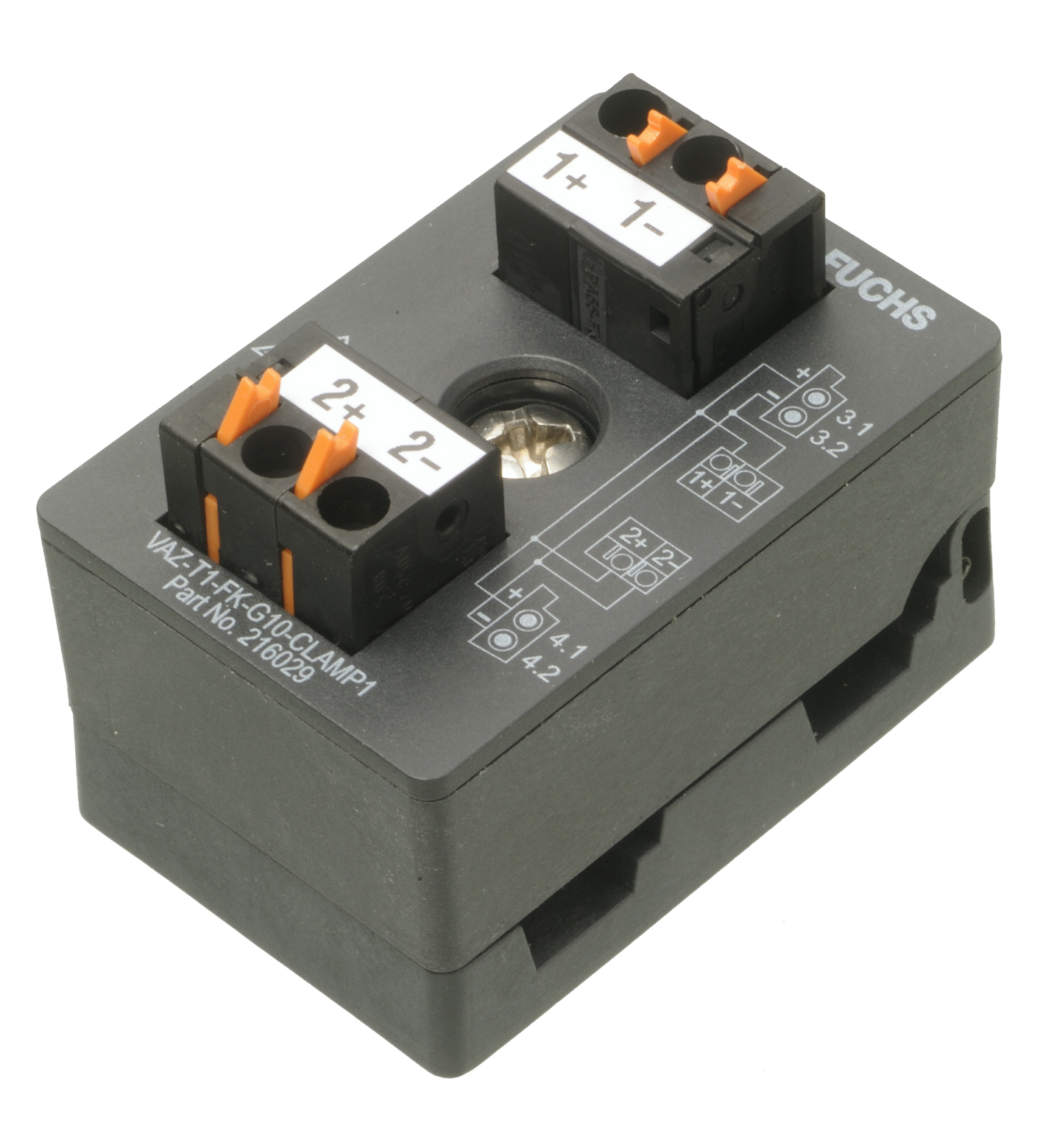

VAZ-T1-FK-G10-CLAMP1

AS-Interface splitter box. Splitter box G10, 2 x AS-Interface to 2 double terminals. Construction type: Spring terminalflat cable terminals. Rated operating voltage: ≤ 60 V PELV. Rated operating curre...

AS-Interface splitter box. Splitter box G10, 2 x AS-Interface to 2 double terminals. Construction type: Spring terminalflat cable terminals. Rated operating voltage: ≤ 60 V PELV. Rated operating current: ≤ 8 A. Protection class: III. Surge protection: overvoltage category III. Standard conformity: . Degree of protectionEN 60529:2000: . Degree of protection: EN 60529:2000. UL approval: cULus Listed, Type 1 enclosure. Applicationfor use in NFPA 79 applicationsMaximum permissible operating voltagemax. 32 VMaximum permissible ambient temperaturemax. 55 °C (max. 131 °F): . Application: for use in NFPA 79 applications. Maximum permissible operating voltage: max. 32 V. Maximum permissible ambient temperature: max. 55 °C (max. 131 °F). UL File Number: E223772. Ambient temperature: -25 ... 75 °C (-13 ... 167 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Pollution degree: 2. Degree of protection: IP20. Connection: Flat cable: cable piercing method Spring terminal, max. 1.5 mm2. Material: . ContactsCuSn / AuHousingPBT PCMounting screwStainless steel 1.4305 / AISI 303: . Contacts: CuSn / Au. Housing: PBT PC. Mounting screw: Stainless steel 1.4305 / AISI 303. Mass: 40 g. Tightening torque, fastening screws: 1.65 Nm. Dimensions: . Height22 mmWidth27.7 mmLength40.5 mm: . Height: 22 mm. Width: 27.7 mm. Length: 40.5 mm

Brand	Pepperl Fuchs
Lifecycle status	active
