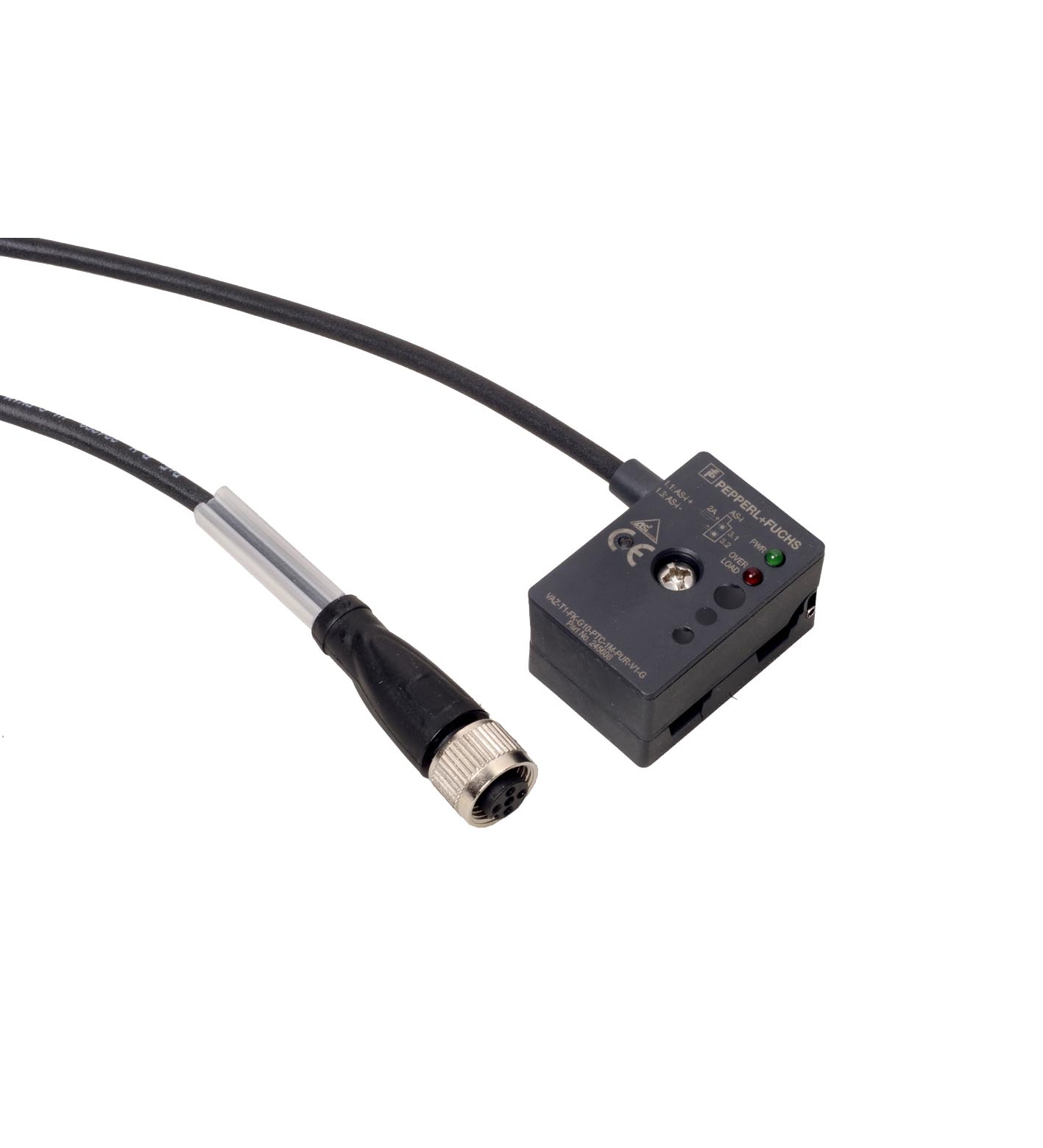

VAZ-T1-FK-G10-PTC-1M-PUR-V1-G
AS-Interface splitter box. G10 junction block, LED status indication, AS-Interface to 1x M12 round plug connector. Construction type: Socket, straightFlat cable terminal AS-Interface. UL File Number:...
AS-Interface splitter box. G10 junction block, LED status indication, AS-Interface to 1x M12 round plug connector. Construction type: Socket, straightFlat cable terminal AS-Interface. UL File Number: E223772 "For use in NFPA 79 Applications only". LED Overload: Overload display output; red LED red: overload output. LED PWR: Operating voltage LED green Green: voltage OK. Rated operating voltage: 10 ... 32 V PELV. Protection class: III. Short-circuit current: max. 40 A. Surge protection: overvoltage category III. Current loading capacity: 1.6 A (40 °C). Response delay: approx. 4 s @ 8 A. Voltage drop: 0.8 V at 2 A ; 0.3 V at 0.5 A. Directive conformity: . EMC Directive 2004/108/ECEN 61000-6-2:2005, EN 61000-6-4:2007: . EMC Directive 2004/108/EC: EN 61000-6-2:2005, EN 61000-6-4:2007. Standard conformity: . Noise immunityEN 61000-6-2:2005Emitted interferenceEN 61000-6-4:2007Degree of protectionEN 60529:2000Fieldbus standardEN 50295:1999, IEC 62026-2:2008: . Noise immunity: EN 61000-6-2:2005. Emitted interference: EN 61000-6-4:2007. Degree of protection: EN 60529:2000. Fieldbus standard: EN 50295:1999, IEC 62026-2:2008. UL approval: cULus Listed, Type 1 enclosure. Maximum permissible ambient temperaturemax. 55 °C (max. 131 °F): . Maximum permissible ambient temperature: max. 55 °C (max. 131 °F). Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Degree of protection: IP67 IP67 / IP68 / IP69K with flat cable VAZ-FK-S-*. Connection: Flat cable AS-Interface: cable piercing methodPlug connection: M12 x 1 socket (V1). Material: . ContactsCuSn / AuHousingPBT PCBodyPUR, blackCablePURMounting screwStainless steel 1.4305 / AISI 303: . Contacts: CuSn / Au. Housing: PBT PC. Body: PUR, black. Cable: PUR. Mounting screw: Stainless steel 1.4305 / AISI 303. Cable: . Sheath diameter∅4,3 mmColorblackCores2 x 0.34 mm2LengthL1 m: . Sheath diameter: ∅4,3 mm. Color: black. Cores: 2 x 0.34 mm2. Length: 1 m. Mass: 100 g. Tightening torque, fastening screws: 1.65 Nm. Tightening torque, cable gland: 0.4 Nm. Dimensions: . Height22 mmWidth27.7 mmLength40.5 mm: . Height: 22 mm. Width: 27.7 mm. Length: 40.5 mm. Note: The unused flat cable connector is closed with a seal.
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
