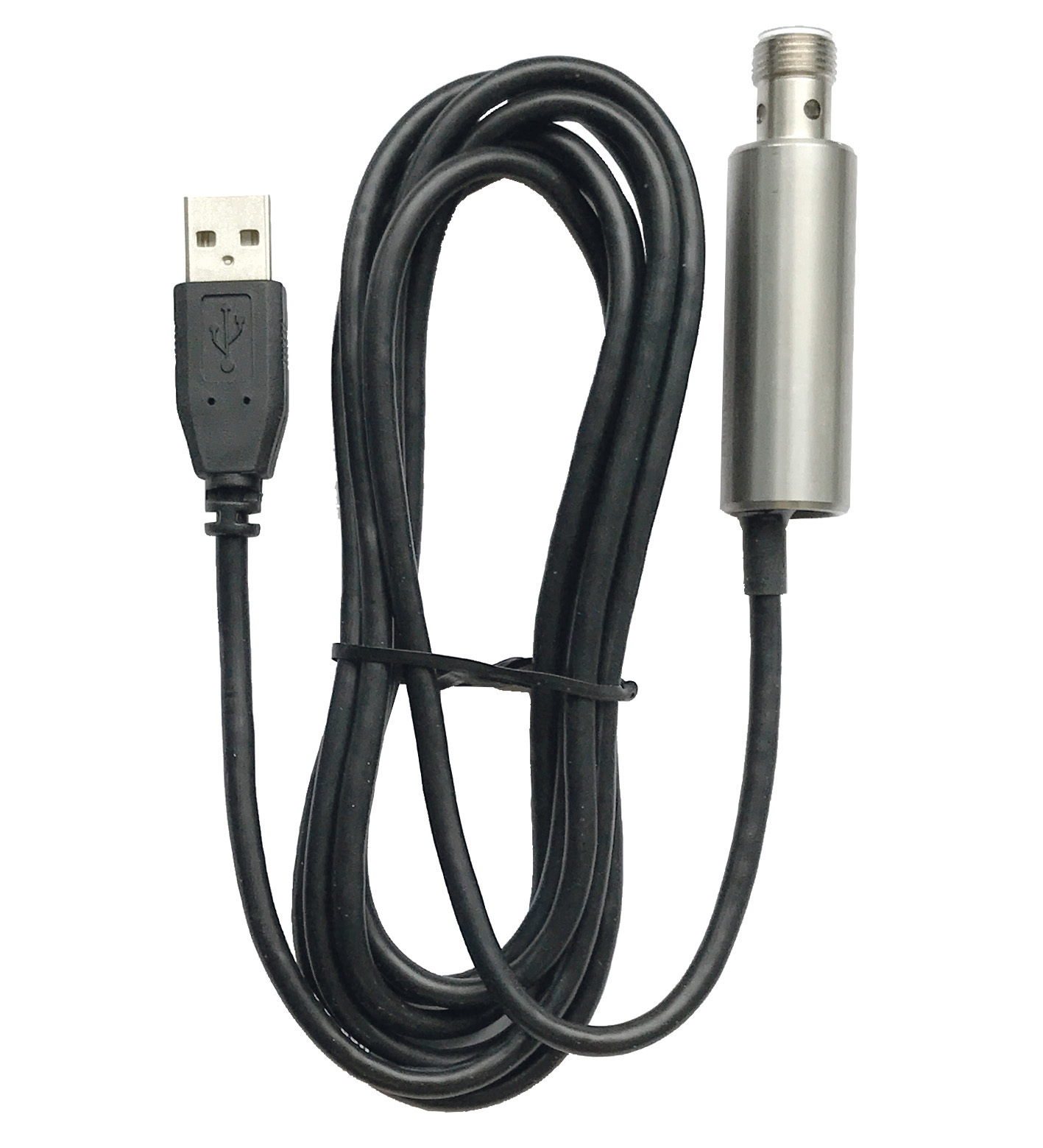

VAZ-ZPA-ANALYZER

Diagnostic adapter. Diagnostic adapter for G20 ZPA motor control module. LED PWR: Supply voltage Ue; green LED. Rated operating voltage: 5 VDC (via USB). Rated operating current: ≤ 90 mA. Input voltag...

Diagnostic adapter. Diagnostic adapter for G20 ZPA motor control module. LED PWR: Supply voltage Ue; green LED. Rated operating voltage: 5 VDC (via USB). Rated operating current: ≤ 90 mA. Input voltage: ≤ 30 V DC. Number/Type: 1 Input: PNP, galvanically isolated, potential-free (XIN). Input current: ≤ 8 mA (limited internally). Number/Type: 1 Electronic output, PNP, overload and short-circuit proof (XOUT). Supply: from Uin. Current: 10 mA. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. Degree of protection: EN 60529:2000. Emitted interference: EN 61000-6-4:2007+A1:2011. Noise immunity: EN 61326-1:2013 (industrial locations). Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -25 ... 80 °C (-13 ... 176 °F). Relative humidity: 85 % non-condensing. Climatic conditions: For indoor use only. Altitude: ≤ 2000 m above MSL. Pollution degree: 2. Degree of protection: IP65 according to EN 60529. Connection: USB: USB 2.0 Type A connector X: M12 round plug connector in accordance with EN 61076-1-101, 4-pin, connector contacts, screw lock, A-codedFemale connector: M12, 4-pin, bushing contacts, screw lock, A-coded. Mass: 110 g. Cable length: 2 m

Brand	Pepperl Fuchs
Lifecycle status	active
