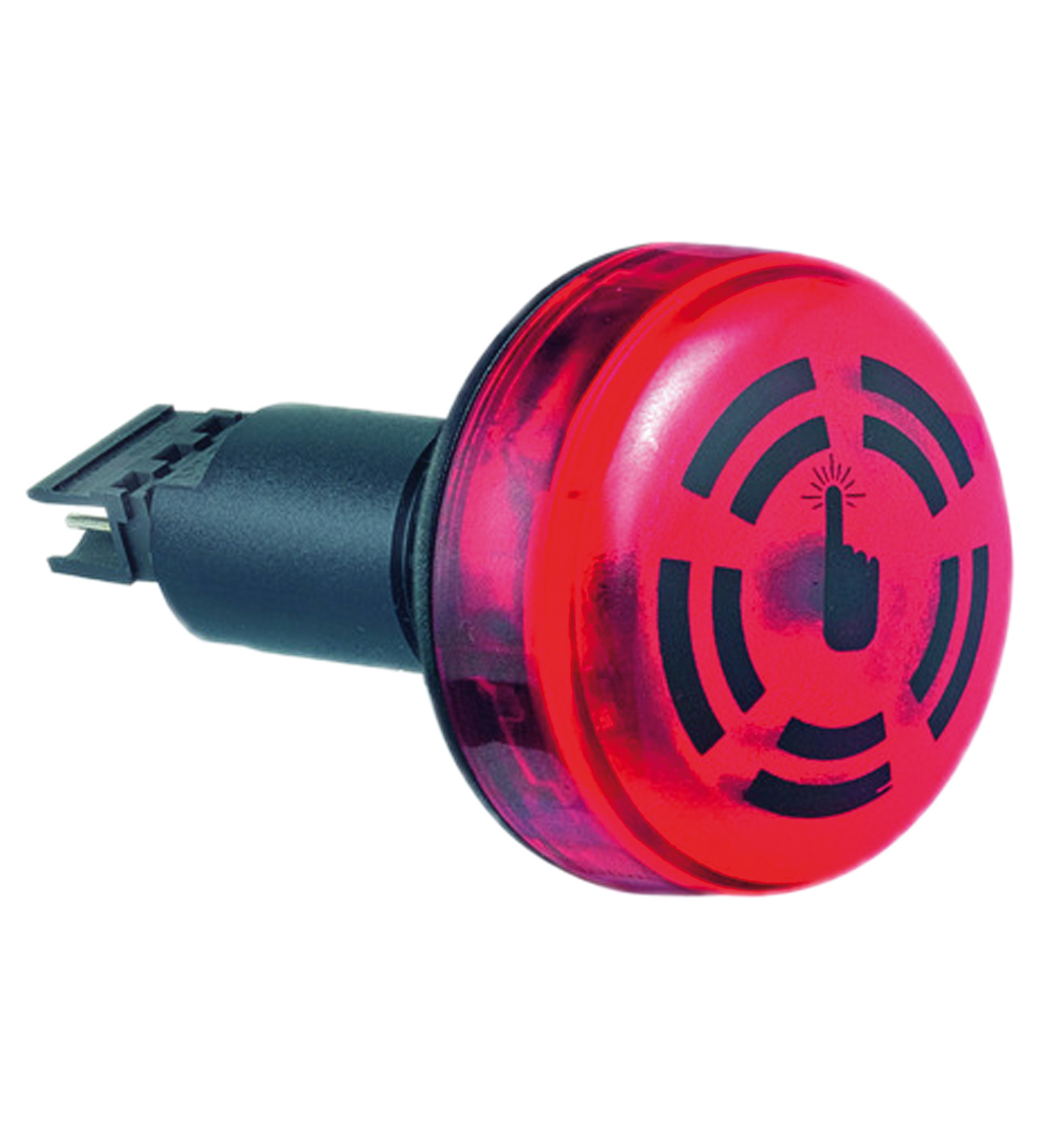

VBA-1E2A-BUZZER/LT-RD

AS-Interface buzzer element. AS-Interface buzzer element with acknowledgment. Node type: A/B node. AS-Interface specification: V3.0. Required master specification: ≥ V2.1. UL File Number: E223176. Col...

AS-Interface buzzer element. AS-Interface buzzer element with acknowledgment. Node type: A/B node. AS-Interface specification: V3.0. Required master specification: ≥ V2.1. UL File Number: E223176. Color: red. Frequency: 2.8 kHz Continuous signal. Loudness: 80 dB. LED red: active. Rated operating voltage: 30 V DC. Rated operating current: ≤ 80 mA. Inrush current: < 500 mA. Number/Type: 2 internal outputs 1 buzzer, 1 LED red. Supply: from AS-Interface. Voltage: 25 V ... 31.6 V DC. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013: . Directive 2014/30/EU: EN 62026-2:2013. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. AS-Interface: EN 62026-2:2013. Profile: S-B.A.E. IO code: B. ID code: A. ID2 code: E. Data bits (function via AS-Interface): input output. D0 - OUT1D1 - OUT2D2 IN1 -D3 IN2 -: . D0: - OUT1. D1: - OUT2. D2: IN1 -. D3: IN2 -. Parameter bits (programmable via AS-i): . P0Transparency onP1buzzer onP2for future expansionP3Acknowledgment signal for buzzer switch-off: . P0: Transparency on. P1: buzzer on. P2: for future expansion. P3: Acknowledgment signal for buzzer switch-off. Ambient temperature: -20 ... 50 °C (-4 ... 122 °F). Degree of protection: IP65. Connection: plug-in screw terminals Wire cross section: ≤1.5 mm2 fine-strand. Material: PC/ABS. Mass: 40 g. Life span: 50000 h (Acoustic: min. 5000 h)

Brand	Pepperl Fuchs
Lifecycle status	active
