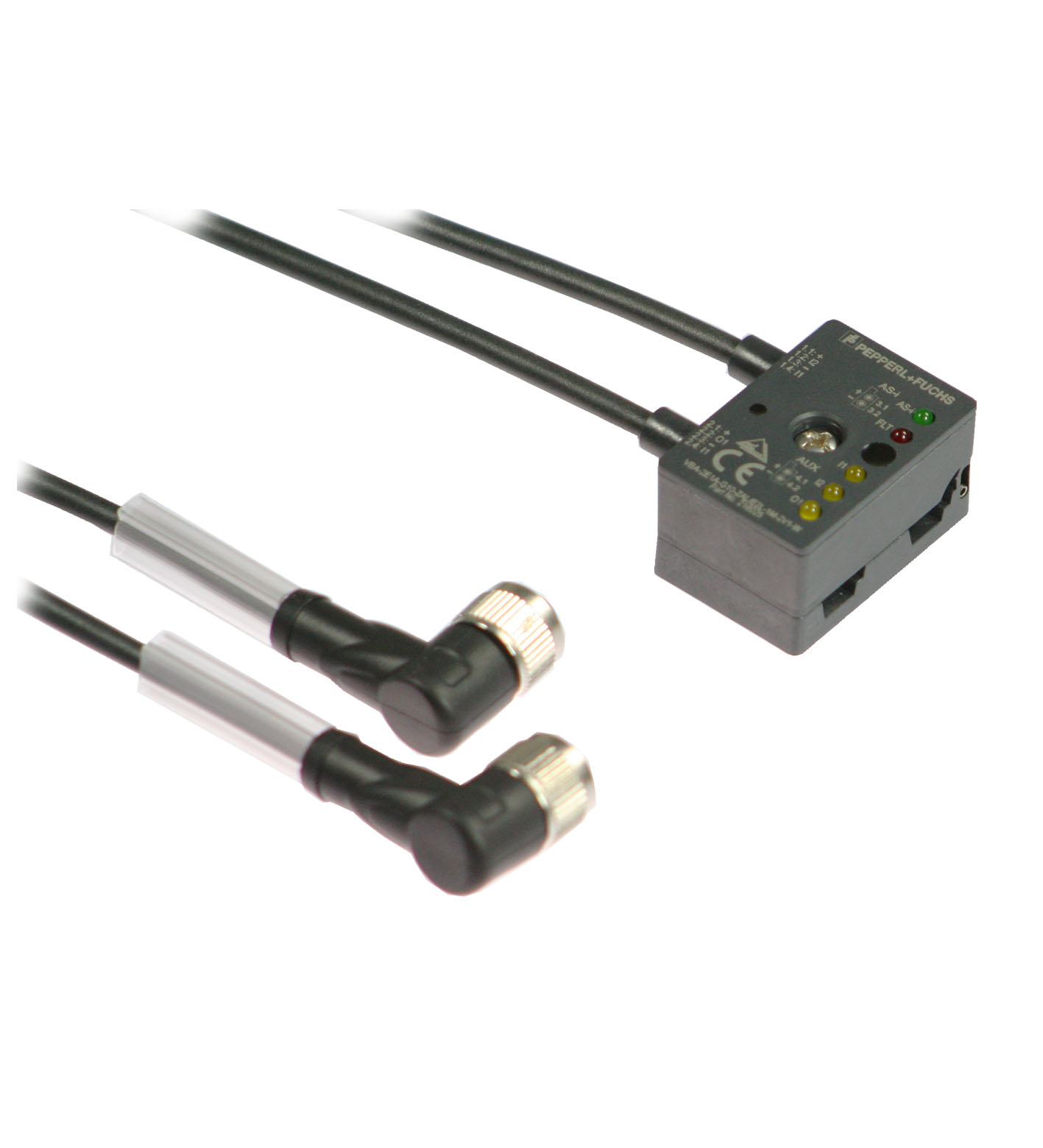

VBA-2A-G10-E2L-1M-2V1-W
AS-Interface actuator module. G10 ultra compact module, 2 outputs. Node type: A/B node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. Profile: S-8.A.E. IO code8ID codeAID1...
AS-Interface actuator module. G10 ultra compact module, 2 outputs. Node type: A/B node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. Profile: S-8.A.E. IO code8ID codeAID1 code7ID2 codeE: . IO code: 8. ID code: A. ID1 code: 7. ID2 code: E. UL File Number: E223772 "For use in NFPA 79 Applications only". LED FAULT: error display; LED redred: communication error or address is 0red flashing: overload of sensor power supply or overload of outputs or external auxiliary voltage UAUX missing. LED AS-i: AS-Interface voltage; LED green. LED OUT: Switching state (output); 2 LED yellow. Auxiliary voltage: 20 ... 30 V DC PELV. Rated operating voltage: 18.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 40 mA / max. 60 mA. Protection class: III. Surge protection: UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV). Number/Type: 2 electronic outputs, PNP, overload and short-circuit proof. Supply: from external auxiliary voltage UAUX. Voltage: ≥ (UAUX - 0.5 V). Current: 2 A per output, TB ≤ 40°C: 4 A total, 40°C < TB ≤ 70°C: 3 A total , overload and short-circuit protected. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013: . Directive 2014/30/EU: EN 62026-2:2013. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. Electrical safety: IEC 61140:2004. Emitted interference: EN 61000-6-4:2007. AS-Interface: EN 62026-2:2013. Noise immunity: EN 61000-6-2:2005 EN 62026-2:2013. UL approval: cULus Listed, Type 1 enclosure. Maximum permissible ambient temperaturemax. 65 °C (max. 149 °F): . Maximum permissible ambient temperature: max. 65 °C (max. 149 °F). Ambient temperature: -40 ... 70 °C (-40 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Shock and impact resistance: 30 g, 11 ms in 6 spatial directions 3 shocks10 g, 16 ms in 6 spatial directions 1000 shocks. Vibration resistance: 0.75 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles. Degree of protection: housing: IP67 IP67 / IP68 / IP69K with flat cable VAZ-FK-S-* M12 socket: IP67/IP68/IP69K. Connection: AS-Interface/UAUX: AS-Interface flat cable Outputs & matching connector: X1 & X2, M12 plug, 4-pin, A-coded, in accordance with IEC 61076-2-101:2012. Material: . ContactsCuSn / AuHousingPBT PCBodyPUR, blackCablePURMounting screwStainless steel 1.4305 / AISI 303: . Contacts: CuSn / Au. Housing: PBT PC. Body: PUR, black. Cable: PUR. Mounting screw: Stainless steel 1.4305 / AISI 303. Cable: . Sheath diameter∅4,3 mmColorblackCores3 x 0.34 mm2LengthL1 m: . Sheath diameter: ∅4,3 mm. Color: black. Cores: 3 x 0.34 mm2. Length: 1 m. Mass: 100 g. Tightening torque, fastening screws: 1.65 Nm. Tightening torque, cable gland: 0.4 Nm. Dimensions: . Height21.5 mmWidth27.7 mmLength40.5 mm: . Height: 21.5 mm. Width: 27.7 mm. Length: 40.5 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
