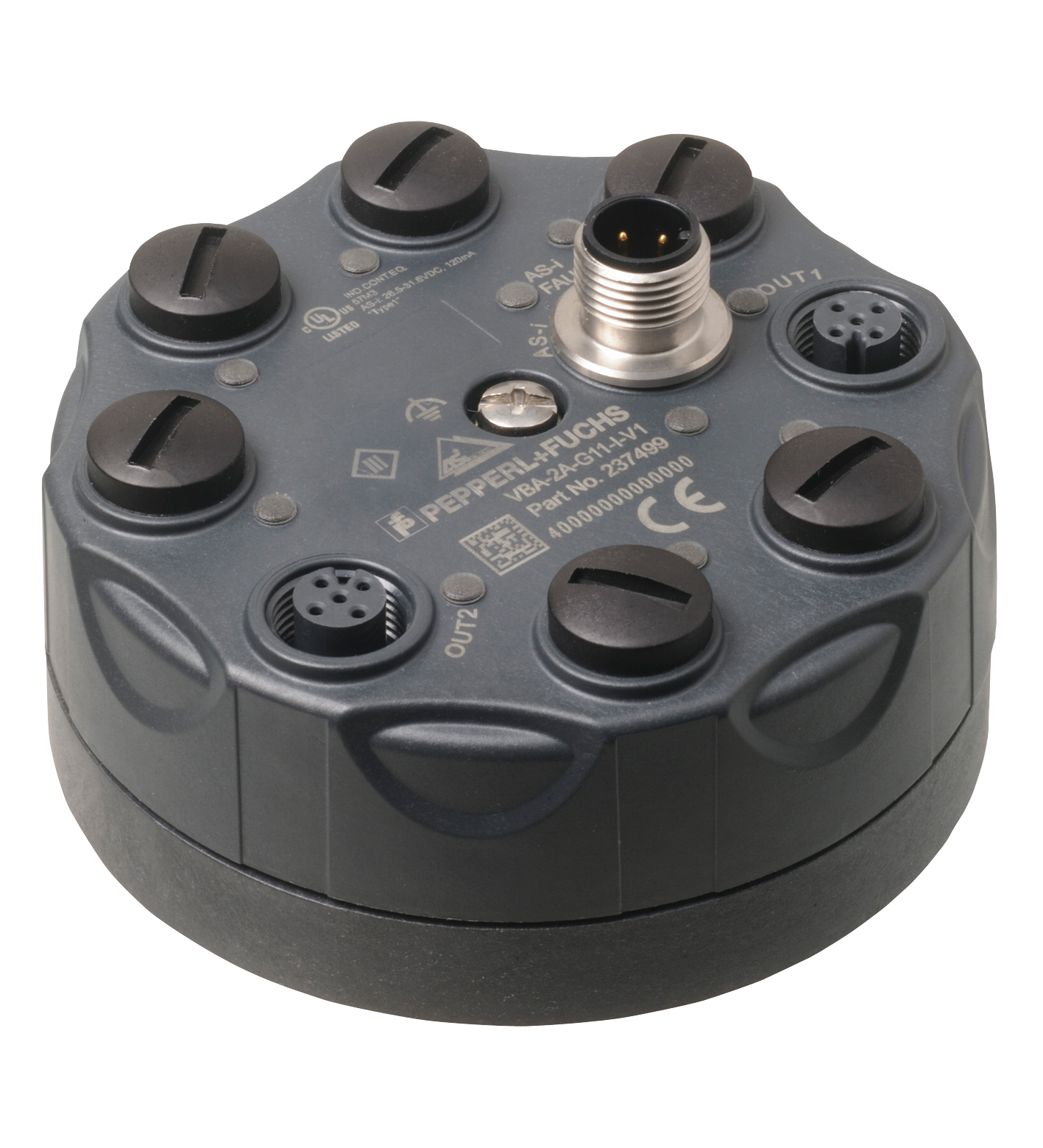

VBA-2A-G11-IL-V1

AS-Interface analog module. G11 analog module, 2 analog outputs. Node type: Standard node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. Profile: S-7.3.5. IO code7ID code3I...

AS-Interface analog module. G11 analog module, 2 analog outputs. Node type: Standard node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. Profile: S-7.3.5. IO code7ID code3ID1 codeFID2 code5: . IO code: 7. ID code: 3. ID1 code: F. ID2 code: 5. UL File Number: E223772. LED AS-i/FAULT: Status display; multi-colour LEDGreen: normal operationRed: communication faultFlashing yellow/red: address 0Flashing green/red: peripheral fault. LED ANALOG: Status of output signal; yellow LEDYellow: 0 mA ≤ I ≤ 23 mAYellow flashing: lead breakage or I > 23 mA. LED AUX: ext. auxiliary voltage UAUX; dual LED green/redgreen: voltage OKred: reverse voltage. Auxiliary voltage (output): 24 V DC ± 15 % PELV. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 35 mA. Protection class: III. Surge protection: UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV). Number/Type: 2 analog outputs (current), 0 ... 20 mA. Supply: from AUX. Load: max. 600 Ω. Current loading capacity: ≤ 700 mA (signal current + actuator supply) from external bulk power supply UAUX, overload and short-circuit protected. Resolution: 6 µA. Accuracy: 0.15 % of full-scale value. Temperature influence: 1 µA/K. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013: . Directive 2014/30/EU: EN 62026-2:2013. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. Emitted interference: EN 61000-6-4:2007. AS-Interface: EN 62026-2:2013. Noise immunity: EN 61000-6-2:2005, EN 61326-1:2006, IEC 62026-2:2008. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Relative humidity: 85 % , noncondensing. Climatic conditions: For indoor use only. Altitude: ≤ 2000 m above MSL. Pollution degree: 3. Degree of protection: IP68 / IP69K. Connection: AS-Interface/UAUX: M12 round connector Outputs: M12 round connector. Material: . HousingPBT PCMounting screwStainless steel 1.4305 / AISI 303: . Housing: PBT PC. Mounting screw: Stainless steel 1.4305 / AISI 303. Mass: 200 g. Tightening torque, housing screws: 1.8 Nm. Tightening torque, cable gland: 0.4 Nm. Dimensions: . Height35 mmDiameter85 mm: . Height: 35 mm. Diameter: 85 mm. Mounting: Mounting plate

Brand	Pepperl Fuchs
Lifecycle status	active
