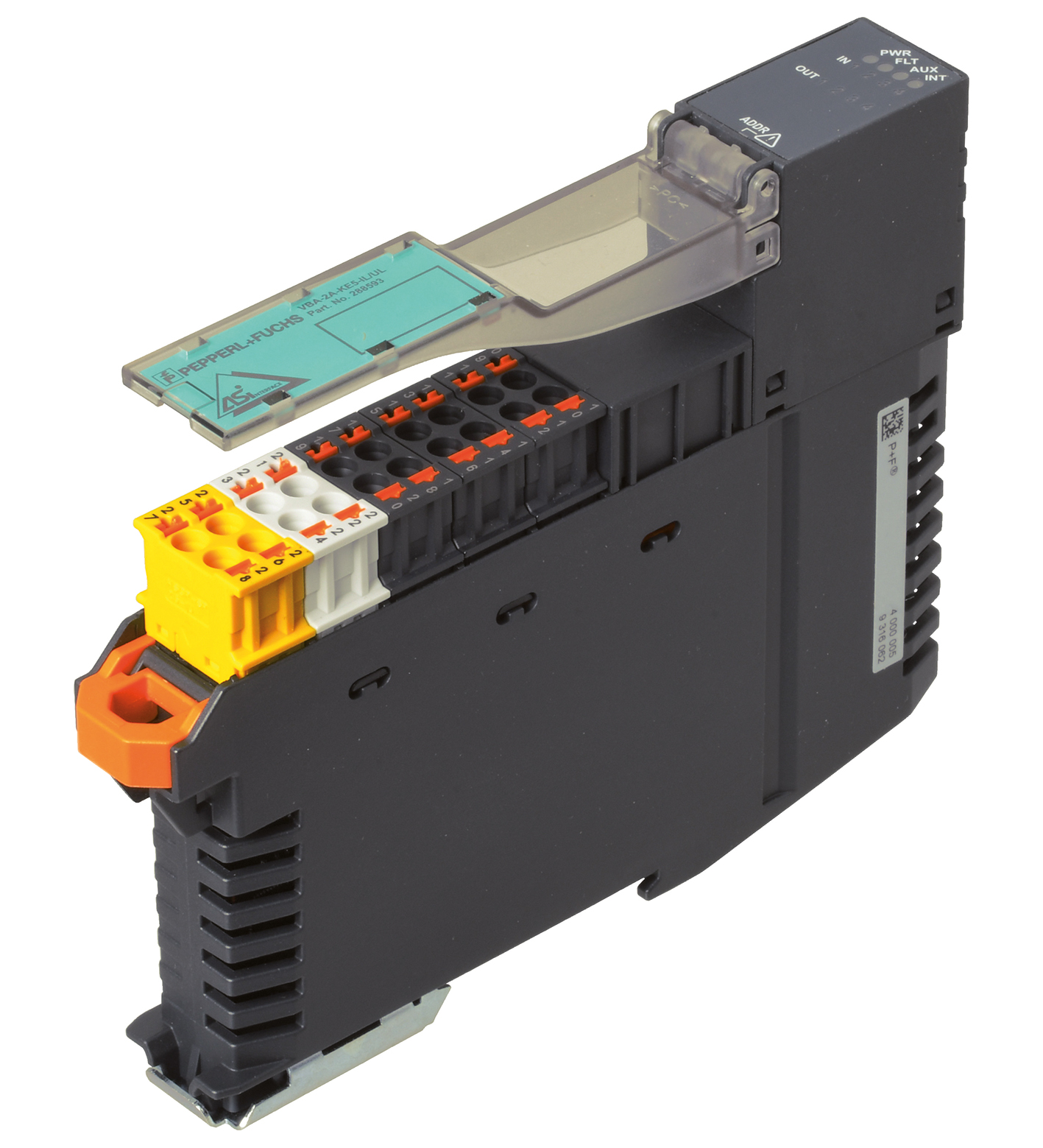

VBA-2A-KE5-IL/UL

AS-Interface analog module. Switch cabinet module, 2 analog outputs. Node type: Standard node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. UL File Number: E223772. MTBF:...

AS-Interface analog module. Switch cabinet module, 2 analog outputs. Node type: Standard node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. UL File Number: E223772. MTBF: 197 a. LED FAULT: Fault indication: red LEDRed: communication error or address is 0Red flashing: peripheral fault. LED PWR: AS-Interface voltage; green LEDGreen: voltage OKFlashing green: address 0 or peripheral error. LED AUX: ext. auxiliary voltage UAUX; dual LED green/redgreen: voltage OKred: reverse voltage. LED OUT: Status of output signal; yellow LEDYellow: output value within value rangeContinually on: current mode1.4 s on/0.1 s off: voltage modeFlashing yellow: wire break (at current output) or output value outside of value range. Auxiliary voltage (output): 24 V DC ± 15 % PELV. Rated operating voltage: 26.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 75 mA. Protection class: III. Current consumption: IAUX ≤ 650 mA. Surge protection: UAUX, Ue: overvoltage category II, safe isolated power supplies (PELV). Number/Type: Two analog outputsCurrent: 0 mA ... 20 mAVoltage: 0 V ... 10 V. Supply: From auxiliary voltage UAUX. Load: voltage output: min. 1 kΩ current output: max. 600 Ω. Current loading capacity: ≤ 600 mA (signal current + actuator power supply) from external auxiliary voltage UAUX, overload-proof and short-circuit proof. Resolution: Voltage output: 3 mVCurrent output: 6 µA. Accuracy: 0.15 % of full-scale value. Temperature influence: 1 µA/K or 0,3 mV/K. Short-circuit current: voltage output: max. 22 mA. Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013: . Directive 2014/30/EU: EN 62026-2:2013. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. Emitted interference: EN 61000-6-4:2007. AS-Interface: EN 62026-2:2013. Noise immunity: EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013. Profile: S-7.3.5. IO code: 7. ID code: 3. ID1 code: F. ID2 code: 5. Data bits (function via AS-Interface): The transfer of the data value is based on AS-Interface Profile 7.3.. Parameter bits (programmable via AS-i): function. P0Watchdog:P0=1 (default), watchdog activeP0=0, watchdog inactiveP1Output mode O1:P1=1 (default), current outputP1=0, voltage outputP2Indication of peripheral fault:P2=1 (default), peripheral fault is reportedP2=0, peripheral fault is not reportedP3Output mode O2:P3=1 (default), current outputP3=0, voltage output: . P0: Watchdog:P0=1 (default), watchdog activeP0=0, watchdog inactive. P1: Output mode O1:P1=1 (default), current outputP1=0, voltage output. P2: Indication of peripheral fault:P2=1 (default), peripheral fault is reportedP2=0, peripheral fault is not reported. P3: Output mode O2:P3=1 (default), current outputP3=0, voltage output. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Relative humidity: 85 % , noncondensing. Climatic conditions: For indoor use only. Altitude: ≤ 2000 m above MSL. Shock and impact resistance: 15 g, 11 ms in 6 spatial directions, 3 shocks 10 g, 16 ms in 6 spatial directions, 1000 shocks. Vibration resistance: 0.35 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles. Pollution degree: 2. Degree of protection: IP20. Connection: Removable push-in terminalsrated connection capacity:rigid: 0.20 mm2 ... 1.5 mm2flexible (without wire end ferrule): 0.20 mm2 ... 2.5 mm2flexible (with wire end ferrule): 0.25 mm2 ... 1.5 mm2. Material: . HousingPA 66-FR: . Housing: PA 66-FR. Mass: 110 g. Dimensions: . Height100 mmWidth18.9 mmLength124 mm: . Height: 100 mm. Width: 18.9 mm. Length: 124 mm. Mounting: DIN mounting rail. Note: Max. length of jumpers = 5 cm

Brand	Pepperl Fuchs
Lifecycle status	active
