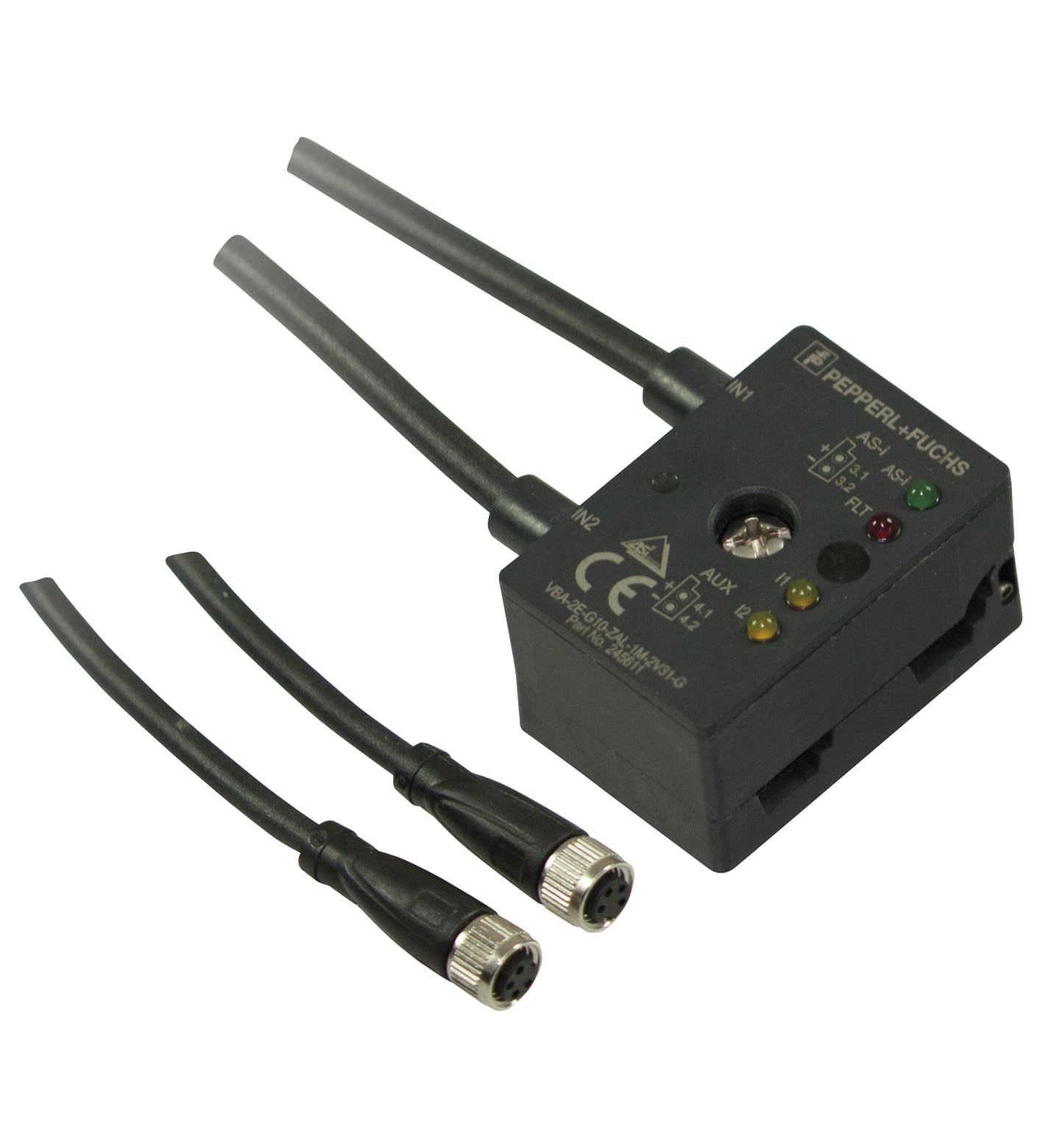

VBA-2E-G10-ZAL-1M-2V31-G

AS-Interface sensor/actuator module. G10 ultra compact module, 2 inputs. Node type: A/B node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. UL File Number: E223772 "For use...

AS-Interface sensor/actuator module. G10 ultra compact module, 2 inputs. Node type: A/B node. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. UL File Number: E223772 "For use in NFPA 79 Applications only". LED FAULT: Fault indication; red LEDRed: Communication fault or address is 0Flashing red: Sensor supply overload or no external auxiliary power UAUX. LED AS-i: AS-Interface voltage; LED green. LED IN: switching state (input); 2 LED yellow. Auxiliary voltage: 20 ... 30 V DC PELV. Rated operating voltage: 18.5 ... 31.6 V from AS-Interface. Rated operating current: ≤ 40 mA. Protection class: III. Surge protection: UAUX, Uin: Over voltage category III, safe isolated power supplies (PELV). Number/Type: 2 inputs for 2- or 3-wire sensors (PNP), DC. Supply: from external auxiliary voltage UAUX. Voltage: 20 ... 30 V. Current loading capacity: ≤ 1000 mA overload and short-circuit resistant. Input current: ≤ 9 mA (limited internally). Switching point: according to DIN EN 61131-2 (Type 2). 0 (unattenuated)≤ 3 mA1 (attenuated)≥ 5 mA: . 0 (unattenuated): ≤ 3 mA. 1 (attenuated): ≥ 5 mA. Signal delay: < 1 ms (input/AS-Interface). Electromagnetic compatibility: . Directive 2014/30/EUEN 62026-2:2013: . Directive 2014/30/EU: EN 62026-2:2013. Degree of protection: EN 60529:2000. Fieldbus standard: EN 62026-2:2013. Input: EN 61131-2:2007. Emitted interference: EN 61000-6-4:2007. AS-Interface: EN 62026-2:2013. Noise immunity: EN 61000-6-2:2005, EN 61326-1:2006, EN 62026-2:2013. Profile: S-0.A.E. IO code: 0. ID code: A. ID1 code: 7. ID2 code: E. Data bits (function via AS-Interface): InputOutput. D0 IN1 -D1 IN2 -D2 - -D3 - -: . D0: IN1 -. D1: IN2 -. D2: - -. D3: - -. Parameter bits (programmable via AS-i): function. P0not usedP1Input filterP1 = 0 input filter on, pulse suppression ≤ 2 msP1 = 1 input filter off (default settings)P2Synchronous modeP2 = 0 synchronous mode onP2 = 1 synchronous mode off (default settings)P3not used: . P0: not used. P1: Input filterP1 = 0 input filter on, pulse suppression ≤ 2 msP1 = 1 input filter off (default settings). P2: Synchronous modeP2 = 0 synchronous mode onP2 = 1 synchronous mode off (default settings). P3: not used. UL approval: cULus Listed, Type 1 enclosure. Maximum permissible ambient temperaturemax. 65 °C (max. 149 °F): . Maximum permissible ambient temperature: max. 65 °C (max. 149 °F). Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Shock and impact resistance: 30 g, 11 ms in 6 spatial directions 3 shocks10 g, 16 ms in 6 spatial directions 1000 shocks. Vibration resistance: 0.75 mm 10 ... 57 Hz , 5 g 57 ... 150 Hz, 20 cycles. Degree of protection: IP67 IP67 / IP68 / IP69K with flat cable VAZ-FK-S-*. Connection: AS-Interface, AUX: Insulation piercing technologyYellow flat cable/black flat cableInputs/outputs: M8 round plug connector in accordance with EN 61076-2-104Inputs: LF004-GS1-A (4-pin, bushing contacts, screw lock, A-coded)Matching connector: LM004-Gx1-A or similarOutputs: NF003-SS1-A (3-pin, bushing contacts, snap lock, A-coded)Matching connector: NM003-Sx1-A or similar. Material: . ContactsCuSn / AuHousingPBT PCBodyPUR, blackCablePURMounting screwStainless steel 1.4305 / AISI 303: . Contacts: CuSn / Au. Housing: PBT PC. Body: PUR, black. Cable: PUR. Mounting screw: Stainless steel 1.4305 / AISI 303. Cable: . Sheath diameter∅4,3 mmColorblackCores3 x 0.34 mm2LengthL1 m: . Sheath diameter: ∅4,3 mm. Color: black. Cores: 3 x 0.34 mm2. Length: 1 m. Mass: 100 g. Tightening torque, fastening screws: 1.65 Nm. Tightening torque, cable gland: 0.4 Nm. Dimensions: . Height21.5 mmWidth27.7 mmLength40.5 mm: . Height: 21.5 mm. Width: 27.7 mm. Length: 40.5 mm

Brand	Pepperl Fuchs
Lifecycle status	active
